德国turck传感器 进口传感器BI2-EG08K-AG41X-H1341
| 价 格： | 面议 | |
| 材料： | 聚合物 | |
| 种类： | 光电 | |
| 加工定制： | 否 | |
| 防护等级： | IP67 | |
| 材料物理性质： | 导体 | |
| 型号： | BI2-EG08K-AG41X-H1341 | |
| 材料晶体结构： | 非晶 | |
| 线性度： | BI5U-MT18M-AD4X-0.3-RS4.23、XOR（%F.S.） | |
| 迟滞： | 1（%F.S.） | |
| 重复性： | NI40U-CP40-VP4X2（%F.S.） | |
| 漂移： | BI20U-CP40-VP4X2 | |
| 分辨率： | 1 | |
| 品牌： | TURCK/图尔克 | |
| 输出信号： | 开关型 | |
| 灵敏度： | 1 | |
| 制作工艺： | 集成 |
图尔克接近开关电感式传感器BI2-EG08K-AG41X-H1341
Type BI2-EG08K-AG41X-H1341
Ident-No. 4405048
Rated operating distance Sn 2 mm
Mounting condition flush
Assured sensing range ð (0,81 x Sn) mm
Repeatability ð 2 %
Temperaturdrift 10 %
Hysteresis 3…20 %
Ambient temperature 0… 70 °C
Operating voltage 10…65VDC
Residual ripple ð 10 % Uss
DC rated operational current ð 100 mA
Residual current ð 0.8 mA
Rated insulation voltage ð 0.5 kV
Short-circuit protection yes/ cyclic
Voltage drop at Ie ð 5 V
Smallest operating currentIm ð 3 mA
Switching frequency 0.01 kHz
Design threaded barrel, M12 x 1
Dimensions 64 mm
Housing material Metal, CuZn, PTFE-coated
Material active face Plastic, LCP, PTFE-coated
End cap Plastic, EPTR
Material coupling nut metal, CuZn, nickel-plated
Max. tightening torque housing nut 7 Nm
Connection Cable with connector, M12 x 1
Cable quality 5.2 mm, LifXX, PVC, 0.3 m
Cable cross section 2 x 0.34 mm2
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP68
MTTF 874 years acc. to SN 29500 (Ed. 99) 40 °C
Switching state LED yellow
相关型号：
Ni30-K40SR-VP4X2
Ni4-DSU26TC-2ADZ30X2
Ni4-DSU26TC-2AD4*2
NI2-Q6.5-AP6-0.1-FS4.4X3|S304
NI40U-CP40-VP4X2Bi20U-CA40-AP6X2-H1141 W/BS2.1 PNP
Bi20U-CA40-AP6X2-H1141/S1590
Bi20U-CA40-AP6X2-H1141/S1591
Bi20U-CA40-ADZ30X2-B1131
Bi20-CA40-ADZ30X2-B1131
Bi20U-CA40-ADZ30X2-B3131
Bi20-CA40-ADZ30X2-B3131
Bi15U-CK40-AN6X2-H1141
Bi15-CK40-AN6X2-H1141
Ni20-CK40-AN6X2-H1141
Ni25U-CK40-AN6X2-H1141
Ni35U-CK40-AN6X2-H1141
Bi15U-CK40-AP6X2-H1141
Bi15-CK40-AP6X2-H1141
Ni20-CK40-AP6X2-H1141
Ni25U-CK40-AP6X2-H1141
Ni35U-CK40-AP6X2-H1141
Bi15-CK40-VN4X2-H1141
Ni20-CK40-VN4X2-H1141
Bi15-CK40-VP4X2-H1141
Ni20-CK40-VP4X2-H1141
Ni35U-CK40-VP6X2-H1141
Bi15-CP40-AD4X
Ni20-CP40-AD4X
Bi15U-CP40-AN6X2
Bi15-CP40-AN6X2
Ni20-CP40-AN6X2
Ni25U-CP40-AN6X2
Ni40U-CP40-AN6X2
Bi15-CP40-AN6X2/S97
Bi15U-CP40-AP6X2
Bi15-CP40-AP6X2
Ni20-CP40-AP6X2
Ni25U-CP40-AP6X2
Ni40U-CP40-AP6X2
Ni50U-CP40-AP6X2
Bi15U-CP40-VN4X2
Bi15-CP40-VN4X2
Bi15-CP40-VN4X2
Bi20-CP40-VN4X2
Ni20-CP40-VN4X2
Ni35-CP40-VN4X2
Ni40U-CP40-VN4X2
Ni50U-CP40-VN4X2
Bi15U-CP40-VP4X2
Bi15-CP40-VP4X2
Bi15-CP40-VP4X2
Bi20-CP40-VP4X2
Ni20-CP40-VP4X2
Ni20-CP40-VP4X2
Ni35-CP40-VP4X2
Ni40U-CP40-VP4X2
Ni50U-CP40-VP4X2
NI75U-CP80-VP4X2
NI2-K09-0.095|0.11-BDS-2AP6X3-H1141|S34
BI2U-EGT08-AP6X-h1341
BI20U-CP40-VP4X2
BI5U-EG18SK-VP4X
BI2U-MT12E-AD4X-0.3-RS4.23|XOR
BI5U-MT18M-AD4X-0.3-RS4.23|XOR
Bi10R-W30-DAP6X-H1141
BI2-EG08K-AG41X-H1341
BI10U-MT30-AD4X-0.3-RS4.23|XOR
BI10U-MT30-AD4X-H1144
BI10U-MT30-AP6X-H1141
BI3U-MT12-AP6X-H1141
BI10-M30-AP6X/S120 7M
BI20U-CP40-VP4X2
BI5U-EG18SK-VP4X
SG 40/2
VB2-RS4.4T-1|2RK4T-0.5|0.5
WWAK4P2-3-WAS4|S398
T8.5800.ZPT0.1250.P04.4078
VB2-RS4.4T-1|2RK4T-0.5|0.5
FDNL-S1600-T
WWAK4P2-3.0-WAS4|S398
RSM-RKM579-7M
RSM57-TR2
RSM-RKC572-5M
RSM-RKM579-10M
RSM-RKM572-5M
WWAK4-10-WAS4|S90|YE
VB2-RS4.4T-1|2RK4T-0.5|0.5
VB2-RS4.4T-1|2RK4T-0.5|0.5
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 蒋先生
- 电话：021-60530584
- 传真：-
- 手机：13296033584
- QQ ：
BALLUFF巴鲁夫传感器BOS 6K-PU-1LQA-S75-C
信息内容：传感器 接近开关 光电开关 BALLUF巴鲁夫balluff代理BOS 6K-PU-1LQA-S75-C BALLUFF BES M18MI-PSC50B-S04KBALLUFF BESM12M1-PS20B-S04GBALLUFF BES516-300-S135-S4-DBALLUFF BES516-300-S163-S4-DBALLUFF BES-516-356-S4-CBALLUFF BNS819-D04-D12-100-10BALLUFF BNS819-B02-B12-61-12-3BBALLUFF BES113-356-SA6-S4BALLUFF BES516-377-E0-C-03BALLUFF BES516-211-E4-E-03BALLUFF BES516-324-EO-C-03BALLUFF BES516-325-BO-C-03BALLUFF BES516-300-S190S4BALLUFF BES516-300-S162-S4-DBALLUFF BES516-213-E4-E-03BALLUFF BES113-356-SA28-S4BALLUFF BKS-S32M-00BALLUFF BTL5-P-5500-2BALLUFF BESM12M1-PSC40B-S04GCPNP BALLUFF BES516-300-S249-S4-DBALLUFF BES516-114-SA1-05BALLUFF BES517-140-M5-HBALLUFF BES-Q082C-POS20B-BV06BALLUFF BKS-S20-4-PU-03BALLUFF BES516-325-S4-CBALLUFF BMF 307K-PS-C-2-S49-00.2BALLUFF BES516-325-S4-CBALLUFF BNS819-D2-D12-100-10BALLUFF BES516-326-S4-CBALLUFF BKS-S19-4-PU-03BALLUFF BKS-S48-10BALLUFF BES113-356-SA6-PU-03BALLUFF BES M18MI-PSC50B-S04KBALLUFF BESM12M1-PSC20B-S04GBALLUFF BES516-343-E3RBALLUFF BSW493-03L3...

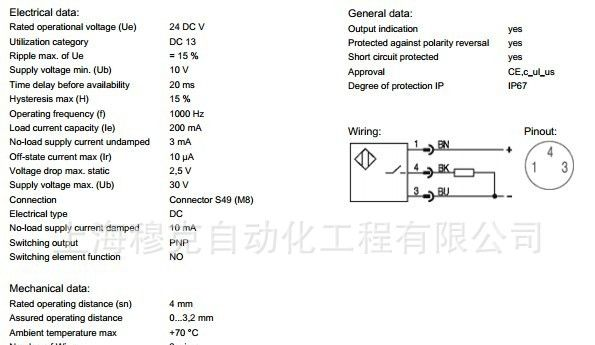

BALLUFF巴鲁夫传感器BES 516-325-G-E5-C-S49
