价 格: | 面议 | |
额定电压: | 24VDC | |
产品系列: | 782 | |
型号/规格: | 782XDX3M4L-24D | |
电流性质: | 交流 | |
额定电流: | 3A | |
品牌/商标: | MAGNECRAFT | |
触点形式: | 常开型 | |
外形尺寸: | 小型 | |
防护特征: | 塑封式 | |
触点负载: | 弱功率 | |
应用范围: | 中间 |
dzsc/19/2227/19222716.jpg
供应Magnecraft继电器
型号:782XDX3M4L-24D
业务QQ: 2543525125
主要参数:
Contact Form | : | 4PDT |
Current Rating | : | 3 A |
Current, Rating | : | 3 A |
Diameter, Mounting | : | 0.05 in. |
Dielectric Rating | : | 1500 V (RMS) (Coil to Contacts) |
Dimensions | : | 1.4 in. (Max.) L x 0.83 in. (Max.) W x 1.1 in. (Max.) H |
Function | : | Power |
Material, Contact | : | Silver Alloy, Gold Flashed |
Relay Type | : | Electro Mechanical |
Resistance, Coil | : | 650 Ohms @ 25 °C |
Standards | : | UL, CSA, CE, RoHS |
Temperature, Operating, Maximum | : | 70 °C |
Temperature, Operating, Minimum | : | -40 °C |
Termination | : | Plug-In |
Voltage, Control | : | 24 VDC |
Voltage, Rating | : | 240 VAC |
dzsc/19/2227/19222735.jpg供应Magnecraft继电器型号:785XBXC-120A业务QQ: 2543525125 主要参数:Contact Form:DPDTCurrent Rating:16 ACurrent, Rating:16 AAC⁄ADCFunction:LatchingLatch Type:MagneticMounting Type:SocketRelay Type:Electro MechanicalResistance, Coil:10000 OhmStandards:UL, CSA, CE, RoHSTermination:Plug-In BladeVoltage, Control:120 VACVoltage, Rating:277 VAC

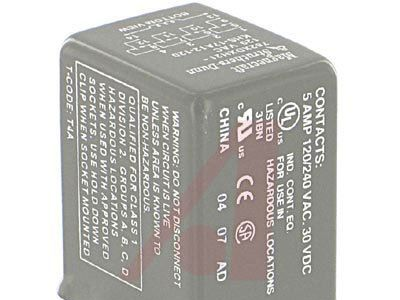

dzsc/19/2227/19222792.jpg供应Magnecraft继电器型号:782XDXH21-120A业务QQ: 2543525125 主要参数:Contact Form:4PDTCurrent Rating:5 ACurrent, Rating:5 AFunction:Hermetically SealedRelay Type:Electro MechanicalStandards:UL, CSA, CE, RoHSTermination:Plug-InVoltage, Control:120 VACVoltage, Rating:300 VAC
