供应美国Magnecraft公司继电器(782XDX1M4L-24D)
| 价 格： | 面议 | |
| 额定电压： | 24VDC | |
| 产品系列： | 782 | |
| 型号/规格： | 782XDX1M4L-24D | |
| 电流性质： | 交流 | |
| 额定电流： | 3A | |
| 品牌/商标： | MAGNECRAFT | |
| 触点形式： | 常开型 | |
| 外形尺寸： | 小型 | |
| 防护特征： | 塑封式 | |
| 触点负载： | 弱功率 | |
| 应用范围： | 中间 |
dzsc/19/2220/19222034.jpg
供应Magnecraft继电器
型号:782XDX1M4L-24D
业务QQ: 2543525125
主要参数:
| Contact Form | : | 4PDT |
| Current Rating | : | 3 A |
| Current, Rating | : | 3 A |
| Diameter, Mounting | : | 0.05 in. |
| Dielectric Rating | : | 1500 V (RMS) (Coil to Contacts) |
| Dimensions | : | 1.4 in. (Max.) L x 0.83 in. (Max.) W x 1.1 in. (Max.) H |
| Function | : | General Purpose |
| Material, Contact | : | Silver Alloy, Gold Flashed |
| Mounting Type | : | Socket |
| Power, Rating | : | 1800 VA (Make), 180 VA (Break) |
| Relay Type | : | Electro Mechanical |
| Resistance, Coil | : | 650 Ohms @ 25 °C |
| Standards | : | cULus, CSA, TUV, CE |
| Temperature, Operating, Maximum | : | 70 °C |
| Temperature, Operating, Minimum | : | -40 °C |
| Termination | : | Plug-In |
| Voltage, Control | : | 24 VDC |
| Voltage, Rating | : | 240 VAC |
- 所属城市：广东
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘小
- 电话：8602082599087
- 传真：8602082598939
- 手机：
- QQ ：
供应美国Magnecraft公司继电器(785XBXCD-12D)
信息内容：dzsc/19/2222/19222245.jpg供应Magnecraft继电器型号:785XBXCD-12D业务QQ: 2543525125 主要参数:Contact Form:DPDTCurrent Rating:16 ACurrent, Rating:16 AAC⁄ADCFunction:LatchingLatch Type:MagneticMounting Type:SocketRelay Type:Electro MechanicalResistance, Coil:88/88 OhmStandards:UL, CSA, CE, RoHSTermination:Plug-In BladeVoltage, Control:12 VDCVoltage, Rating:277 VAC

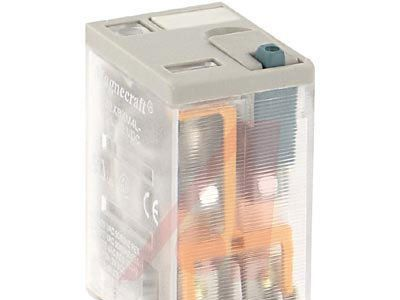

供应美国Magnecraft公司继电器(782XBXM4L-12D)
信息内容：dzsc/19/2222/19222281.jpg供应Magnecraft继电器型号:782XBXM4L-12D业务QQ: 2543525125 主要参数:Contact Form:DPDTCurrent Rating:15 ACurrent, Rating:10, 12, 15 ADiameter, Mounting:0.1 in.Dielectric Rating:2500 V (RMS) (Coil to Contacts and Pole to Pole), 1000 V (RMS) (Across Open Contacts)Dimensions:1.10 in. (Max.) L x 0.83 in. (Max.) W x 1.54 in. (Max.) HFunction:PowerMaterial, Contact:Silver Alloy Gold FlashedRelay Type:Electro MechanicalResistance, Coil:160 OhmsStandards:UL, CSA, CE, RoHSTemperature, Operating, Maximum:70 °CTemperature, Operating, Minimum:-40 °CTermination:Plug-InVoltage, Control:120 VACVoltage, Rating:300 VAC
