供应美国Magnecraft公司继电器(784XDXM4L-24D)
| 价 格： | 面议 | |
| 额定电压： | 24VDC | |
| 产品系列： | 784 | |
| 型号/规格： | 784XDXM4L-24D | |
| 电流性质： | 交流 | |
| 额定电流： | 15A | |
| 品牌/商标： | MAGNECRAFT | |
| 触点形式： | 常开型 | |
| 外形尺寸： | 小型 | |
| 防护特征： | 塑封式 | |
| 触点负载： | 弱功率 | |
| 应用范围： | 中间 |
dzsc/19/2215/19221552.jpg
供应Magnecraft继电器
型号:784XDXM4L-24D
业务QQ: 2543525125
主要参数:
| Contact Form | : | 4PDT |
| Current Rating | : | 15 A |
| Current, Rating | : | 12, 15 A |
| Dimensions | : | 1.60 in. L (Max.) x 1.10 in. H (Max.) |
| Function | : | Power |
| Relay Type | : | Electro Mechanical |
| Resistance, Coil | : | 388 Ohms |
| Standards | : | UL, CSA, CE, RoHS |
| Termination | : | Plug-In |
| Voltage, Control | : | 24 VDC |
| Voltage, Rating | : | 300 VAC |
- 所属城市：广东
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘小
- 电话：8602082599087
- 传真：8602082598939
- 手机：
- QQ ：

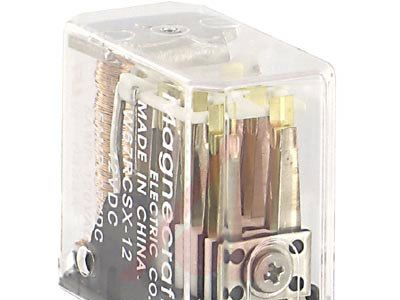

供应美国Magnecraft公司继电器(W67RCSX-12)
信息内容：dzsc/19/2215/19221563.jpg供应Magnecraft继电器型号: W67RCSX-12业务QQ: 2543525125 主要参数:Contact Form:6PDTCurrent Rating:5 ACurrent, Rating:5 ADiameter, Mounting:1.5 in. (± 0.5 in.)Dielectric Rating:1500 V (RMS) (Coil to Contacts), 1000 V (RMS) (Across Open Contacts, Pole to Pole, Contacts to Frame)Dimensions:1.374 in. L x 0.73 in. W (Max.)Function:PowerMaterial, Contact:Silver AlloyMounting Type:SocketPower, Rating:0.5 WRelay Type:Electro MechanicalResistance, Coil:90 OhmsStandards:cULusTemperature, Operating, Maximum:60 °CTemperature, Operating, Minimum:-40 °CTermination:Plug-InVoltage, Control:12 VDCVoltage, Rating:240 VAC

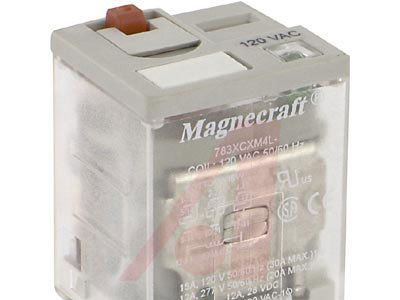

供应美国Magnecraft公司继电器(783XCXM4L-120A)
信息内容：dzsc/19/2216/19221600.jpg供应Magnecraft继电器型号:783XCXM4L-120A业务QQ: 2543525125 主要参数:Contact Form:3PDTCurrent Rating:15 ACurrent, Rating:15 ADielectric Rating:2500 V (RMS) (Pole to Pole and Coil to Contacts), 1000 V (RMS) (Across Open Contacts)Dimensions:1.10 in. (Max.) L x 1.21 in. W x 1.54 in. (Max.) HFunction:PowerMaterial, Contact:Silver Alloy Gold FlashedRelay Type:Electro MechanicalResistance, Coil:2770 OhmsStandards:UL, CSA, CE, RoHSTemperature, Operating, Maximum:70 °CTemperature, Operating, Minimum:-40 °CTermination:Plug-InVoltage, Control:120 VACVoltage, Rating:300 VAC
