供应美国Magnecraft公司继电器(782XDX2M4L-12D)
| 价 格： | 面议 | |
| 额定电压： | 12VDC | |
| 产品系列： | 782 | |
| 型号/规格： | 782XDX2M4L-12D | |
| 电流性质： | 交流 | |
| 额定电流： | 10A | |
| 品牌/商标： | MAGNECRAFT | |
| 触点形式： | 常开型 | |
| 外形尺寸： | 小型 | |
| 防护特征： | 塑封式 | |
| 触点负载： | 弱功率 | |
| 应用范围： | 中间 |
dzsc/19/2205/19220532.jpg
供应Magnecraft继电器
型号:782XDX2M4L-12D
业务QQ: 2543525125
主要参数:
| Item | Relay | |
| Type | Plug-In | |
| Contact Form | 4PDT | |
| Pins | 14 | |
| Base Type | Square | |
| Socket | 70-461-1, 70-782D14-1 | |
| Number of Contacts | 4 | |
| Contact Amp Rating (Resistive) | 10 | |
| Contact Material | Silver Alloy | |
| HP @ 120V | 1/3 | |
| HP @ 240V | 1 | |
| Coil Volts | 12VDC | |
| Coil VA Rating | 1.2 | |
| Hz | 50/60 | |
| Height (In.) | 1.54 | |
| Width (In.) | 0.83 | |
| Depth (In.) | 1.1 | |
| Features | LED & Button | |
| Weight | 0.1 | |
| Standards | cULus, cURus, CSA & CE |
- 所属城市：广东
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘小
- 电话：8602082599087
- 传真：8602082598939
- 手机：
- QQ ：
供应美国Magnecraft公司继电器(782XBX2M4L-12D)
信息内容：dzsc/19/2205/19220559.jpg供应Magnecraft继电器型号:782XBX2M4L-12D业务QQ: 2543525125 主要参数:Item RelayType Plug-InContact Form DPDTPins 8Base Type SquareSocket 70-782EL8-1Number of Contacts 2Contact Amp Rating (Resistive) 10Contact Material Silver AlloyHP @ 120V 1/3HP @ 240V 1Coil Volts 12VDCCoil VA Rating 1.2Hz 50/60Height (In.) 1.54Width (In.) 0.83Depth (In.) 1.1Features LED & ButtonWeight 0.1Standards cULus, cURus, CSA & CE"

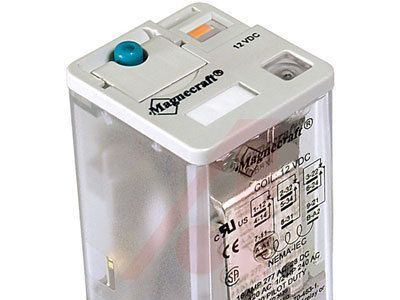

供应美国Magnecraft公司继电器(788XBXM4L-24A)
信息内容：dzsc/19/2205/19220563.jpg供应Magnecraft继电器型号:788XBXM4L-24A业务QQ: 2543525125 主要参数:Contact Form:DPDTCurrent Rating:16 ACurrent, Rating:16 ADielectric Rating:2500 V (RMS) (Coil to Contact)Dimensions:1.39 in. L x 1.37 in. W x 1.97 in. HFunction:PowerMaterial, Contact:Silver Alloy, Gold FlashedRelay Type:Electro MechanicalResistance, Coil:72 Ohms @ 25 °CStandards:UL, CSA, CE, RoHSTemperature, Operating, Maximum:50 °CTemperature, Operating, Minimum:-40 °CTermination:Plug-InVoltage, Control:24 VACVoltage, Drop, On-State:10 VACVoltage, Rating:300 VAC
