General specifications | ||
Switching element function |
PNP |
|
Rated operating distance | 40 mm | |
Installation | non-flush | |
Output polarity | DC | |
Assured operating distance | 0 ... 32.4 mm | |
Reduction factor rAl | 0.31 | |
Reduction factor rCu | 0.3 | |
Reduction factor r304 | 0.74 | |
Reduction factor rBrass | 0.39 | |
Nominal ratings | ||
Operating voltage | 10 ... 30 V DC | |
Switching frequency | 0 ... 100 Hz | |
Hysteresis | typ. 5 % | |
Reverse polarity protection | reverse polarity protected | |
Short-circuit protection | pulsing | |
Voltage drop | ≤ 2 V | |
Operating current | 0 ... 200 mA | |
Off-state current | 0 ... 0.5 mA | |
No-load supply current | ≤ 20 mA | |
Operating voltage display | LED, green | |
Indication of the switching state | LED, yellow | |
Functional safety related parameters | ||
MTTFd | 1230 a | |
Mission Time (TM) | 20 a | |
Diagnostic Coverage (DC) | 0 % | |
Approvals and certificates | ||
Protection class | II | |
Rated insulation voltage | 253 V | |
Design-impulse-voltage withstand | 4000 V | |
UL approval | cULus Listed, General Purpose | |
CSA approval | cCSAus Listed, General Purpose | |
CCC approval | Products with a maximum operating voltage of ≤36 V do not bear a CCC marking because they do not require approval. | |
Ambient conditions | ||
Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) | |
Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
Mechanical specifications | ||
Connection type | Device connector M12 x 1 , 4-pin | |
Housing material | PA | |
Sensing face | PA | |
Housing diameter | ||
Protection degree | IP69K |

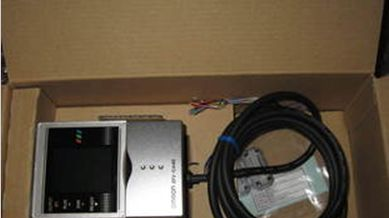

额定值/性能 项目 型号 ZFV-SC10(狭视野型) ZFV-SC50(标准型) 设定范围(L) 34mm~49mm(可变) 31mm~187mm(可变) 检测范围(H×V) 5mm×4.6mm~9mm×8.3mm(可变) 10mm×9.2mm~50mm×46mm(可变) 设定距离值和检测范围 内置镜头 焦距:f15.65 焦距:f13.47 工件照明方法 脉冲照明 工件照明光源 8个白色LED 36个白色LED 激光等级*1 1级 2级 外部照明接口 无 有 传感元件 1/3英寸CCD 快门 电子快门,快门时间:1/1,000~1/4,000 ...

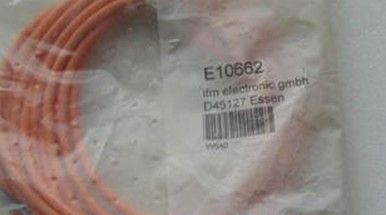

IFM流量传感器 SI1000 !另外有配套E10662和E40129 出售 流量监控器 用于适配器的紧凑型型号 接插件 系统接口: 用于适配器的内螺纹M18 x 1.5 使用范围 应用范围 液体和气体介质 介质温度 液体介质 [°C] -25...80 介质温度 气体介质 [°C] -25...80 电气数据 电气设计 DC PNP 工作电压 [V] 20...36 DC ¹) 电流损耗 [mA] < 80 反相保护 是 输出 输出功能 ...
