无锡固电ISC供应MJE4343三极管，品牌iscsemi
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | iscsemi | |
| 型号/规格： | MJE4343 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 击穿电压VCBO： | 160（V） | |
| 集电极允许电流ICM： | 16（A） | |
| 集电极耗散功率PCM： | 125（W） | |
| 截止频率fT： | 1.0（MHz） | |
| 结构： | 平面型 | |

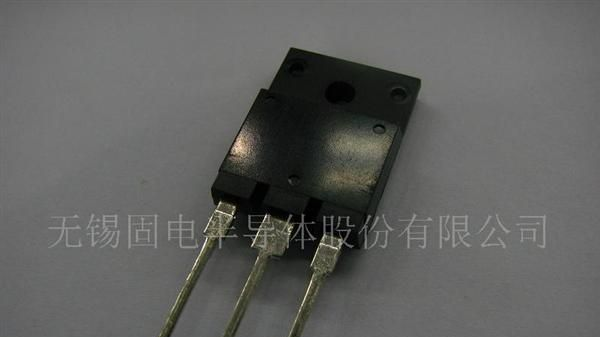

| 封装形式： | TO-3PN | |
| 封装材料： | 塑料封装 |
iscSilicon NPN Power Transistors
DESCRIPTION
·Collector-Emitter Sustaining Voltage-
: VCEO(SUS)= 100V(Min)- MJE4340
= 120V(Min)- MJE4341
= 140V(Min)- MJE4342
= 160V(Min)- MJE4343
·Low Saturation Voltage
·Complement to Type MJE4350/4351/4352/4353
APPLICATIONS
·Designed for use in high power audio amplifier applications
and high voltage switching regulator circuits.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT | |
VCBO | Collector- Base Voltage | MJE4340 | 100 | V |
MJE4341 | 120 | |||
MJE4342 | 140 | |||
MJE4343 | 160 | |||
VCEO | Collector-Emitter Voltage | MJE4340 | 100 | V |
MJE4341 | 120 | |||
MJE4342 | 140 | |||
MJE4343 | 160 | |||
VEBO | Emitter-Base Voltage | 7 | V | |
IC | Collector Current-Continuous | 16 | A | |
ICM | Collector Current-Peak | 20 | A | |
IB | Base Current-Continuous | 5 | A | |
PC | Collector Power Dissipation @ TC=25℃ | 125 | W | |
TJ | JunctionTemperature | 150 | ℃ | |
Tstg | StorageTemperature Range | -65~150 | ℃ | |
