1.27mm 排针系列连接器
| 价 格： | 0.10 | |
| 是否提供加工定制： | 否 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | 1.27mm | |
| 应用范围： | 电脑 | |
| 种类： | 排针/排母/排线 | |
| 接口类型： | AC/DC |

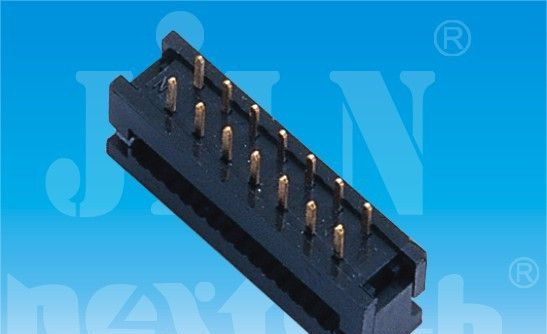

1.27mm Board Spacer Dual Row SMT
Current Rating : 1AMP
Operation Temperature :-40°C to 105°C
Contact Resistance :20mΩ Max
Insulation Resistance :1000MΩ Min
Withstanding Voltage :AC 500V
Insulator Material :Polyester(UL94V-0)
Standard: Nylon-6T
Contact Material :Brass
Contact plating :Au or Sn Over 50u″ Ni
"- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：

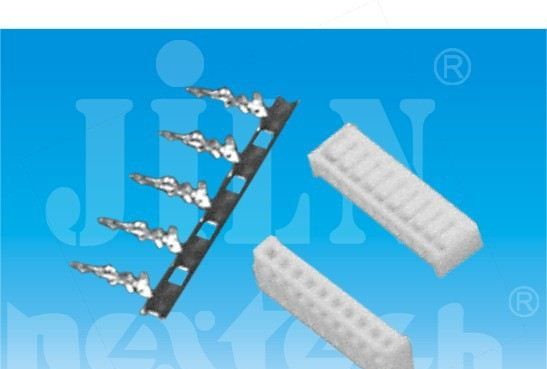

JL 2004 SERIES
信息内容：Crimp TerminalPart No. :WF2004-TP01Part Name :WF2004 Crimp TerminalContact :Phosphor BronzePlated :Tin-plated 50u″Min SPECIFICATIONSCurrent Rating :1.5AMPTemperature Range :-40°C to 105°CContact Resistance:20mΩ MaxInsulation Resistance:1000MΩ MinWithstanding Voltage :AC 500V"
2.54mm 插头连接器
信息内容：2.54mm DIP Plug Connector Current Rating : 3AMPOperation Temperature :-40°C to 105°CContact Resistance :20mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 500V Insulator Material :Polyester(UL94V-0) Standard:PBTContact Material :BrassContact plating :Au or Sn Over 50u″ Ni
