供应AMP2-487952-0 FPC连接器

价格：		面议
品牌/商标：		AMP/Tyco
型号/规格：		2-487952-0
应用范围：		通讯
种类：		FFC/FPC
接口类型：		ZIF
芯数：		20p

详细介绍
企业详情

dzsc/19/0899/19089940.jpg

Product Type Features:

Termination Method to PC Board = Surface Mount
PCB Mounting Orientation = Right Angle
PCB Mount Alignment = Without
PCB Mount Retention = With
Actuator Type = Stuffer
Shrouded = Yes
Sealed = No
Strain Relief = Without

Electrical Characteristics:

Contact Current Rating, Max (A) = 1
Operating Voltage Reference = AC
Operating Voltage (VAC) = 200
Shielded = No

Termination Related Features:

Tail Orientation = In-line

Body Related Features:

Centerline (mm [in]) = 1.00 [0.039]
Number of Positions = 20
Selectively Loaded = No
PCB Mount Retention Type = Solder Pads
Length (X-Axis) (mm [in]) = 27.92 [1.0992]
Width (Z-Axis) (mm [in]) = 6.54 [0.2575]
Profile Height (Y-Axis) (mm [in]) = 2.56 [0.1008]

Contact Related Features:

Contact Plating, Mating Area, Material = Tin-Lead
Contact Plating, Mating Area, Thickness (µm [μin]) = 0.381 [15]
Tail Plating Material = Tin-Lead
Tail Plating, Thickness (µm [μin]) = 0.381 [15]
Contact Design = Single Beam

泰科高密(北京)电子科技有限公司

公司信息未核实

所属城市：北京
[联系时请说明来自维库仪器仪表网]
联系人： 黄建辉
电话：
传真：
手机：
QQ ：

公司相关产品

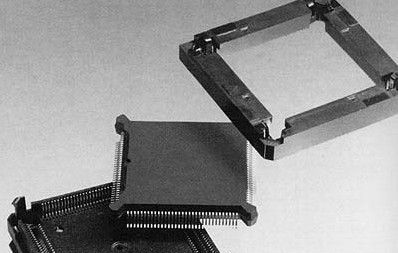

供应AMP/TYCO821949-5 PQFP-132P IC测试座
