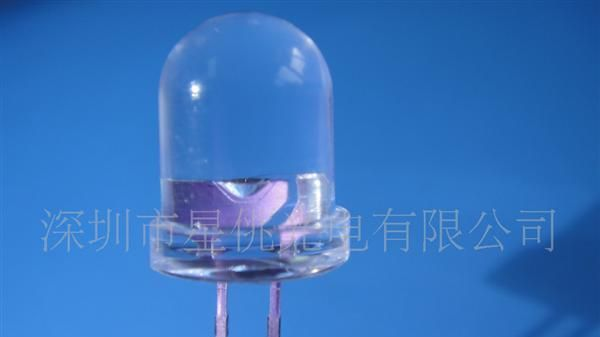

供应红外发射管（850发光型小功效16LIM）
| 价 格： | 9.00 | |
| 品牌/商标： | 盈鑫 | |
| 型号/规格： | 1IL16IRC | |
| 种类： | 发光二极管 | |
| 结构： | 平面型 | |
| 材料： | 砷铝化镓(GaAlAs) | |
| 封装形式： | 贴片型 | |
| 封装材料： | 树脂封装 | |
| 功率特性： | 大功率 | |
| 频率特性： | 超高频 | |
| 发光颜色： | 红外 | |
| LED封装： | 无色透明封装(T) | |
| 出光面特征： | 方形 | |
| 发光强度角分布： | 标准型 | |
| 正向直流电流IF： | 100M（A） | |
| 反向电压： | 5（V） |
深圳市星佻光电有限公司
江门市盈鑫光电器材厂
Shenzhen xing zhao eiectroni Co., Ltd.
Model No：8IL16IRC
Features
u High radiant intensity
u Peak wavelength:λp=850nm
u High reliability
Package Dimension:
Model No. | Chip Material | Lens Color | Source Color |
8IL16IRC | GaAlAs | Water clear | Infrared |
Notes:
Absolute Maximum Ratings at Ta=25℃
Parameter | Symbol | MAX | Unit |
Power Dissipation at(or below) 25℃free air temperature | Pd | 0.3 | W |
Peak Forward Current (Pulse width=100μs tp/T=0.01) | IFP | 100 | mA |
Continuous Forward Current | IF | 80 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -25℃to 50℃ | |
StorageTemperature Range | Tstg | -25℃to 85℃ | |
Lead Soldering Temperature (4mm From Body) | Tsol | 260℃for 5 seconds | |
Electrical Optical Characteristics at Ta=25℃
Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
Radiant Intensity | Ee | 5000 | 7000 | ----- | Mw/sr | IF=80mA |
Viewing Angle | 2θ1/2 | ---- | 4 | ----- | Deg |
|
Peak Emission Wavelength | λp | ---- | 850 | ---- | nm | IF=80mA |
Spectral Line Half-Width | Δλ | ---- | 50 | ---- | nm | IF=80mA |
Forward Voltage | VF | 1.50 | --- | 1.70 | V | IF=80mA |
Reverse Current | IR | ---- | ---- | 10 | μA | VR=5V |
