厂家直销850nm 500/1000/2000mw激光二极管（红外夜视光源）
| 价 格： | 面议 | |
| 加工定制： | 是 | |
| 产品类型： | 激光管 | |
| 是否进口： | 是 | |
| 品牌/商标： | BOB | |
| 型号/规格： | 850nm 500/1000/2000mw | |
| 材料： | 铜 | |
| 用途： | 光纤激光泵浦、红外夜视光源、医疗、照明 |
| AL850-1w | |||
Parameter | min | typ | max | unit |
Laser characteristics |
|
|
|
|
CW output power | 1.0 |
|
| W |
Mean wavelength | 847 | 852 | 857 | nm |
Spectral width(90% integrated power) |
| <2.5 |
| nm |
Threshold current |
| 0.4 | 0.6 | A |
Operating current |
| 1.0 | 1.2 | A |
Operating voltage |
| 1.9 | 2.2 | V |
Slope efficiency | 1.0 | 1.2 |
| W/A |
Conversion efficiency | 50% |
|
|
|
Recommended case temperature | -10 | 25 | 50 | ℃ |
Storage temperature | -30 |
| 80 | ℃ |
Wavelength tuning vs. temperature |
| 0.3 |
| nm/℃ |
Lifetime | 10000 |
|
| hour |
Caution：
1、Safety：Laser light emitted from any diode laser is invisible and may be harmful
to the human eye. Avoid looking directly into the diode laser aperture when the
device is in operation.
2 ESD：Always handle diode lasers with extreme care to prevent electrostatic discharge,
the primary cause of unexpected diode failure. You can prevent ESD by always
wearing wrist straps, grounding all applicable work surfaces, and following
extremely rigorous anti-static techniques when handling diode lasers.
3、Operating Considerations：Operating the diode laser outside of its maximum ratings may cause
device failure or a safety hazard. Power supplies used with the component must be employed such
that the maximum peak optical power cannot be exceeded. CW diode lasers may be damaged by
excessive drive current or switching transients. When using power
supplies, the diode laser should be connected with the main power on and the output voltage at
zero. The current should be increased slowly while monitoring the diode
laser output power and the drive current. Device degradation accelerates with increased
temperature, and therefore careful attention to minimize the case temperature
is advised. A proper heat-sink for the diode laser on a thermal radiator will greatly enhance laser
life.
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人：
- 电话：86 020 36981885
- 传真：8602036981885
- 手机：
- QQ ：

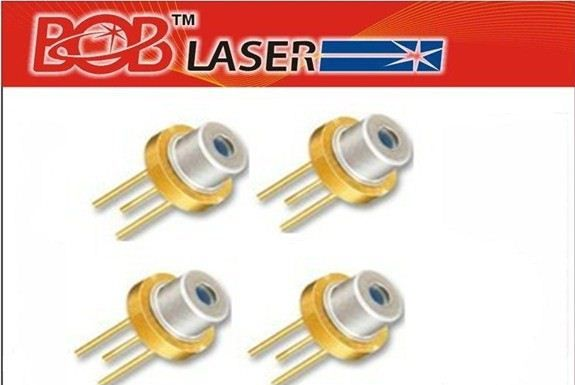

激光二极管915nm 激光二极管芯片
信息内容：特点：C-Mount,CT-Mount， TO-3 封装高工作温度8000小时高稳定寿命应用：医疗设备红外照明自由空间光通信激光打印红外光源 参数：连续波输出功率:1000 mW中心波长:830±10nm光谱宽度:2.0nm阈值电流:0.45A工作电流:1.2A工作电压:2.2 V斜度效率:0.85 W /A光束发散: 垂直- - - - - - -38度 平行- - - - - - -12度波长温度:0.3nm/℃发光面积:50*1μmdzsc/19/0768/19076808.jpgdzsc/19/0768/19076808.jpgdzsc/19/0768/19076808.jpg "

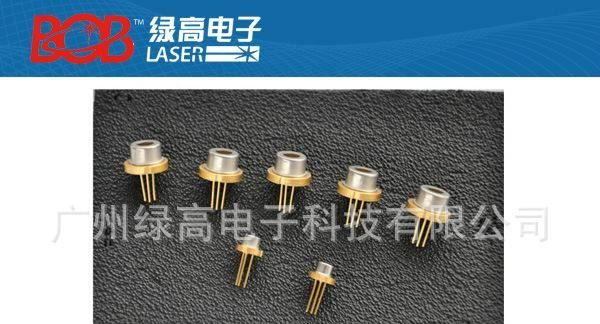

厂家直销650nm 500mw 激光二极管
信息内容：650nm500mw红光二极管 特点：TO-18 封装高工作温度8000小时高稳定手民应用：指示 激光笔医疗设备形码扫描 参数：工作电流： 850mA阈值电流：380mA工作电压： 3.0V反向电压：2.2V光斑发散度：平行----12度 垂直---22度工作温度：-10-70度储藏温度：-40-85度dzsc/19/0770/19077057.jpgdzsc/19/0770/19077057.jpgdzsc/19/0770/19077057.jpg
