SMD8045 陶瓷面晶振 6.000MHz(图)
| 价 格： | 1.20 | |
| 加工定制： | 是 | |
| 品牌： | EDK | |
| 型号： | GC82 | |
| 种类： | 谐振器 | |
| 标称频率： | 6.000（MHz） | |
| 调整频差： | 30ppm（MHz） | |
| 温度频差： | 30ppm（MHz） | |
| 总频差： | 30ppm（MHz） | |
| 负载电容： | 20（pF） | |
| 负载谐振电阻： | 40（Ω） | |
| 激励电平： | 0.01（mW） | |
| 基准温度： | 25（℃） | |
| 插入损耗： | 0（dB） | |
| 阻带衰减： | 0（dB） | |
| 输入阻抗： | 0（kΩ） | |
| 输出阻抗： | 0（kΩ） |
Electrical Specifications:
Item / Type | GC82 |
FrequencyRange | 6 ~ 80 MHz |
Frequency Tolerance (at 25℃) | ± 30 ppm, or specify |
Frequency Stability Over Operating Temperature Range | ± 50 ppm, or specify |
Operating Temperature Range | -20 ~ 70℃, or specify |
Shunt Capacitance (C0) | 5 pF Max. (3 pF typical) |
Drive Level | 1 ~ 200 μW (100 μW typical) |
Load Capacitance | Series, 6 pF~20 pF, or specify |
Aging (at 25℃) | ± 3 ppm / year Max. |
StorageTemperature Range | -40 ~ 85℃ |
Equivalent Series Resistance (ESR):
Fundamental | 3rd Overtone | ||
6 ~ 10 MHz | 80 Ω Max. | 32 ~ 60 MHz | 100 Ω Max. |
10 ~ 16 MHz | 60 Ω Max. | 60 ~ 80 MHz | 80 Ω Max. |
16 ~ 48 MHz | 40 Ω Max. | ||
dzsc/19/0734/19073459.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴瑾
- 电话：755-82913751
- 传真：755-82913751
- 手机：
- QQ ：
工厂厂家直销插件有源晶振(图)
信息内容：SOHS普通晶体振荡器（SPXO） Features:ROHS Compliant (Pb Free)Half size DIP type clock crystal oscillator unitsOptional stand-by function for output:Tri-state outputHigh precision characteristic covering up to wide frequency rangeSupply Voltage Range from 3.3V to 5.5VHigh stability,low jitter,low power consumptionElectrical Specifications:Item/TypeSOHSFrequencyRange1.000MHz ~ 80.000MHzFrequency stability±5ppm ~ ±100ppmOperating Temperature Range-10 ~ 70℃Standard, -40 ~ 85℃ExtendedInputVoltage: 3.3~ 5.5VDDInputCurrent: 10mA Max 1.000~4.000MHz,30mA Max 4.001~32.000MHz,45mA Max 32.001~80.000MHzOutputLoad: 1~10TTL or CMOS 15~50pfOutputDuty: Normal 40%~60%,Tight 45%~55%OutputRise & Fall Time: 10nS maxOutputVoltage: Logic "0" Level 0.4VDD Max, Logic "1" Level 2.4VDD MinEnable/Disable FunctionPin1: High 0.7VDD Min or OpenEnable/Disable FunctionLow 0.3VDD MaxStart-Up Time10mS MaxAging± 5ppm / year Max

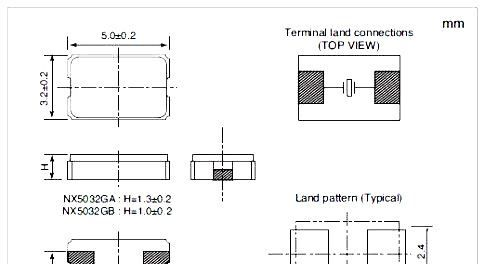

工厂GC5032-2P 陶瓷封贴片晶振 12.000MHz
信息内容：Electrical Specifications: Item / Type GC52/GC54FrequencyRange 10 ~ 80 MHzFrequency Tolerance (at 25℃) ± 30 ppm, or specifyFrequency Stability Over Operating Temperature Range± 50 ppm, or specifyOperating Temperature Range -20 ~ 70℃, or specifyShunt Capacitance (C0) 5 pF Max. (3 pF typical)Drive Level1 ~ 200 μW (100 μW typical)Load Capacitance Series, 6 pF~ 20 pF, or specifyAging (at 25℃) ± 3 ppm / year Max.StorageTemperature Range-40 ~ 85℃ Equivalent Series Resistance (ESR):Fundamental3rd Overtone10 ~ 12 MHz80 Ω Max.40 ~ 80 MHz100 Ω Max.13 ~ 54 MHz50 Ω Max. dzsc/19/0818/19081876.jpg"
