供应石英晶振TX5：5.0*3.2mm SMD
| 价 格： | 0.67 | |
| 产品品牌： | 维拓 | |
| 产品型号： | TX5 |
Quartz crystal 5.0*3.2mm SMD
TX5
Frequency Range:8.000MHz to 48.000MHz
Load Capacitance(CL):Series, 16pF, 20pF,30pF, 32pF,or specify
Frepuency Tolerance (at 25°C) : /-10ppm— /-50ppm or specify
Operating Temperature Range:-10°C— 60°C(standard),-20°C— 70°C,-40°C—85°C,or Specity
Frepuency Stability Over Operating Temperature range: /-10ppm— /-50ppm or specify
Storage Temperatue Range: -55°C to 125°C
Shunt Capacitance(Co):5.0pF Max
Drive Level(Typical):10μW—100μW
Aging @25°C1 st year(Max): /-3ppm, /-5ppm /year
Shock Resistance:Drop test of 3 times on 2mm stainless plate from 75cm height
- 所属城市： 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴娟丽
- 电话：86-755-82677582
- 传真：86-755-82679302
- 手机：
- QQ ：
供应石英晶振TX4：4.0*2.5mm SMD
信息内容：Quartz crystal 4.2*2.5mm SMD TX4 Frequency Range:12.000MHz to 50.000MHz Load Capacitance(CL):Series, 8pF, 9pF, 12pF, 18pF, 20pFor specify Frepuency Tolerance (at 25°C) : /-10ppm— /-50ppm or specify Operating Temperature Range:-10°C— 60°C(standard),-20°C— 70°C,-40°C—85°C,or Specity Frepuency Stability Over Operating Temperature range: /-10ppm— /-50ppm or specify Storage Temperatue Range: -55°C to 125°C Shunt Capacitance(Co):5.0pF Max Drive Level(Typical):10μW—100μW Aging @25°C1 st year(Max): /-3ppm/year Shock Resistance:Drop test of 3 times on 2mm stainless plate from 75cm height

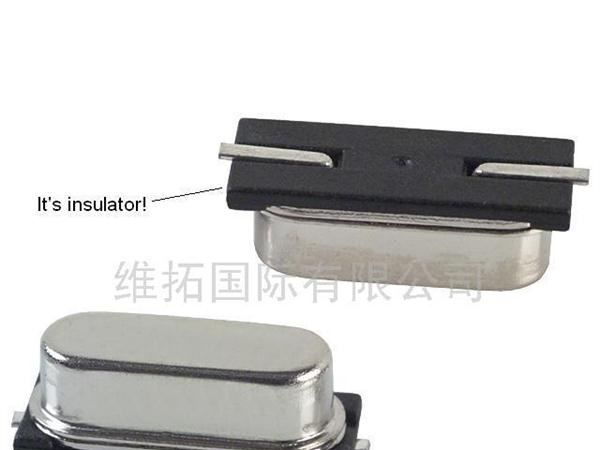

供应石英晶振WX7：HC-49/SMD
信息内容：Quartz crystal HC-49SMD WX7 Frequency Range:3.000MHz to 100.000MHz Load Capacitance(CL):Series, 16pF, 18pF,20pF,30pF,or specify Frepuency Tolerance (at 25°C) : /-30ppm at 25 /-2°C(standard) or specity Operating Temperature Range: -10°C— 60°C (standard), -20°C— 70°C,-40°C—85°C,or Specity Frepuency Stability Over Operating Temperature range: /-30ppm(Typical) or specify Storage Temperatue Range: -40°C to 85°C Shunt Capacitance(Co):7pF Max Drive Level(Typical):100μW Typical Insulation resistance:More than 500MΩAT DC100VDC Aging (at25°C ): /-5ppm /year maximum
