供应 MOLEX 4.2 2*2P+DB头 线束连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 2*2P+DB | |
| 种类： | 线束/连接线/端子线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | N（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT4201MH2*2P+DBharness | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PA46 | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 2*2P+DB | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
SCT4201Series (Molex5557/5559-Pitch4.2 Wire to Board Connector )
Current Rating: 1A AC, DC
Voltage Rating: 600V AC, DC
Temperature Range: -25 deg C ~ 85 deg C
Contact Resistance: 10m Omega Max.
Insulation Resistance: 1,000M Omega Min.
Withstanding Voltage: 1,800V AC/minute
Contact SCT4201 for details.
Housing
Part No:SCT4201MH/FH-
Poles:2*1-2*12P.
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT4201FT/MT Series Terminal
Terminal
Part No:SCT4201FT/MT
Thickness:0.20mm
Material:Phosphor bronze
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.4mm ( Max.)
Q'TY:10,000pcs/reel
Mates With SCT4201MH/FH Series Daul row Housing
Wafer ( DIP Type)
Part No: SCT4201WV/WR-2*NP
Poles:2*1-2*12P.
Material:Nylon66 UL94V2
Packing Q'TY:1000pcs/box
Mates With SCT4201MH/FH- Series Dual row Housing
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
dzsc/19/0608/19060864.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：
供应 PH1.27 5P 弯排针
信息内容：1.27mm pitch pin header right angle single row(PH1.27HXX-RA-1*NP) SPECIFICATIONS Current rating:1 AmpsInsulator resistance:5000 megohms Min.Dielectric withstanding:AC 500 VOperating Temperature: -40~ 105%%dContact material:brass/phosphor bronzeInsulator material:standard Nylon-6T UL 94V-0Finish: gold flash or Tin plated or Duplex platingMax processing temp:230%?or 30-60 seconds. (260%?or 10 seconds.PIN : SQ0.4mmpoles: 3-50pins dzsc/19/0671/19067106.jpgdzsc/19/0671/19067106.jpg"

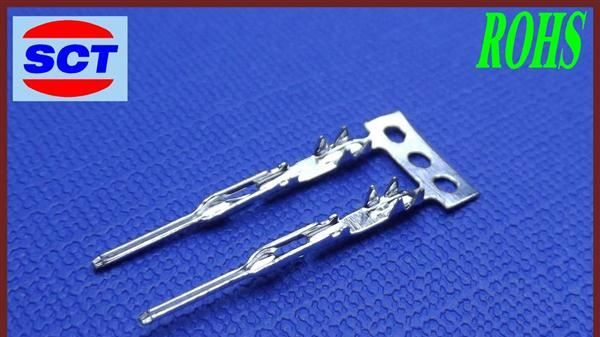

厂家供应杜邦2.54 镀半金公端子连接器
