贴片功率磁罩电感WBH125 820UH
| 价 格： | 0.20 | |
| 应用范围： | 滤波 | |
| 种类： | 电流互感器 | |
| 品牌/商标： | MOTTO | |
| 型号/规格： | 功率贴片电感 | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 单层密绕式 | |
| 导磁体性质： | 铁氧体磁芯 | |
| 磁芯形状： | 长方形 | |
| 工作频率： | 低频 | |
| 安装方式： | 贴片式 | |
| 骨架材料： | 聚苯乙烯 | |
| 品质因数Q： | 800 | |
| 电感量： | 0（mH） | |
| 额定电流： | 0（mA） | |
| 分布电容： | 0（F） |
SDRH125贴片电感贴片功率电感WBH125 , 1.2uH
MottoWBH125Series, Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc..
品名构成Product Identification | |||||||||
WBH |
| 125 |
| 1R2 |
| N | — | R | |
① |
| ② |
| ③ |
| ④ |
| ⑤ | |
① | 系列名称SERIES NAME | ||||||||
② | 尺寸DIMENSIONS | ||||||||
③ | 电感量INDUCTANCE | ||||||||
④ | 误差TOLERANCE CODE(J:±5% K:±10% L:±15% M:±20% P:±25% N:±30%) | ||||||||
⑤ | 包装方式PACKING CODE(R-TAPE B-BULK) | ||||||||
Part No | L (uH) | DCR max (mΩ) | IDC max (A) | Test Freq. (Hz) |
| 1.Inductance tested at 2.52MHZ,0.1V
Packing; Reel size:16mm Quantity:1000pcs/Reel |
WBH125-1R3N | 1.3 | 0.012 | 8.00 | 7.96MHZ | ||
WBH125-2R1N | 2.1 | 0.014 | 7.00 | 7.96MHZ | ||
WBH125-3R1N | 3.1 | 0.017 | 6.00 | 7.96MHZ | ||
WBH125-4R4N | 4.4 | 0.02 | 5.00 | 7.96MHZ | ||
WBH125-5R8N | 5.8 | 0.021 | 4.40 | 7.96MHZ | ||
WBH125-7R5N | 7.5 | 0.024 | 4.20 | 7.96MHZ | ||
WBH125-100M | 10 | 0.025 | 4.00 | 7.96MHZ | ||
WBH125-120M | 12 | 0.027 | 3.50 | 7.96MHZ | ||
WBH125-150M | 15 | 0.030 | 3.30 | 7.96MHZ | ||
WBH125-180M | 18 | 0.034 | 3.00 | 7.96MHZ | ||
WBH125-220M | 22 | 0.036 | 2.80 | 7.96MHZ | ||
WBH125-270M | 27 | 0.051 | 2.30 | 7.96MHZ |
Special inquiries besides the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804920 | 邮箱: | wjzmotto@163.com |
客服： | 陈长青 | QQ号： | 743330266 | 手机： | 13421804907 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-33693505 33693506 33693526 | 传真： | 0755- 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇清泉路金博龙工业区E栋十层 | ||||||
邮编: | 518109 | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：
SMD磁罩型功率电感WBD3D16LD270N

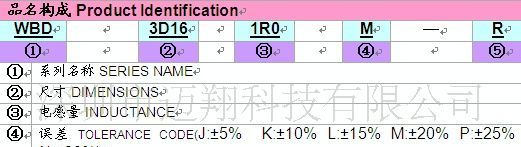

信息内容：SMD磁罩型功率电感WBD3D16LD270NMotto WBD3D16LD270N, Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/19/1169/19116928.jpgPart NoL(UH)DCR(MΩ)MAXIDCMAX(A)Z TESTFreq(MHz) 1.Inductance tested at 100KHZ,0.1V2.SRF>13MHZ measured usingagilent / HP8753D network analyzer3.Inductance drip=10% typ. at rated isat4.△T=40℃rise typ. at irms5.Operationg temperature range -40℃to 125℃6.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelWBD3D16LD3R3N3.3660.81000WBD3D16LD3R9N3.9810.751000WBD3D16LD4R7N4.7910.681000WBD3D16LD5R6N5.61150.621000WBD3D16LD6R8N6.81300.581000WBD3D16LD100N101900.461000WBD3D16LD120N122460.421000WBD3D16LD150N152720.381000WBD3D16LD180N183270.341000WBD3D16LD220N224270.311000WBD3D16LD270N274700.281000WBD3D16LD330N335600.241000WBD3D16LD390N397000.261...
