供应molex513744073 fpc连接器
| 价 格： | 面议 | |
| 型号/规格： | 513744073 | |
| 材质： | / | |
| 种类： | 端子(terminal) | |
| 应用范围： | 其他 | |
| 接口类型： | 其他 |
| Product Family | FFC/FPC Connectors |
| Series | 51374 |
| Product Name | Easy-On™ |
| Circuits (Loaded) | 40 |
| Circuits (maximum) | 40 |
| Color - Resin | Natural |
| Contact Position | Top |
| Durability (mating cycles max) | 20 |
| Entry Angle | Vertical |
| Mated Height (in) | 0.159 In |
| Mated Height (mm) | 4.05 mm |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Tin-Bismuth |
| Material - Plating Termination | Tin-Bismuth |
| Material - Resin | High Temperature Thermoplastic |
| Number of Rows | 1 |
| Orientation | Vertical |
| PC Tail Length (in) | 0.019 In |
| PC Tail Length (mm) | 0.47 mm |
| PCB Locator | No |
| PCB Retention | Yes |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface (in) | 0.020 In |
| Pitch - Mating Interface (mm) | 0.50 mm |
| Pitch - Term. Interface (in) | 0.020 In |
| Pitch - Term. Interface (mm) | 0.50 mm |
| Plating min: Mating (µin) | 40 |
| Plating min: Mating (µm) | 1 |
| Plating min: Termination (µin) | 40 |
| Plating min: Termination (µm) | 1 |
| Polarized to PCB | No |
| Stackable | No |
| Surface Mount Compatible (SMC) | N/A |
| Temperature Range - Operating | -25°C to 85°C |
| Termination Interface: Style | Surface Mount |
| Wire/Cable Type | FFC/FPC |
- 所属城市：北京
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄建辉
- 电话：
- 传真：
- 手机：
- QQ ：
供应AMP/TYCO 822064-5 PQFP132P测试座
信息内容：产品类型特性:产品类型 = 插孔包装= 塑料颜色 = 黑色数量/管 = 16管数/箱 = 45尺寸:连接器上方距离PCB高度 (mm [in]) = 9.52 [0.375]主体特性:位数= 132间距 (mm [in])= 0.64 [0.025]PQFP类型 = 标准触点特性:Contact Termination Type= Through Hole端子材料 = 磷青铜触点区域镀层 = 锡线

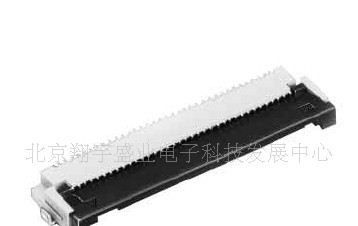

供应fH12-40s-0.5SH FPC连接器
