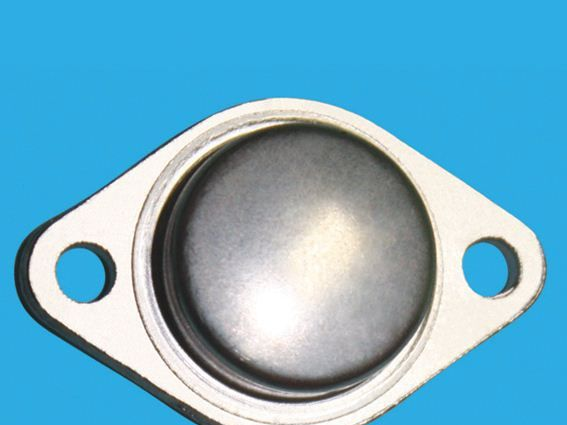

无锡固电ISC 供应2SA1002三极管
| 价 格： | 10.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SA1002 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | PNP型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·High Current Capability
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -120V(Min.)
APPLICATIONS
·Designed for audio and general purpose applications.
Absolute maximum ratings(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -120 | V |
VCEO | Collector-Emitter Voltage | -120 | V |
VEBO | Emitter-Base Voltage | -6 | V |
IC | Collector Current-Continuous | -12 | A |
PC | Collector Power Dissipation @TC=25℃ | 120 | W |
Tj | Junction Temperature | 150 | ℃ |
Tstg | Storage Temperature | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
Tj=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -30mA; IB= 0 | -120 |
|
| V |
V(BR)CBO | Collector-Base Breakdown Voltage | IC= -1mA; IE= 0 | -120 |
|
| V |
V(BR)EBO | Emitter-Base Breakdown Voltage | IE= -1mA; IC= 0 | -6 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -8A; IB= -0.8A |
|
| -3.0 | V |
ICBO | Collector Cutoff Current | VCB= -120V; IE= 0 |
|
| -50 | μA |
IEBO | Emitter Cutoff Current | VEB= -6V; IC= 0 |
|
| -50 | μA |
hFE | DC Current Gain | IC= -0.5A ; VCE= -5V | 50 |
| 200 |
|
fT | Current-Gain—Bandwidth Product | IC= -1A ; VCE= -10V | 40 |
|
| MHz |
