贴片双排排母连接器
| 价 格： | 0.10 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | 2.00mm | |
| 应用范围： | 电脑 | |
| 种类： | 排针/排母/排线 | |
| 接口类型： | AC/DC |
2.00mm Female Header Dual Row SMT
Current Rating : 1.5AMP
Operation Temperature :-40°C to 105°C
Contact Resistance :20mΩ Max
Insulation Resistance :1000MΩ Min
Withstanding Voltage :AC 500V
Insulator Material :Polyester(UL94V-0)
Standard:LCP
Contact Material :Phosphor Bronze
Contact plating :Au or Sn Over 50u″ Ni
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：
MINI USB 5P/F SMT TYPE
信息内容：Current-max[amps]: 1.0A Voltage-max[volts]:30V Withstanding Voltage:100V AC Contact Resistance[ohms]:50 millionms max Insuiation Resistance[ohms]:100Mehoms min Temperature Range:0°C to 105°C Material Contact:Phosphor Bronze Insulator:LCP UL94V-0 Shell:Brass Plating Contacts:Gold And Tin Plating Shell:Tin Plating

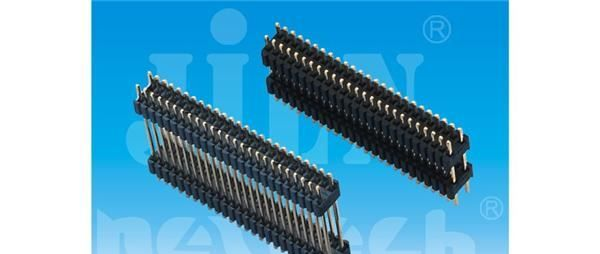

1.27*2.54mm排针系列连接器
信息内容：1.27*2.54mm Board Spacer Dual Row Straight Current Rating : 1AMPOperation Temperature:-40°C to 105°CContact Resistance :20mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 500V Insulator Material :Polyester(UL94V-0) Standard: Nylon-6TContact Material :BrassContact plating :Au or Sn Over 50u″ Ni "
