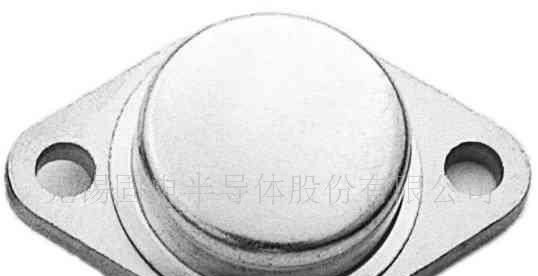

无锡固电ISC 供应2SC2792三极管
| 价 格： | 7.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SC2792 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 金属封装 |
DESCRIPTION
·High Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 800V(Min.)
·High Switching Speed
APPLICATIONS
·High voltage switching applications
·Switching regulator applications
·High speed DC-DC converter applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 850 | V |
VCEO | Collector-Emitter Voltage | 800 | V |
VEBO | Emitter-Base Voltage | 7 | V |
IC | Collector Current-Continuous | 2 | A |
ICM | Collector Current-Peak | 4 | A |
IB | Base Current-Continuous | 1 | A |
PC | Collector Power Dissipation @ TC=25℃ | 80 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= 10mA; IB= 0 | 800 |
|
| V |
V(BR)CBO | Collector-BaseBreakdownVoltage | IC= 1mA; IE= 0 | 850 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 0.5A; IB= 50mA |
|
| 1.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 0.5A; IB= 50mA |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB= 800V; IE= 0 |
|
| 0.1 | mA |
IEBO | Emitter Cutoff Current | VEB= 7V; IC= 0 |
|
| 1.0 | mA |
hFE | DC Current Gain | IC= 0.5A; VCE= 5V | 10 |
|
|
|
Switching times | ||||||
tr | Rise Time | IB1= 50mA; IB2= -0.1A RL= 800Ω; VCC≈400V PW=20μs; Duty≤1% |
|
| 1.0 | μs |
tstg | Storage Time |
|
| 4.0 | μs | |
tf | Fall Time |
|
| 1.0 | μs | |
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王燕
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：15961889150
- QQ ：
供应三极管BU104D
信息内容：供应三极管BU104D,TO-3，有意者请联系！"

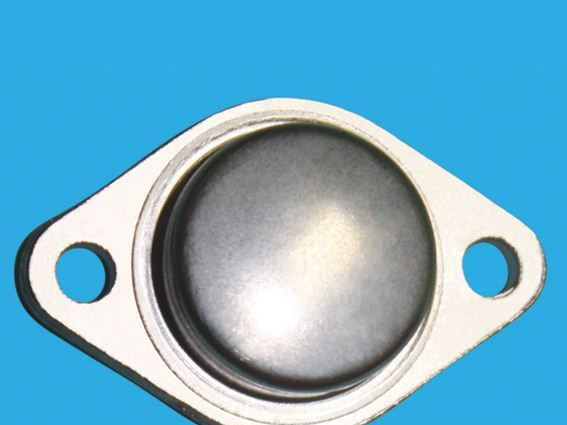

无锡固电ISC供应 BDX92 三极管
信息内容：DESCRIPTION ·High DC Current Gain- : hFE= 30-120@IC= 5A·Excellent Safe Operating Area·High Current CapabilityAPPLICATIONS·Designed for use in switching-control amplifiers, powergates,switching regulators, converters, and inverters.ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYPMAXUNITVCEO(SUS)Collector-Emitter Sustaining VoltageIC= 100mA ;IB= 080 VVCE(sat)-1Collector-Emitter Saturation VoltageIC= 5A; IB= 0.5A 0.5VVCE(sat)-2Collector-Emitter Saturation VoltageIC= 10A; IB= 1A 1.0VVBE(sat)-1Base-Emitter Saturation VoltageIC= 5A; IB= 0.5A 1.2VVBE(sat)-2Base-Emitter Saturation VoltageIC= 10A; IB= 1A 1.5VICBOCollector Cutoff CurrentVCB=80V; IE=0 1.0mAICEVCollector Cutoff CurrentVCE=80V;VBE=-1.5VVCE=80V;VBE=-1.5V;TC=150℃ 1.03.0mAIEBOEmitter Cutoff currentVEB=6V; IC=0 1.0mAhFE-1DC Current GainIC= 1A ; VCE= 2V30 hFE-2DC Current GainIC= 5A ; VCE= 5V30 120 hFE-3DC Current GainIC= 10A ; VCE= 5V20 fTCurrent...
