1005系列片式磁珠电感MGGB10005M190
| 价 格： | 0.01 | |
| 应用范围： | 滤波 | |
| 种类： | 电流互感器 | |
| 品牌/商标： | motto/迈翔 | |
| 型号/规格： | MGGB10005M190HT | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 单层密绕式 | |
| 导磁体性质： | 磁芯 | |
| 磁芯形状： | 柱形 | |
| 工作频率： | 低频 | |
| 安装方式： | 贴片式 | |
| 骨架材料： | 聚苯乙烯 | |
| 品质因数Q： | 0 | |
| 电感量： | 0（mH） | |
| 额定电流： | 0（mA） | |
| 分布电容： | 0（F） |
1005系列片式磁珠电感MGGB10005M190HT
Motto MGGB10005M190HT, Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc.
dzsc/19/0460/19046067.jpg
Part No | Impedance (Ω) | Z TEST Freq(MHz) | RDC(Ω)MAX | Ir(mA)/MAX |
| 1.Inductance tested at 100KHZ,0.1V agilent / HP8753D network analyzer
Packing; Reel size:16mm Quantity:1000pcs/Reel |
MGGB10005M050HT | 5 | 100 | 0.05 | 500 | ||
MGGB10005M070HT | 7 | 100 | 0.05 | 500 | ||
MGGB10005M110HT | 11 | 100 | 0.05 | 500 | ||
MGGB10005M190HT | 19 | 100 | 0.05 | 300 | ||
MGGB10005M310HT | 31 | 100 | 0.20 | 300 | ||
MGGB10005M600HT | 60 | 100 | 0.30 | 200 | ||
MGGB10005M800HT | 80 | 100 | .030 | 200 | ||
MGGB10005M121HT | 120 | 100 | 0.40 | 150 | ||
MGGB10005M181HT | 180 | 100 | 0.50 | 150 | ||
MGGB10005M301HT | 300 | 100 | 0.65 | 100 | ||
MGGB10005M501HT | 500 | 100 | 0.80 | 100 | ||
MGGB10005M601HT | 600 | 100 | 1.00 | 100 | ||
MGGB10005M102HT | 1000 | 100 | 1.30 | 100 |
Special inquiries besides the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804907 | 邮箱: | wjzmotto@163.com |
客服： | 胡伟 | QQ号： | 743330266 | 手机： | 13421804920 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-28146395 27185239 27185329 | 传真： | 0755-28146095 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇三联工业区联弓路九号 | ||||||
邮编: | 518109 | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：
供应工型贴片功率电感WSA43-181M
信息内容：供应工型贴片功率电感WSA43-180UHMotto WSA43-181M, Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. Part NoL(uH)DCR max(mΩ)IDC max(A)Test Freq.(Hz) 1.Inductance tested at 2.52MHZ,0.1V2.Inductance drip=10% typ. at rated isat3.△T=40℃rise typ. at irms4.Operationg temperature range -40℃to 125℃5.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelWSA43-470M478440.54100KHZWSA43- 560M569370.50100KHZWSA43-680M6811700.48100KHZWSA43-820M8212000.46100KHZWSA43-101M10015200.44100KHZWSA43-121M12018000.43100KHZWSA43-151M15020000.42100KHZWSA43-181M18032000.38100KHZWSA43-221M22034000.36100KHZWSA43-271M27039000.34100KHZWSA43-331M33053000.28100KHZWSA43-391M39059000.24100KHZWSA43-471M47068000.21100KHZWSA43-561M56085000.20100KHZWSA43-681M680100000.18100KHZWSA43-821M8201...
供应功率电感贴片电感工型电感WAS32-331K

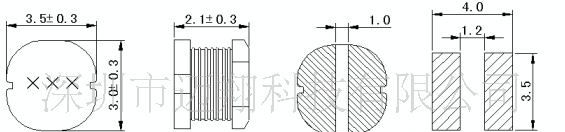

信息内容：工型贴片功率电感 Motto , Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/19/0520/19052097.jpg品名构成Product IdentificationWSA 32 1R0 M—R① ② ③ ④ ⑤①系列名称SERIES NAME②尺寸DIMENSIONS③电感量INDUCTANCE④误差TOLERANCE CODE(J:±5% K:±10% L:±15% M:±20% P:±25% N:±30%)⑤包装方式PACKING CODE(R-TAPE B-BULK) Part NoL(uH)DCR max(mΩ)IDC max(A)Test Freq.(Hz) 1.Inductance tested at 2.52MHZ,0.1V2.Inductance drip=10% typ. at rated isat3.△T=40℃rise typ. at irms4.Operationg temperature range -40℃to 125℃5.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelWAS32-100K102300.76100KHZWAS32-120K122700.685100KHZWAS32-150K153100.525100KHZWAS32-180K184100.500100KHZWAS32-220K224700.405100KHZWAS32-270K276...
