JL 2541 SERIES
| 价 格： | 0.10 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | JL 2541 SERIES | |
| 应用范围： | 电脑 | |
| 种类： | 排针/排母/排线 | |
| 接口类型： | AC/DC |
Wafer(Straight)
Part No. :WF2541-WSXXE01
Part Name :WF2541 Wafer 180°
Positions :2∽15 Circuits
Insulator :Nylon-66 UL94V-0
Contact :Brass
Plated :Tin-plated 50u″Min
Color :Beige
SPECIFICATIONS
Current Rating :3AMP
Temperature Range :-40°C to 105°C
Contact Resistance:20mΩ Max
Insulation Resistance:1000MΩ Min
Withstanding Voltage :AC 1000V
"
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：

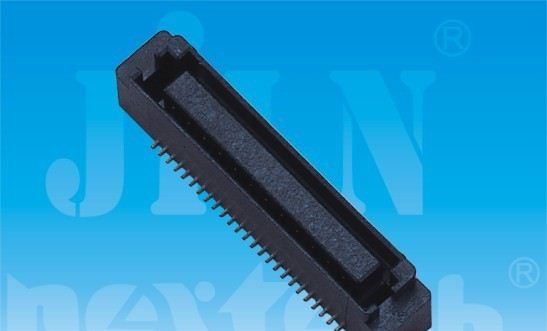

0.8 BTB 连接器
信息内容：0.8 BTB Positos 50P Electrical Rating :AC/DC 50V 0.5AInsulation Resistance: 500MΩWithstand Volt :200V AC/minuteOperating Temperature:-25°to 85° Contact:Phosphor Bronze Gold-PlatedHousing:LCP

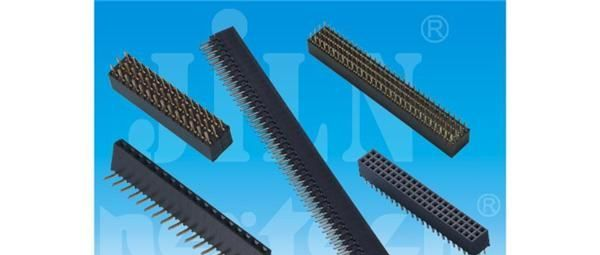

2.00mm排母连接器
信息内容：2.00mm Female Header Single/Dual/Quad Row Straight Current Rating : 1.5AMPOperation Temperature :-40°C to 105°CContact Resistance :20mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 500V Insulator Material :Polyester(UL94V-0) Standard:Nylon -66Contact Material :Phosphor BronzeContact plating :Au Over 50u″ Ni "
