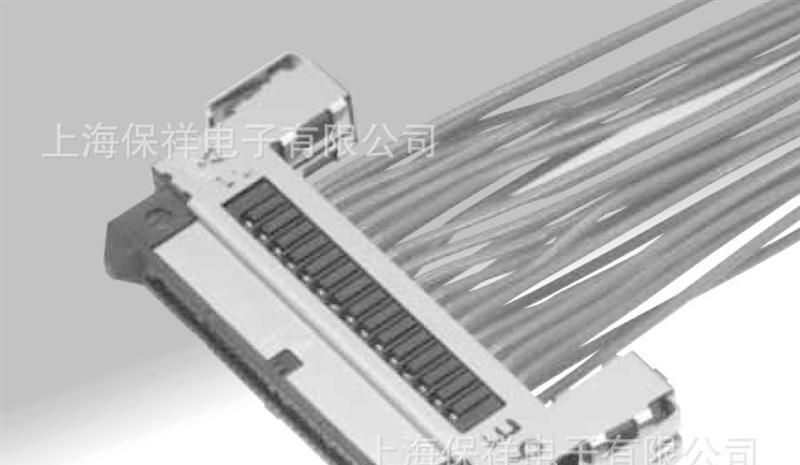

Hirose/广濑 HRS连接器 HIF5F-50DA-2.54R(71) 基板对电缆连接器
| 价 格： | 1.00 | |
| 接口类型： | ----- | |
| 接触件材质： | ----- | |
| 针数： | ----- | |
| 种类： | 板对线 | |
| 加工定制： | 否 | |
| 形状： | 条形 | |
| 线长： | -----（mm） | |
| 应用范围： | 电缆 | |
| 型号/规格： | HIF5F-50DA-2.54R(71) | |
| 特性： | 防水 | |
| 品牌/商标： | Hirose/广濑 | |
| 绝缘体材质： | ----- | |
| 制作工艺： | 冷压 | |
| 芯数： | ----- |
Hirose/广濑 HRS接插件 基板对基板连接器 连接器HIF5系列 直接插入型(支持1A电流量)带状光缆连接器Features ● Ribbon cable connectors of card receptacle type directly inserted into PCBs. ● Connected directly to the signal circuit on the PCB or mounted according to the circuit design. ● The area to install the connector body is classified into three types according to full hole mounting area, semi-hole mounting area and non-mounting area. ● Designed so that the ribbon cable can turn back within the connector molding width. ● The applicable cable is UL2651 AWG#28 flat cable.
| Characteristic | Specifications |
| No. of Positions | 20, 26, 34, 40, 50, 60 |
| Current Rating(Amps)(Max.) | 1 |
| Contact Mating Area Plating | Gold |
| Terminal Pitch (mm) | 2.54 |
| Contact Spacing (mm) | 2.54 |
| Operating Temperature Range (degrees C) | -55 to 85 |
| Termination Style | IDC |
| Connector Type | Wire |
| Contact Gender | Female |
同系列型号有：
HIF5-34D-2.54R
HIF5B-GPIN
HIF5C-20DA-2.54R(71)
HIF5C-26DA-2.54R(71)
HIF5C-50DA-2.54R(71)
HIF5C-60DA-2.54R(71)
HIF5D-34DA-2.54R(71)
HIF5D-40DA-2.54R(71)
HIF5D-50DA-2.54R(71)
HIF5D-60DA-2.54R(71)
HIF5F-50DA-2.54R(71)
圆形连接器(Circular Connectors)、
矩形连接器(Rectangular Connectors)、
同轴连接器(Coaxial Connectors)、
存储卡(Memory Card)、
标准网口连接器(Modular Connectors)、
板对板连接器(Board to Board Connectors)、
板对线连接器(Board to Wire Connectors)、
FPC/FFC连接器(FPC/FFC Connectors)、
光纤连接器(Optical Connectors and Devices)、
射频连接器(Microwave Components)
SMK产品:手机连接器;视听数码产品连接器,电脑及设备连接器,家用电器连接器.
