供应MOLEX 1.0 64P 板对板连接器 71439-0164 0714390164
| 价 格： | 1.00 | |
| 加工定制： | 否 | |
| 品牌/商标： | Molex/莫莱克斯 | |
| 型号/规格： | 71439-0164 | |
| 应用范围： | PCB | |
| 种类： | 板对板 | |
| 接口类型： | ZIF | |
| 支持卡数： | 单卡 | |
| 接触件材质： | 71439-0164 | |
| 绝缘体材质： | 71439-0164 | |
| 芯数： | 71439-0164 | |
| 针数： | 64 | |
| 线长： | 0.00（mm） |
| 产品家族 | PCB插座 |
| 系列 | 71439 |
| 应用 | 板对板, Signal |
| 注解 | 插头 |
| 概述 | PMC |
| 产品名称 | 平行板 |
| 电路数(已装入的) | 64 |
| 颜色-树脂 | 自然色 |
| 阻燃性 | 94V-0 |
| 满足欧洲Glow-Wire标准 | 否 |
| 锁定插接部位 | 是 |
| 插配高度 | 10.00mm (.394"), 8.00mm (.315"), 9.00mm (.354") |
| 材料-金属 | 磷青铜 |
| 材料-接合处电镀 | 金 |
| 材料-终端电镀 | 锡 |
| 材料-树脂 | 高温热塑型塑料 |
| 行数 | 2 |
| 方向 | 垂直的 |
| PCB 定位器 | 是 |
| PCB 保持力 | 无 |
| PC厚度：推荐 | 1.60mm (.063") |
| 包装形式 | 管状 |
| Pitch - Mating Interface | 1.00mm (.039") |
| Plating min - Mating | 0.762µm (30µ") |
| Plating min - Termination | 1.905µm (75µ") |
| PCB 极性 | 否 |
| 穿孔式表面焊接(SMC) | 无 |
| 运行温度范围 | -55°C to 85°C |
| 终端界面:类型 | 表面贴装 |
- 所属城市：广东 汕头
- [联系时请说明来自维库仪器仪表网]
- 联系人： 朱文耀
- 电话：0754-84493782
- 传真：0754-84493782
- 手机：
- QQ ：
供应JST 卧贴 0.5 4P FFC/FPC连接器 04FLH-RSM1-GB-TB(LF)(S

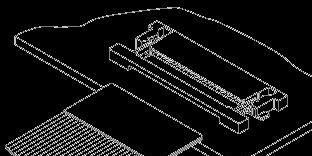

信息内容：FLH connectordzsc/19/0128/19012875.jpgdzsc/19/0128/19012875.jpg *Thin with the mounting height of only 1.2mm, yet applicable to 0.3mm thick FPCs.*In-line surface mount tails*The housing is made of heat resistant resin to allow reflow soldering.*The connector is available in either the normal or reverse configurations.Product ProfileSeriesFLH connectorCategoryFFC/FPC ConnectorsTypeZero insertion force type, SMT type FeatureLow-profileSpecificationPitch0.5 mmCurrent rating0.5AVoltage rating50VPC boardmounting directionSide entryCompliant with RoHS.(LF)(SN) as identification part number shall be displayed on a label.When ordering RoHS compliant products, please inquire to the nearestJST Sales Office, or order them with the described part number adding(LF)(SN) as the identification marking after it. 本公司经销各种各类接插件，AMP,MOLEX,JST.KYO,HRS等国际品牌，品种齐全，价格实惠。兼营各类电感器TAIYO,TOKO,NEC,PULSE,TDK,ALLIED等知名品牌。KNOWLES楼氏麦克风兼售。欢迎广大客户来电咨询。QQ3...
供应JST 卧式 12.0 2P 线对板连接器SM02(12)B-BHS-1-TB(LF)(SN)

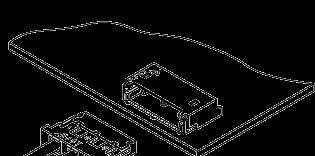

信息内容：BH connector (12.0mm pitch)dzsc/19/0148/19014860.jpgdzsc/19/0148/19014860.jpg Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters.*SMT configuration*Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with sillicone rubber.Product ProfileSeriesBH connector (12.0mm pitch)CategoryWire to Board Crimp style ConnectorsTypeDisconnectable typeCrimp style, For LCD back light lamps SpecificationPitch12.0 mmCurrent rating1.0A (AWG#22)Voltage rating600VCompliant with RoHS.(LF)(SN) as identification part number shall be displayed on a label.When ordering RoHS compliant products, please inquire to the nearestJST Sales Office, or order them with the described part number adding(LF)(SN) as the identification marking after it. 本公司经销各种各类接插件，AMP,MOLEX,JST.KYO,HRS等国际品牌，品种齐全，价格实惠。兼营各...
