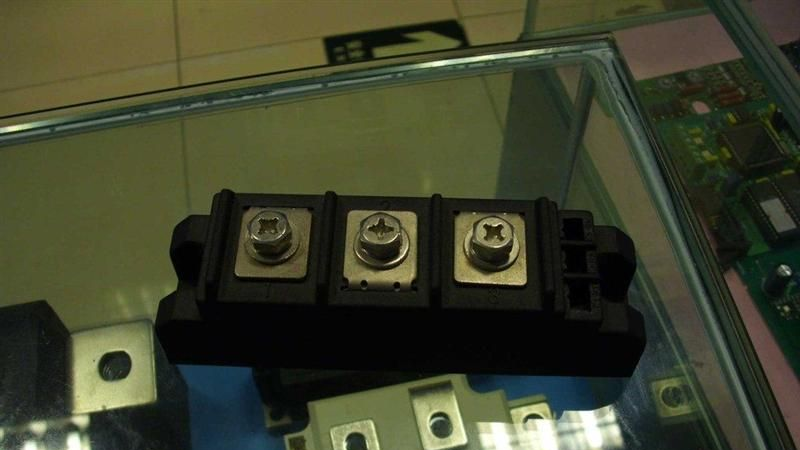

二极管模块MDA90A/800V-1600V
| 价 格： | 1.00 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | MDA90A/800V-1600V | |
| 控制方式： | 单向 | |
| 极数： | 三极 | |
| 封装材料： | 塑料封装 | |
| 封装外形： | 模块 | |
| 关断速度： | 普通 | |
| 散热功能： | 不带散热片 | |
| 功率特性： | 中功率 | |
| 频率特性： | 中频 | |
| 额定正向平均电流： | 90（A） | |
| 控制极触发电压： | 0（V） | |
| 控制极触发电流： | 0（mA） | |
| 正向重复峰值电压： | 0（V） | |
| 反向阻断峰值电压： | 0（V） |
整流二极管模块
型号 | IF(AV)@Tc | VRRM | VFM@IFM | IRRM | IF(RMS) | IFSM | I2t | VFO | rF | Rjc | Tjm | Viso | 外型 | ||
A | °C | V | V | A | mA | A | A×103 | A2s×104 | V | mΩ | °C/W | °C | V(A.C) | ||
MDx25 | 25 | 100 | 600-1800 | 1.65 | 80 | 8 | 41 | 0.65 | 0.21 | 0.8 | 9.80 | 1.300 | 150 | 2500 | M220H3 |
MDx40 | 40 | 100 | 600-1800 | 1.55 | 120 | 8 | 63 | 1.00 | 0.51 | 0.80 | 5.57 | 0.900 | 150 | 2500 | M220H3 |
MDx55 | 55 | 100 | 600-1800 | 1.45 | 170 | 8 | 86 | 1.30 | 0.86 | 0.80 | 3.47 | 0.700 | 150 | 2500 | M220H3 |
MDx55H | 55 | 100 | 1900-3000 | 1.55 | 170 | 10 | 86 | 1.30 | 0.86 | 0.85 | 3.76 | 0.680 | 150 | 3600 | M220H3 |
MDx70 | 70 | 100 | 600-1800 | 1.40 | 210 | 8 | 110 | 1.80 | 1.65 | 0.80 | 2.50 | 0.570 | 150 | 2500 | M225H3 |
MDx70H | 70 | 100 | 1900-3000 | 1.50 | 210 | 10 | 110 | 1.80 | 1.65 | 0.85 | 2.73 | 0.550 | 150 | 3600 | M225H3 |
MDx90 | 90 | 100 | 600-1800 | 1.33 | 270 | 8 | 141 | 2.30 | 2.69 | 0.80 | 1.70 | 0.470 | 150 | 2500 | M225H3 |
MDx90H | 90 | 100 | 1900-3000 | 1.43 | 270 | 10 | 141 | 2.30 | 2.69 | 0.85 | 1.88 | 0.450 | 150 | 3600 | M225H3 |
MDx110 | 110 | 100 | 600-1800 | 1.45 | 330 | 8 | 173 | 2.60 | 3.44 | 0.80 | 1.74 | 0.350 | 150 | 2500 | M225H3 |
MDx110H | 110 | 100 | 1900-3000 | 1.55 | 330 | 12 | 173 | 2.60 | 3.44 | 0.85 | 1.88 | 0.330 | 150 | 3600 | M225H3 |
MDx130 | 130 | 100 | 600-1800 | 1.38 | 410 | 12 | 212 | 3.90 | 7.75 | 0.80 | 1.18 | 0.310 | 150 | 2500 | M234H3 |
MDx130H | 130 | 100 | 1900-3000 | 1.48 | 410 | 14 | 212 | 3.90 | 7.75 | 0.85 | 1.30 | 0.300 | 150 | 3600 | M234H3 |
MDx160 | 160 | 100 | 600-1800 | 1.56 | 480 | 12 | 251 | 6.00 | 18.4 | 0.80 | 1.35 | 0.230 | 150 | 2500 | M234H3 |
MDx160H | 160 | 100 | 1900-3000 | 1.66 | 480 | 14 | 251 | 6.00 | 18.4 | 0.85 | 1.45 | 0.230 | 150 | 3600 | M234Y3 |
MDx180 | 180 | 100 | 600-1800 | 1.43 | 550 | 12 | 286 | 6.40 | 20.9 | 0.80 | 0.96 | 0.220 | 150 | 2500 | M234Y3 |
MDx180H | 180 | 100 | 1900-3000 | 1.53 | 550 | 14 | 286 | 6.40 | 20.9 | 0.85 | 1.05 | 0.210 | 150 | 3600 | M234Y3 |
MDx200 | 200 | 100 | 600-1800 | 1.38 | 600 | 12 | 314 | 8.00 | 32.6 | 0.75 | 0.88 | 0.210 | 150 | 2500 | M453Y3 |
- 所属城市：北京 北京市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 宋晓龙
- 电话：010-62146748
- 传真：010-62146748
- 手机：
- QQ ：
可控硅模块MTK500A/800V-1600V
信息内容：型号IT(AV)@TcVDRMVRRMVTM@ITMIDRMIRRMIGTVGTIHdv/dtdi/dtITSMVTOrTRjcTjmViso外型A°CVVAmAmAVmAV/μsA/μsA×103VmΩ°C/W°CV(A.C) MTx40040085600-18001.521200402003.020080010012.00.800.490.0801252500M463Y3MTx400S40055600-25001.901200402003.02008001008.500.800.800.1101252500M463S3MTx400H400851900-30001.901200402003.02008001008.500.800.800.1101253600M463Y3MTx50050085600-18001.441500402003.020080010016.00.800.340.0651252500M463Y3MTx500S50055600-25001.901500402003.020080010011.00.800.640.0871252500M46SY3MTx500H500551900-30001.901500402003.020080010011.00.800.640.0871253600M463Y3"
MFG1非绝缘型晶闸管二极管复合模块MFG00A/1600V
信息内容：1MFY。MFG非绝缘型晶闸管、二极管混合模块。型号 IT(AV)IF(AV)@TcVDRMVRRMVTM@ITMVFM@IFMIDRMIRRMIGTVGTIHdv/dtdi/dtITSMI2tVTOrTRjcTjm外型A°CVVAmAmAVmAV/μsA/μsA×103A2s×104VmΩ°C/W°C MFx505090800-18001.7015081002.51508001001.601.300.805.410.480125 MFx6060110200-6001.3518061002.51508001002.102.240.802.650.420140 MFx8080110200-6001.3524081002.51508001002.703.710.801.590.250140 MFx100100110200-6001.4030081002.51508001003.405.890.801.750.240140 MFx10010090800-18001.67300121002.51508001003.205.220.802.450.250125 MFx130130110200-6001.40390121502.52008001004.5010.320.801.100.200140 MFx15015090800-18001.67450121002.51508001005.1013.30.801.740.160125 MFx160160110200-6001.43480121502.52008001005.6016.00.801.150.150140 MFx20020090800-18001.62600201502.52008001006.5021.50.801.150.130125MFx200200110200-6001.39600151502.52008001007.0025.00.800.700.130140 MFx25025090800-18001.65750201502.52008001008.5036.80.801.020.100125 MFx30030090800-18001.58900251502.52008001009.604...
