JST连接器XHP-14

价 格: 2.00
品牌/商标:JST压着端子
型号/规格:XHP-14
应用范围:LED
种类:胶壳(housing)
接口类型:1394
支持卡数:多合一
读卡类型:CF II
形状:条形
制作工艺:冷压
特性:防潮
接触件材质:CU
绝缘体材质:尼龙
芯数:14
针数:14

优势出售JST原厂胶壳XHP-14,现货库存多,单价优惠,交货快,周期短,欢迎来电来函咨询洽谈!



XHコネクタ
製品情報
シリーズXH
カテゴリ基板対電線接続圧着コネクタ
タイプ嵌合
圧着ボックス

一般仕様
ピッチ2.5 mm
定格電流3A (AWG#22使用時)
定格電圧250V
実装方向トップ?サイド

製品説明
NHシリーズの高信頼性と汎用性を基本にしてより小型に開発された基板用コネクタで、その実装高さは9.8mmとなっています。



 dzsc/18/9934/18993465.jpg

dzsc/18/9934/18993465.jpg
XH connector
dzsc/18/9934/18993465.jpg

dzsc/18/9934/18993465.jpg
 This connector was developed based on the high reliability and versatility of our NH series connectors. The connector is very small with mounting height of 9.8mm.

Product Profile
SeriesXH connector
CategoryWire to Board Crimp style Connectors
TypeDisconnectable type
Crimp style, Shrouded header type

Specification
Pitch2.5 mm
Current rating3A (AWG#22)
Voltage rating250V
PC board
mounting direction
Top entry, Side entry


Compliant with RoHS.
(LF)(SN) as identification part number shall be displayed on a label.
When ordering RoHS compliant products, please inquire to the nearest
JST Sales Office, or order them with the described part number adding
(LF)(SN) as the identification marking after it.
"

深圳市鼎腾发电子有限公司
公司信息未核实
  • 所属城市:广东 深圳
  • [联系时请说明来自维库仪器仪表网]
  • 联系人: 朱家玉
  • 电话:755-29611756
  • 传真:755-29611756
  • 手机:
  • QQ :
公司相关产品

供应JST HRP-02-S

信息内容:

优势大量现货订货供应JST原厂压着连接器:HRP-02-S,单价优惠,交货周期快,大陆库存多,服务热情。欢迎有此需要的客户朋友来电来函咨询洽谈! HR(圧着タイプ)コネクタ製品情報シリーズHR(圧着タイプ)カテゴリ基板対電線接続圧着コネクタタイプ嵌合圧着薄型 一般仕様ピッチ2.5 mm定格電流3A (AWG#22使用時)定格電圧250V実装方向トップ?サイド製品説明基板占有面積の低減、内部配線の実装高密度化に応えた厚さ4.1mmの超薄型設計のコネクタです。dzsc/18/9981/18998158.jpg詳細情報dzsc/18/9981/18998158.jpgdzsc/18/9981/18998158.jpg dzsc/18/9981/18998158.jpgdzsc/18/9981/18998158.jpg"

详细内容>>

供应JST连接器 SZN系列

信息内容:

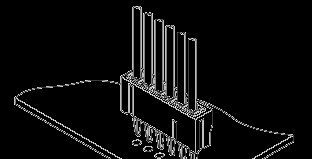

供应JST原厂连接器:SZH系列.交期快,单价优,部分库存.欢迎来电来函咨询!SZN connectordzsc/19/0012/19001232.jpgdzsc/19/0012/19001232.jpg This low-profile, board-in connector, with a mounting height of only 4.25mm and a thickness of 2.4mm, is soldered directly onto PC boards.Product ProfileSeriesSZN connectorCategoryWire to Board Crimp style ConnectorsTypeBoard-in connectorCrimp style, Board-in connector SpecificationPitch1.5 mmCurrent rating0.7A (AWG#26)Voltage rating50VPC boardmounting directionTop entryCompliant with RoHS.(LF)(SN) as identification part number shall be displayed on a label.When ordering RoHS compliant products, please inquire to the nearestJST Sales Office, or order them with the described part number adding(LF)(SN) as the identification marking after it."
