供应1.77CSTN
| 价 格： | 面议 | |
| 品牌/商标： | 中意微 | |
| 型号/规格： | ZC17720-33B2 | |
| 颜色： | 65k | |
| 显示器件： | CSTN | |
| 种类： | TN型液晶屏(模块) |
| 型号 | IC | 点阵 | 外型尺寸 | 可视区 | FPC尺寸 | PIN脚 | 连接方式 | 显示模式 | 用途 |
| ZC17720-33B2 ZC11725-33B2 | S6B33B2 | 128*160 | 34.2*46.8*2.7 | 1.8" | 18.95*32.35 | 20 25 | COG | CSTN | MP4 手机屏 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 袁秀保
- 电话：
- 传真：
- 手机：
- QQ ：

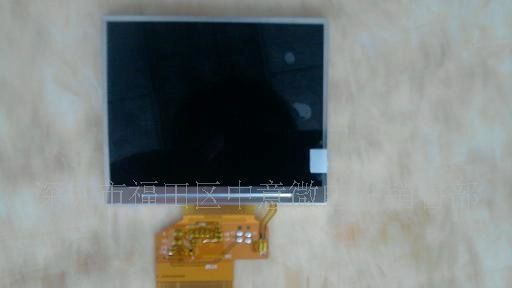

LQ035NC111
信息内容：5 Technology Specifications5.1 FeatureDisplay Mode : TFT Transmissive and positive type LCDDisplay Color : Support Resolution 16.7M colorDisplay Format : 320(W)×240(H) PixelsInput data : 24-bit parallel RGB Interface(8bitX3)Viewing Direction : 12 o’clockLCD Driver : NT39016D5.2 Mechanical SpecificationsItem Specifications UnitDimensional outline 76.9(W) ×63.9(H)×T(not1,not2) mmActive area 70.08(W) ×52.56 (H) mmPixel size 219(W) ×219(H) umDot pitch 73(W) ×219(H) umNOT1 With TP: Thickness of LCM is 4.4 mm(MAX)NOT2 NO TP: Thickness of LCM is 3.2mm(MAX)5.3 Absolute Max. RatingSymbol ValueItemMin typ MaxUnit RemarkSupply voltage VDD -0.3 3.3 5.0 V -Operating temperature TOPR -20 - 70 ℃ -Storage temperature TSTG -30 - 80 ℃ -

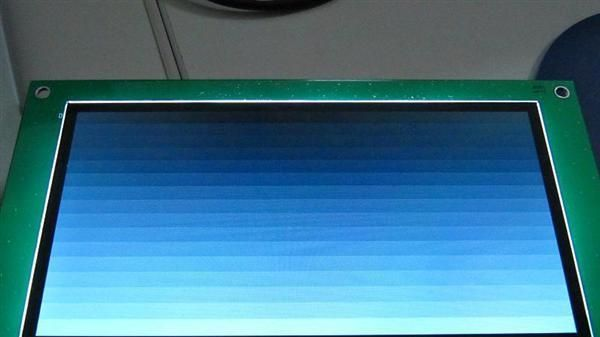

6.2寸车载显示屏
信息内容：FEATURES*Slngle-chip mono-color TFT-LCD controller & Driver*Gray scale .16 gray scale (4bpp) .4 gray scale (2bpp) .2 gray scale (1bpp)*display RAM .capacity:640*320*4=819,200 bis (6T RAM) ..1BPP mode:4 data frame are available ..2BPP mode:2 data frame are available ..4BPP mode and 160 lines or less:2 data frame are available*interface .8-bit parallel bi-directional interface with 6800 and 8080 .4-line SPI .3-line SPI*DC-VCOM Driving Methods .Dot inversion*Backllght PWM Controller*Temperature Range:-40 to 105(度）*Package Type:COG"
