电感-大电流电感 深圳插件功率电感0406-1R2M
| 价 格： | 0.01 | |
| 应用范围： | 滤波 | |
| 种类： | 电流互感器 | |
| 品牌： | MOTTO/迈翔 | |
| 型号： | LH0406-1R2M | |
| 封装形式： | 插件电感 | |
| 绕线形式： | 单层密绕式 | |
| 导磁体性质： | 磁芯 | |
| 磁芯形状： | 柱形 | |
| 工作频率： | 低频 | |
| 安装方式： | 立式 | |
| 骨架材料： | 聚苯乙烯 | |
| 品质因数Q： | 0 | |
| 电感量： | 1.2（mH） | |
| 允许误差： | 0 | |
| 感抗XL： | 0（Ω） | |
| 额定电流： | 1.20（mA） | |
| 分布电容： | 0（F） | |
| 标称电压： | 0（V） |
插件电感工字电感 LH0406-1R2M
MottoLH0406-1R2M , Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc.
Part No | L (uH) | DCR max (mΩ) | IDC max (A) | Q(MIN) |
| 1.Inductance tested at 100KHZ,0.1V agilent / HP8753D network analyzer
Packing; Reel size:12mm Quantity:1500pcs/Reel |
LH0406-1ROM | 1.0 | 100.0 | 1.40 | 84 | ||
LH0406-1R2M | 1.2 | 120.0 | 1.20 | 70 | ||
LH0406-1R5M | 1.5 | 150.0 | 1.20 | 80 | ||
LH0406-1R8M | 1.8 | 170.0 | 1.10 | 90 | ||
LH0406-2R2M | 2.2 | 200.0 | 1.30 | 98 | ||
LH0406-2R7M | 2.7 | 200.0 | 1.30 | 94 | ||
LH0406-3R3M | 3.3 | 220.0 | 1.30 | 93 | ||
LH0406-3R9M | 3.9 | 240.0 | 0.80 | 86 | ||
LH0406-4R7M | 4.7 | 260.0 | 0.80 | 84 | ||
LH0406-5R6M | 5.6 | 280.0 | 0.80 | 84 | ||
LH0406-6R8M | 6.8 | 300.0 | 0.80 | 82 | ||
LH0406-8R2M | 8.2 | 350.0 | 0.70 | 77 | ||
LH0406-100K | 10.0 | 460.0 | 0.60 | 70 | ||
LH0406-120K | 12.0 | 480.0 | 0.60 | 80 | ||
LH0406-150K | 15.0 | 550.0 | 0.50 | 77 | ||
LH0406-180K | 18.0 | 650.0 | 0.50 | 87 | ||
LH0406-220K | 22.0 | 720.0 | 0.40 | 84 | ||
LH0406-270K | 27.0 | 870.0 | 0.40 | 77 | ||
LH0406-330K | 33.0 | 900.0 | 0.40 | 74 | ||
LH0406-390K | 39.0 | 980.0 | 0.40 | 70 | ||
LH0406-470K | 47.0 | 1500.0 | 0.32 | 65 | ||
LH0406-560K | 56 | 1900.0 | 0.30 | 58 | ||
LH0406-680K | 68 | 2500.0 | 0.30 | 55 | ||
LH0406-820K | 82 | 3000.0 | 0.20 | 53 | ||
LH0406-101K | 100 | 3800.0 | 0.20 | 56 | ||
LH0406-121K | 120 | 4500.0 | 0.15 | 70 | ||
LH0406-151K | 150 | 5000.0 | 0.15 | 63 | ||
LH0406-181K | 180 | 5800.0 | 0.15 | 62 | ||
LH0406-221K | 220 | 6500.0 | 0.12 | 66 | ||
LH0406-271K | 270 | 7000.0 | 0.12 | 66 | ||
LH0406-331K | 330 | 8000.0 | 0.12 | 60 | ||
LH0406-681K | 680 | 17000.0 | 0.08 | 56 |
Special inquiries besides the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804907 | 邮箱: | wjzmotto@163.com |
客服： | 胡伟 | QQ号： | 743330266 | 手机： | 13421804920 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-28146395 27185239 27185329 | 传真： | 0755-28146095 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇三联工业区联弓路九号 | ||||||
邮编: | 518109 | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：

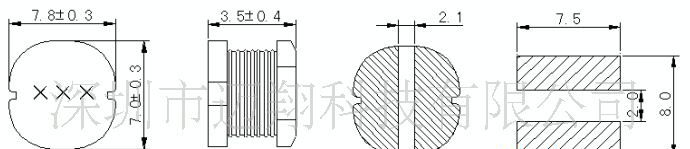

供应CD工型贴片功率电感CD73-180UH
信息内容：供应CD工型贴片功率电感CD73-180UHMotto CD73-181R , Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/18/9791/18979133.jpgdzsc/18/9791/18979133.jpgPart NoL(uH)DCR max(mΩ)IDC max(A)Test Freq.(Hz) 1.Inductance tested at 2.52MHZ,0.1V2.Inductance drip=10% typ. at rated isat3.△T=40℃rise typ. at irms4.Operationg temperature range -40℃to 125℃5.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelCD73-820R824100.54100KHZCD73-101R1004800.51100KHZCD73-121R1205400.49100KHZCD73-151R1507500.40100KHZCD73-181R18010200.36100KHZCD73-221R22012000.31100KHZCD73-271R27013100.29100KHZCD73-331R33015000.28100KHZCD73-391R39018500.25100KHZCD73-471R47022000.22100KHZCD73-561R56026000.20100KHZCD73-681R68032000.18100KHZCD73-821R82039000.16100KHZCD73-102R100045000.15100KHZSpecial ...

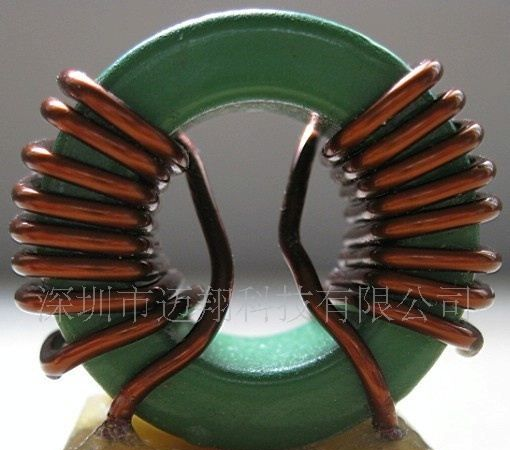

电感线圈-共模线圈
