无锡组创电子有限公司
wuxi group and electronic Co.,LTD

(产品规格书）

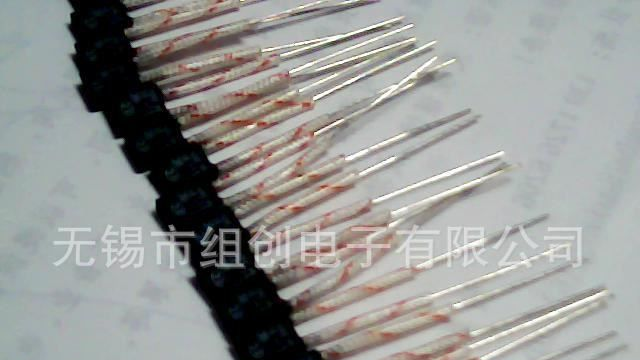

玻  管  式  保  险  丝
Fuscs for Instrumcnt,Power and Telephone (Nonindicating)
1.适应范围:本标准试用于保护仪器,各类电子电器元件,电源供应器和电话机用之玻管式熔断保险丝
1.Available Ramge:For protccting instrurucnts,all electron or electonal,power supplics and telephone sets.
2.形状及尺寸如下图，单位：mm
2.Shape&size as following illustrations,unit:mm









2.1构造形状Structurc&Shape如上图 1as shown in ligure above
  5mm X 20mm                     formall called
2.2额定电压 Rated Voltage:                                            250V                                     AC.    250V
2.2额定电流 Ratde Current:                       F10A 快熔型

NO Parr Name 部 名  Material   材料   Size  尺寸
A Ferrule Cap 套合（铜帽）  Capper(inckel plaring)铜（镀镍）   5.16*5.25
B Tube 铜管  "Soda Glass (transparenl)
石灰玻璃（透明）"   4.7x19.1mm
C "Fuse Soluble Eloment
可熔体"  Siler Alloy 银合金线
D Adhesive 粘胶  "Resin &Hardening Agent
树脂与硬剂"
E Solder 焊锡  "Naught Lead Tin
无铅锡"
F Pig 引线  Capper Plaring Tin 铜镀锡   0.65x38x5.85



3.材   料：
3.Material
3.1 玻管本体：透明玻璃管可清晰见到内部之熔线但不可破裂或变形
3.1 Glass tube:Transparenr glass in which the fuse is clesr and pwspcctable.No breaking or deformation
    is allowed.
3.2 两端铜帽：须以导电率良好之黄铜底材料。
3.2 Two brass end caps Made of brass of good conductiviry.
3.3 铜帽处理：铜帽部分镀镍
              标示若加"3"者，表示须镀镍。
3.3 Coating of brass caps Plaring the surfacc with nickel If the indicarion is added with"s",it needs
    to be plard with silver.
3.4 铜盖强度：铜盖和玻璃本体间的扭力最小720g-cm.
3.4 Slrcmgth of brass caps The minimum tortion between brass caps and glass tube is 720g-cm
4.电气特性：
4.Charactcristics of Electrical Appliancos
4.1 负载容量：额定电流测100%，能继续通电无任何熔化现象。
4.1 Loading Capacity The Listed Electrical.(Included) add 100%for following,and it's available to let
    Current Kurrcnt Keep on flowinng without any melding
4.2 温度特性：进行上项测试1.5  小时，后继续维持原加之电流，每隔十分钟测试一次，继续测试
    三次，温度不得升高，若使用热偶式测量方法，（Thermometer method)则本体温度在70℃以下
    若使用温度计测量方法（Thermometer method)则在50℃以下。
4.2 Temperature proceed: the prccedingtest for1.5  hours,keep testing iteith the original current
    every 10 minutes.Continue to test it for 3 times .The temperature is not allowed to be higher
    The main temperature is below 70℃ by way of Thermocouple Method While it keeps below
    50℃ by way of Thermometer Mcthod.
4.3 电阻测量：调整保险丝之额定电流值达10%时，在保险丝两端使用高阻抗电压表测量降压值
    以计算电阻值或电桥方式测量（额定电流2.5  安培（含）以上者，无须测量电阻值）
4.3 Resistance Measuring:Adjust the fuse upto 10% more than listde electrical current the 10%,we
    mcasure on two ends of the fuse with high voltage meter,and caculare the resistance value with
    elec-trical brige way.(If the listed currecct equal or more the 2.5  Amp,it's not necessary to
    measure the resistance value.)








CLEARING TIME
熔 断 时 限

电流  Ampere   100%   Rating 135%   Rating  200%   Rating
时间  Time  ＞4h <1h  <120s
电压 Volfage  250v 250v  250v

5.机械特性Mechanical Properties:Terminal Conncctions&Lead Solderability
乃经下述三项实验证明
5.1拉力强度Terminal Strength:当施加轴力向拉力 1.1 磅于两端导线（或套盖） 5 分钟后，
   无松动或损坏现象发生。
5.1Leads and/or caps are soldcred(adhcred)to withstand axial pulling force 1.1 pounds 5
   min without loosening ou any harfulness to firmly arlachment
5.2 回转强试Torsion Strength:
   1 固定一端铜头，另一端施加 720 g/cm的力左右摇动，铜头不得拉动及发生任何本体损坏
          After being subjecteedd to 720 g/cm torsion go one cap while te othe terminal fixed,no any
         damage or loosmning resulted

  2  一端导线弯折90度，本体以原轴旋转360度（五秒），三次不同方向旋转。导线或结合处不
     发生损坏
       One lead bent through90o,the body be clamped and rotated through 360o at a rate or 5 sec
        about the original axis,Vophisical damage to leads or connections twsulted after 3 successive
        -altematero-tations.
5.3 弯折强度Bending Strength:导线经过两次反方向之弯折后（弯折90度同折回原位谓之一次
    弯折）不发生损坏
      After two bends of opposite ditections (bending through an angle of90oand back is detined as
      one bond)of lead,no damage are to be visualized.
