MELEXIS霍尔元件:MLX90248可赠送样品给厂家测试
| 价 格： | 面议 | |
| 材料： | 金属 | |
| 种类： | 霍尔 | |
| 加工定制： | 否 | |
| 防护等级： | = | |
| 材料物理性质： | 导体 | |
| 型号/规格： | MLX90248 | |
| 材料晶体结构： | 多晶 | |
| 线性度： | =（%F.S.） | |
| 迟滞： | =（%F.S.） | |
| 重复性： | =（%F.S.） | |
| 漂移： | = | |
| 分辨率： | = | |
| 品牌/商标： | MELEXIS/迈来芯 | |
| 输出信号： | 开关型 | |
| 灵敏度： | = | |
| 制作工艺： | 集成 |
霍尔元件MLX90248
本公司经营全极霍尔效应开关MLX90248，质量保证，欢迎咨询洽谈。
| The MLX90248 is most commonly found in mobile phone applications for detecting the open and close action of the lid (flip, slide and swivel type phones) and also to detect the holstered and unholstered condition of brick and smart phones. The goal of this detection is to switch on or off the power hungry displays, backlights and keypad illumination whenever the lid is opened or closed. Thereby maximizing battery life between charges. The same operation principle can be simply applied to many other battery-powered devices like laptops, digital cameras and camcorders, music players and handheld gaming devices. Melexis' very high sensitivity Hall sensor allows the use of only a very small and cheap magnet to trigger the MLX90248, hence it can easily replace a reed switch. Several benefits derive from using a Hall sensor. One is to provide solid state switching , which is bounce-free, more reliable and with increased lifetime compared to usual mechanical contacts. The other is seamless pick and place manufacturing as the device is available in standard, leadfree and Green Surface Mount Technology. The MLX90248 exhibits “Omnipolar” magnetic characteristics. It means the device reacts to both North and South magnetic pole. The purpose is to detect the presence of any magnetic field applied on the device. This mode of operation simplifies customer production processes when orienting the magnet during assembly. The “Micropower” feature makes the MLX90248 especially suitable for battery-powered device as it combines low voltage operation and low current consumption. By using a sleep/awake strategy managed internally, the power consumption is drastically reduced. To make a comparison, the MLX90248 consumes 100 times less power than the generic low voltage Melexis Hall sensor US3881. As well as Thin SOT package, the MLX90248 is now delivered in an ultra thin UTQFN package. This new leadless package only requires 3mm^2 PCB surface and is 0.43mm maximum thick, which is particularly important in designs where space-saving and miniaturization are the critical factors. |
- Micropower Consumption : 5uA@3V ; 3uA@1.5V
- 8kV ESD protection
- Omnipolar™ : North & South Pole Active
- High Sensitivity : 6mT max (60Gauss)
- Operation Down to 1.5V
- Operating Voltage from 1.5 to 3.6V
- Open Drain Output
- “Green” and “Pb-Free” Compliant Packages
- Thin SOT23-3L & Ultra Thin CSP package
- 所属城市：山东 济南
- [联系时请说明来自维库仪器仪表网]
- 联系人： 李博
- 电话：0531-81880345
- 传真：0531-81880345
- 手机：
- QQ ：

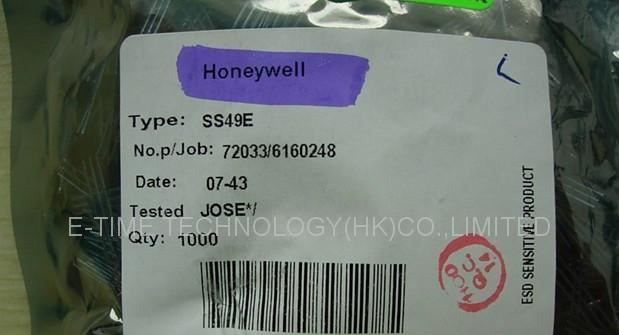

线性霍尔SS49E可赠送样品给厂家测试
信息内容：SS49E品牌/商标：HONEYWELL 商品简介：特点• 微型设计• 5Vdc 能效时的功耗为6mA• 单一电流源输出• 线性输出，使电路设计灵活多样• 低噪声输出，实际上排除了对滤波的需求• 薄膜式电阻，使输出稳定而精确• 温度范围在-40℃至100℃（-40°F 至212°F）• 在正或负高斯都能响应SS49E应用于：电动自行车调速, 动车调速转把（手把）,电流检测传感器, 接近检测器, 运动检测器,齿轮传感器,电动机控制, 旋转编码器, 铁金属探测器, 液位传感器； SS49E Series Economical Linear Position Sensors; radial lead IC packageActual product appearance may vary. FeaturesMiniature constructionPower consumption of 6 mA at 5 Vdc for energy efficiencyLow-voltage operation down to 3 VdcSingle current sourcing outputlinear output for circuit design flexibilityLow noise output virtually eliminates the need for filteringThin film resistors for a stable and accurate outputTemperature range of -40 °C to 100 °C [-40 °F to 212 °F]Responds to either positive or negative gaussPotential...
MELEXIS霍尔元件:US5881可赠送样品给厂家测试
信息内容：US5881品牌：MELEXIS型号：US5881参数：混合信号单级霍尔效应开关批号：10 US5881 是一款基于CMOS技术的混合信号单级霍尔效应开关。 器件集成了电压调节器，动态偏差补偿系统的霍尔传感器，施密特触发器和开漏输出驱动于一个封装内。由于它宽的工作电压范围和扩展的温度范围，使其非常适合于汽车电子和固态开关应用范畴。表面贴片工艺为小而薄外形的晶体管（TSOT）封装，通孔贴片工艺为塑料单一线（TO-92 扁平）封装。两个3-L 封装都符合RoHS标准。特点和优点:1.宽的工作电压范围 3.5V - 24V 2.低灵敏度 3.CMOS技术 4.斩波稳定放大器 5.低功耗 6.开漏输出 7.薄SOT23 3L和扁平 TO-92 3L 封装都符合 RoHS 标准 8.SE 封装 :北极有效 UA 封装: 南极有效产品应用:流量表开关磁性中断信号开关
