供应优质 0.8英寸 双位数字显示器
| 价 格： | 2.00 | |
| 加工定制： | 是 | |
| 种类： | LED数码管 | |
| 型号： | BL-D80A-21UR-21 | |
| 品牌： | BETLUX | |
| 显示颜色： | 单色 | |
| 显示方式： | 静态显示 | |
| 像素直径： | Ф8（mm） | |
| 像素间距： | 多种（mm） | |
| 模组尺寸： | 多种（mm） | |
| 屏幕尺寸： | 多种（英寸） | |
| 亮度： | 高亮 | |
| 灰度： | 标准 | |
| 像素： | 标准 | |
| 分辨率： | 标准 | |
| 使用环境： | 半户外 | |
| 安装方式： | 镶嵌式 |
dzsc/18/9722/18972259.jpg
特点：
20.3mm(0.80)双位数 LED数码管
低电流操作
优良的品质外观
输出亮度高
易于安装在PC板和PC槽上
IC兼容
多种颜色可选
标准：灰底白字
符合ROHS
n Super Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Common Cathode | Common Anode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-D80A-21S-XX | BL-D80B-21S-XX | Hi Red | GaAlAs/GaAs,SH | 660 | 1.85 | 2.20 | 120 |
|
BL-D80A-21D-XX | BL-D80B-21D-XX | Super Red | GaAlAs/GaAs,DH | 660 | 1.85 | 2.20 | 150 |
|
BL-D80A-21UR-XX | BL-D80B-21UR-XX | Ultra Red | GaAlAs/GaAs,DDH | 660 | 1.85 | 2.20 | 180 |
|
BL-D80A-21E-XX | BL-D80B-21E-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 70 |
|
BL-D80A-21Y-XX | BL-D80B-21Y-XX | Yellow | GaAsP/GaP | 585 | 2.10 | 2.50 | 70 |
|
BL-D80A-21G-XX | BL-D80B-21G-XX | Green | GaP/GaP | 570 | 2.20 | 2.50 | 75 |
|
n Ultra Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Common Cathode | Common Anode | Emitted Color | Material | lP (nm) | ||||
Typ | Max | |||||||
BL-D80A-21UHR-XX | BL-D80B-21UHR-XX | Ultra Red | AlGaInP | 645 | 2.10 | 2.50 | 180 |
|
BL-D80A-21UE-XX | BL-D80B-21UE-XX | Ultra Orange | AlGaInP | 630 | 2.10 | 2.50 | 120 |
|
BL-D80A-21YO-XX | BL-D80B-21YO-XX | Ultra Amber | AlGaInP | 619 | 2.10 | 2.50 | 120 |
|
BL-D80A-21UY-XX | BL-D80B-21UY-XX | Ultra Yellow | AlGaInP | 590 | 2.10 | 2.50 | 120 |
|
BL-D80A-21UG-XX | BL-D80B-21UG-XX | Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 145 |
|
BL-D80A-21PG-XX | BL-D80B-21PG-XX | Ultra Pure Green | InGaN | 525 | 3.80 | 4.50 | 210 |
|
BL-D80A-21B-XX | BL-D80B-21B-XX | Ultra Blue | InGaN | 470 | 2.70 | 4.20 | 95 |
|
BL-D80A-21W-XX | BL-D80B-21W-XX | Ultra White | InGaN | / | 2.70 | 4.20 | 95 |
|
n -XX: Surface / Lens color：
Number | 0 | 1 | 2 | 3 | 4 | 5 |
Ref Surface Color | White | Black | Gray | Red | Green |
|
Epoxy Color | Water clear | White diffused | Red Diffused | Green Diffused | Yellow Diffused |
|
- 所属城市：浙江 宁波
- [联系时请说明来自维库仪器仪表网]
- 联系人： 唐先生
- 电话：574-88087719
- 传真：574-88087729
- 手机：
- QQ ：

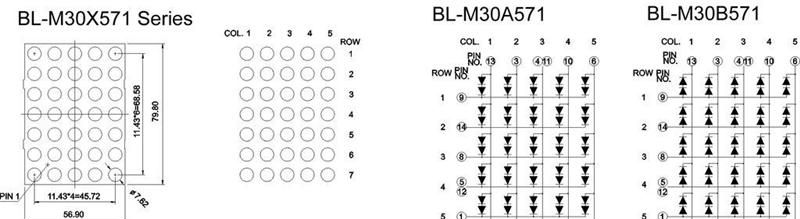

供应 优质4.6英寸 5*8 LED点阵
信息内容：特点： 列:5 行:7 3.0英寸矩阵高度 网点大小：7.62mm 低电流操作 高对比度，输出亮度较高 兼容ASCII码和EBCDIC代码 水平叠加 共阴共阳可选 便于安装在PC板和PC槽上 多种颜色可选 标准:灰面白点 符合ROHS Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)Part NoChipVFUnit:VIv TYP.(mcd) Row Cathode Column AnodeRow AnodeColumn CathodeEmitted ColorMateriallP(nm) TypMax BL-M30A571SG-XXBL-M30B571SG-XXSuper RedAlGaInP6602.102.50140 GreenGaP/GaP5702.202.50125 BL-M30A571EG-XXBL-M30B571EG-XXOrangeGaAsP/GaP6352.102.50110 GreenGaP/GaP5702.202.50125 BL-M30A571DUG-XXBL-M30B571DUG-XXUltra RedAlGaInP6602.102.50160 Ultra GreenAlGaInP5742.202.50190 BL-M30A571UEUG-XXBL-M30B571UEUG-XXUltra OrangeAlGaInP6302.102.50150 Ultra GreenAlGaInP5742.202.50190 n -XX: Surface / Lens color：Number012345Ref Surface ColorWhiteBlackGrayRedGreen Epoxy ColorWater clearWhite diffusedRedDiffusedGreenDiffusedYellowDiffused n Absolute maximum ratin...

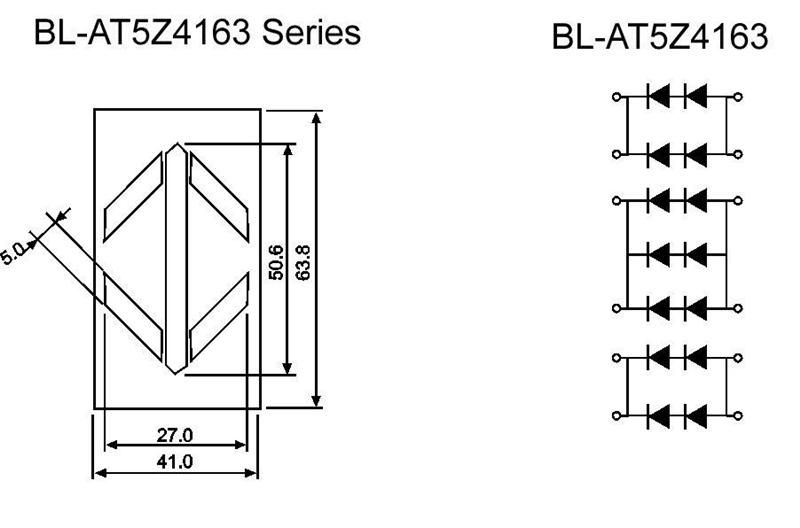

供应 优质 41*63mm 绿光 LED光块
信息内容：特点: 41*63mm箭头显示 超亮度 低电流操作 良的品质外观 容易安装在PC板和PC槽上 智能卡兼容 符合ROHS n Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA) Part NoChipVFUnit:VIv TYP.(mcd) Emitted ColorMateriallP(nm) TypMax BL-AT5Z4163S-XXHi RedGaAlAs/GaAs,SH6601.852.2049 BL-AT5Z4163D-XXSuper RedGaAlAs/GaAs,DH6601.852.2084 BL-AT5Z4163UR-XXUltra RedGaAlAs/GaAs,DDH6601.852.20168 BL-AT5Z4163E-XXOrangeGaAsP/GaP6352.102.5035 BL-AT5Z4163Y-XXYellowGaAsP/GaP5852.102.5035 BL-AT5Z4163G-XXGreenGaP/GaP5702.202.5035 BL-AT5Z4163UHR-XXUltra RedAlGaInP6452.102.50168 BL-AT5Z4163UE-XXUltra OrangeAlGaInP6302.102.5098 BL-AT5Z4163YO-XXUltra AmberAlGaInP6192.102.5098 BL-AT5Z4163UY-XXUltra YellowAlGaInP5902.102.5098 BL-AT5Z4163UG-XXUltra GreenAlGaInP5742.202.5085 BL-AT5Z4163PG-XXUltra Pure GreenInGaN5253.804.5085 BL-AT5Z4163UB-XXUltra BlueInGaN4702.704.2085 BL-AT5Z4163UW-XXUltra WhiteInGaN/2.704.20120 ·-XX: Ref Surface / Epoxy color：Number012345Ref...
