Hirose/广濑 HRS连接器 GT8Z-24DS-2C 基板对电缆连接器
| 价 格： | 1.00 | |
| 接口类型： | ----- | |
| 接触件材质： | ----- | |
| 针数： | ----- | |
| 种类： | 板对线 | |
| 加工定制： | 否 | |
| 形状： | 条形 | |
| 线长： | -----（mm） | |
| 应用范围： | 电缆 | |
| 型号/规格： | GT8Z-24DS-2C | |
| 特性： | 防水 | |
| 品牌/商标： | Hirose/广濑 | |
| 绝缘体材质： | ----- | |
| 制作工艺： | 冷压 | |
| 芯数： | ----- |
Hirose/广濑 HRS接插件 基板对基板连接器 连接器GT8系列 高压连接器Features ● Use of an air-tight dimple construction at the contact portion serves to prevent oxidation. ● Terminal number markings of F connector housing appear in a large size in consideration of insertion processing. Mis-insertion prevention. ● M Connectors designed with escape holes for washing liquid to prevent secondary soiling by the board washing. ● The F connector housing fits entirely inside of the M connector to prevent incomplete insertion and twisting. ● The color of the F connector housing and the M connector have been changed to prevent incomplete insertion.
| Characteristic | Specifications |
| No. of Positions | 14, 20, 24 |
| Current Rating(Amps)(Max.) | 1, 3 |
| PCB Mount Type | SMT, Through-hole |
| Contact Mating Area Plating | Tin, Tinned Copper, Gold |
| Terminal Pitch (mm) | 1, 2 |
| Contact Spacing (mm) | 2 |
| Operating Temperature Range (degrees C) | -30 to 105 |
| Termination Style | Crimping |
| Connector Type | Board mounting/Wire |
| Contact Gender | Female, Male |
| Remarks | Applicable cable: Conductor cross-sectional area 0.08 to 0.2 sq.mm, Jacket Dia.:1.1 to 1.5mm |
同系列型号有：
GT8-14DS-2C
GT8-2022SCF
GT8-2428SC(70)
GT8-2428SCF(70)
GT8A-14DP-2DSA(71)
GT8A-14DP-2H
GT8B-14DS-2C
GT8B-2428SCF
GT8B-2428SCF(01)
GT8F-14DP-2V
GT8F-14DS-2C
GT8FB-14DS-2DSA
GT8MA-6S-HU
GT8MB-6S-HU
GT8Z-14DS-2C
GT8Z-20DS-2C
GT8Z-24DS-2C
圆形连接器(Circular Connectors)、
矩形连接器(Rectangular Connectors)、
同轴连接器(Coaxial Connectors)、
存储卡(Memory Card)、
标准网口连接器(Modular Connectors)、
板对板连接器(Board to Board Connectors)、
板对线连接器(Board to Wire Connectors)、
FPC/FFC连接器(FPC/FFC Connectors)、
光纤连接器(Optical Connectors and Devices)、
射频连接器(Microwave Components)
SMK产品:手机连接器;视听数码产品连接器,电脑及设备连接器,家用电器连接器.
"
- 所属城市：上海 上海市
- [联系时请说明来自维库仪器仪表网]
- 联系人： 徐清强
- 电话：021-54432312
- 传真：021-54432312
- 手机：
- QQ ：

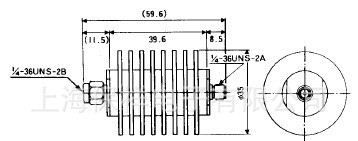

Hirose/广濑 HRS连接器 衰减器 AT-1120(40) 微波元件
信息内容：Hirose/广濑 HRS连接器 微波元件 衰减器 AT-1100系列高电力用固定衰减器(独立散热型)Features●Beryllia is used for the material of the resistance element to enable the attenuator to be of small size and low cost.●The coupling portions are available in N type plug-jack.●Stable characteristics for environments of varying temperature, humidity, and gases. CharacteristicSpecificationsContact Mating Area PlatingGoldImpedance (ohm)50Frequency Range (GHz)0 to 8Operating Temperature Range (degrees C)-10 to 65Power Capacity (W)10Connector TypeAdapterRemarksConnector: N Plug-JackVSWR (Max)1.3 本系列其他型号：AT-1103(40)AT-1106(40)AT-1110(40)AT-1120(40)HRS 连接器：圆形连接器(Circular Connectors)、矩形连接器(Rectangular Connectors)、同轴连接器(Coaxial Connectors)、存储卡(Memory Card)、标准网口连接器(Modular Connectors)、板对板连接器(Board to Board Connectors)、板对线连接器(Board to Wire Connectors)、FPC/FFC连接器(FPC/FFC Connectors)、光纤连接器(Optical Connectors and Devices)、射频连接器(Microwav...

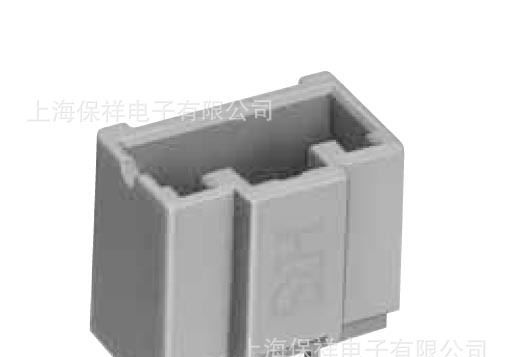

Hirose/广濑 HRS连接器 DF1EG-9P-2.5DSA(05) 基板对电缆连接器
