供应Connector电脑、USB连接器
| 价 格： | 面议 | |
| 品牌/商标： | 进口 | |
| 型号/规格： | USB CONNECTOR | |
| 应用范围： | 电脑 | |
| 种类： | 线束/连接线/端子线 | |
| 接口类型： | USB |
USB B TYPE
- Material:
- Insulator housing: high temperature, plastic, UL94V-0 and ivory white
- Contact: phosphor bronze
- Plating: gold plating on contact area
- Shell plating: nickel-plated
- Electrical:
- Current rating: 0.5A
- Contact resistance: 30M Ohms maximum
- Insulation resistance: 1000M Ohms minimum
- Dielectric withstanding voltage: 550V AC/1 min
- Temperature: -40 to 105 degrees
东莞市晋宇电子有限公司
公司信息未核实
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 邱莉
- 电话：0769-81760556
- 传真：0769-81760556
- 手机：
- QQ ：
公司相关产品
供应Wire Harness連接線線束 汽车连接线
信息内容：Automotive Wire Harness with Fuse HoderBest conduction function offered to correctly carry out orders from the hostElectronic or vehicle wiring harnessesWith pin switch, battery and fuse holderAvailable in various designs for car power-windowOEM/ODM orders are welcome

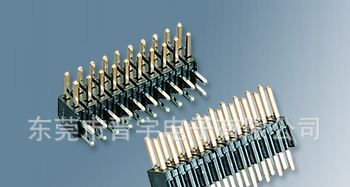

供应2.0MM Connector排针
