供应质优价廉背板，硬盘,电脑用SAS 29PIN SMT,DIP连接器,连接器
| 价 格： | 2800.00 | |
| 是否提供加工定制： | 是 | |
| 品牌： | 高阳电子 | |
| 型号： | SAS 29PIN公母头 | |
| 应用范围： | 背板 | |
| 种类： | 插头/插座 | |
| 接口类型： | SATA/ATA | |
| 支持卡数： | 三合一 | |
| 读卡类型： | RS-MMC | |
| 形状： | 条形 | |
| 制作工艺： | 注塑 | |
| 特性： | 阻火/阻燃 | |
| 工作频率： | 高频 | |
| 接触件材质： | C5191 | |
| 绝缘体材质： | LCP | |
| 芯数： | 29 | |
| 针数： | 29 | |
| 线长： | 600（mm） |
| SATA/ESATA | ||||||
| Material | Housing | High Temperature thermoplastics:LCP/PBT 94V-0 | ||||
| Color: Black | ||||||
| Contact | Brass/Phospor Bronze | |||||
| Shell | SUS 301/Brass/Zine alloy | |||||
| Plated | Contact | Gold plated (G/F,5U"/10U''/15U'') | ||||
| Shell | Gold/Nickel | |||||
| Materials and plating can be varied | ||||||
| according to customer definition. | ||||||
| Mechanical Spec. | Insertion Force | 35 N Max | ||||
| Extraction Force | 10N Min(Initial), | |||||
| 8N Min(10000 Cycles) | ||||||
| Durability Life | 50000 Times | |||||
| Electrical Spec. | Contact Current Rating | 1.5 Amperes | ||||
| Dielectric Withstanding Voltage | AC 500V r.m.s | |||||
| Insulation Resistance | ≥100MΩ | |||||
| Contact Resistance | ≤30mΩ | |||||
| Operating Temperature | -25 oC - 85 oC | |||||
| Environmental Spec. | Have passed below tests: | |||||
| 1.Salt Fog Test | ||||||
| 2.AIR Reflow Soldering Test | ||||||
| 3.Mechanical Vibration Test | ||||||
| 4.Adhered Tin Test | ||||||
| 5.Temperature Cycle Test | ||||||
| 6. High frequency test | ||||||
| … … | ||||||
| Application | Serial ATA (SATA or Serial Advanced Technology Attachment) is a computer bus interface for connecting host bus adapters to mass storage devices such as hard disk drives and optical drives. Serial ATA was designed to replace the older ATA (AT Attachment) standard (also known as EIDE), offering several advantages over the older parallel ATA (PATA) interface: reduced cable-bulk and cost (7 conductors versus 40), native hot swapping, faster data transfer through higher signalling rates, and more efficient transfer through an (optional) I/O queuing protocol. SATA host-adapters and devices communicate via a high-speed serial cable over two pairs of conductors. In contrast, parallel ATA (the redesignation for the legacy ATA specifications) used a 16-bit wide data bus with many additional support and control signals, all operating at much lower frequency. To ensure backward compatibility with legacy ATA software and applications, SATA uses the same basic ATA and ATAPI command-set as legacy ATA devices. and cable ASSY. | |||||
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
dzsc/18/9395/18939521.jpg
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 魏烈琼
- 电话：769-22681670
- 传真：769-22681670
- 手机：
- QQ ：

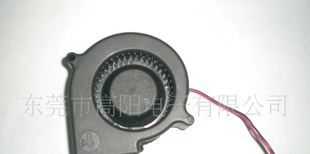

生产直流交流工业吹气抽风散热排风塑胶金属小鼓风机
信息内容：生产直流交流工业吹气抽风散热排风塑胶金属小鼓风机用于笔记本电脑、空气清新器、飘香器等小家电。噪声小。 ( VDC )( VDC )( A )(RPM)(CFM)( mmH20 )( dBA )( g ) Sleeve or ball126.00.25200077.483.4832.96236 Sleeve or ball126.00.30240079.665.2638.98 Sleeve or ball126.00.402700107.546.6641.51 Sleeve or ball126.00.503000119.497.8144.47 Sleeve or ball126.00. 703500139.408.7947.53 Sleeve or ball2412.00.18240079.665.2638.98236 Sleeve or ball2412.00.232700107.546.6641.51 Sleeve or ball2412.00.253000119.497.8144.47 Sleeve or ball2412.00.303500139.408.7947.53

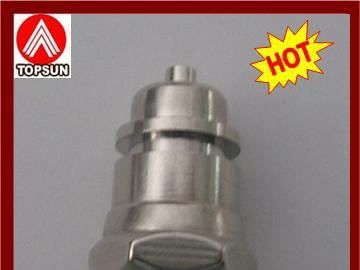

供应质优价美通讯，航空，卫星射频RF，BNC,F,N,UHF头
