6500K正白苹果索尼电脑专用LED背光源
| 价 格： | 11.99 | |
| 是否提供加工定制： | 是 | |
| 种类： | 发光二极管 | |
| 是否进口： | 是 | |
| 品牌/商标： | OSRAM/欧司朗 | |
| 型号/规格： | LUW CP7P | |
| 材料： | 硅(Si) |
LUW CP7P
dzsc/18/9329/18932991.jpg
SIZE：3.0 x 3.0 x 2.33mm
Features

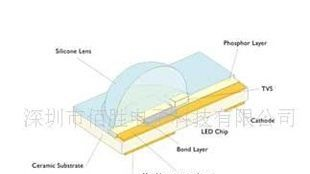

•package:SMD ceramic package with silicon
resin with lens
•typical Luminous Flux:110 lm at 350 mA
•feature of the device:small size high-flux LED
for slim designs
•color coordinates:x = 0.31, y = 0.32 acc. to
CIE 1931 (white)
•typ. color temperature:6500 K
•viewing angle:80°
•technology:ThinGaN
•optical efficiency:100 lm/W
•grouping parameter:luminous flux,
color coordinates
•soldering methods:reflow soldering
•preconditioning:acc. to JEDEC Level 1
•taping:8-mm tape with 600/reel, ø180 mm
•ESD-withstand voltage:up to 2 kV acc. to
JESD22-A114-D_
_
Applications
• Residential retrofits & fixtures
• Spot lights
• Task lights
• Accent lights
• Professional downlights
• Shop lighting
6500K | 5C | 6C | 7C | 8C |
5D | 6D | 7D | 8D | |
5E | 6E | 7E | 8E | |
5F | 6F | 7F | 8F | |
5G | 6G | 7G | 8G |
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
dzsc/18/9329/18932991.jpg
