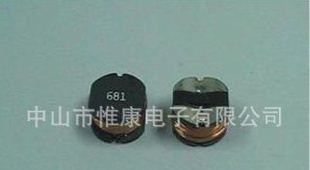

开放式SMD电感(HC43)
| 价 格： | 0.40 | |
| 应用范围： | 通讯类、通信机器 | |
| 种类： | 固定电感 | |
| 品牌： | 惟康 | |
| 型号： | 功率电感 | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 多层平绕式 | |
| 导磁体性质： | 铁氧体磁芯 | |
| 磁芯形状： | 工字形 | |
| 工作频率： | 高频 | |
| 安装方式： | 立式非密封 | |
| 骨架材料： | 铁氧体 | |
| 品质因数Q： | 90 | |
| 电感量： | 0.001-0.068（mH） | |
| 允许误差： | 10% | |
| 感抗XL： | 0.033-1.117（Ω） | |
| 额定电流： | 460-2150（mA） | |
| 标称电压： | 220（V） |
| HC43-1R0M | 1.00 | 0.033 | 3.80 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-1R4M | 1.40 | 0.038 | 3.30 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-1R8M | 1.80 | 0.042 | 2.91 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-2R2M | 2.20 | 0.047 | 2.60 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-2R7M | 2.70 | 0.052 | 2.43 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-3R3M | 3.30 | 0.058 | 2.15 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-3R9M | 3.90 | 0.076 | 1.98 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-4R7M | 4.70 | 0.094 | 1.70 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-5R6M | 5.60 | 0.101 | 1.60 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-6R8M | 6.80 | 0.117 | 1.41 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-8R2M | 8.20 | 0.132 | 1.26 | 7.96MHz/0.25V | |||||||||||||||||||||||||
| HC43-100M | 10 | 0.182 | 1.15 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-120M | 12 | 0.210 | 1.05 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-150M | 15 | 0.235 | 0.92 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-180M | 18 | 0.338 | 0.84 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-220M | 22 | 0.378 | 0.76 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-270M | 27 | 0.522 | 0.71 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-330M | 33 | 0.540 | 0.64 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-390M | 39 | 0.587 | 0.59 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-470M | 47 | 0.844 | 0.54 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-560M | 56 | 0.937 | 0.50 | 2.52MHz/0.25V | |||||||||||||||||||||||||
| HC43-680M | 68 | 1.117 | 0.46 | 2.52MHz/0.25V |
- 所属城市：广东 中山
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄科文
- 电话：
- 传真：
- 手机：
- QQ ：
开放式SMD电感（HC32）
信息内容：PARTINDUCTANCEDCR(max)IDC(max)TEST FREQNUMBER(μ H)(Ohm)(A) 品名電感值直流電阻定格電流測試頻率HC32-1R0M1.00.0452.20100KHZ/0.1VHC32-1R2M1.20.052.1100KHZ/0.1VHC32-1R5M1.50.0551.7100KHZ/0.1VHC32-1R8M1.80.0701.65100KHZ/0.1VHC32-2R2M220.0851.60100KHZ/0.1VHC32-2R7M2.70.101.40100KHZ/0.1VHC32-3R3M3.30.121.04100KHZ/0.1VHC32-3R9M3.90.1251.00100KHZ/0.1VHC32-4R7M4.70.1351.00100KHZ/0.1VHC32-5R6M5.60.1450.95100KHZ/0.1VHC32-6R8M6.80.200.95100KHZ/0.1VHC32-8R2M8.20.250.92100KHZ/0.1VHC32-100M100.320.90100KHZ/0.1VHC32-120M120.350.85100KHZ/0.1VHC32-150M150.460.75100KHZ/0.1VHC32-180M180.520.7100KHZ/0.1VHC32-220M220.650.60100KHZ/0.1VHC32-270M270.750.55100KHZ/0.1VHC32-330M330.920.50100KHZ/0.1VHC32-390M391.000.48100KHZ/0.1VHC32-470M471.150.45100KHZ/0.1VHC32-560M561.500.30100KHZ/0.1VHC32-680M682.000.26100KHZ/0.1VHC32-820M822.150.23100KHZ/0.1VHC32-101M1002.500.201KHz/0.25VHC32-121M1203.400.181KHz/0.25VHC32-151M1504.200.161KHz/0.25VHC32-181M1804.500.151KHz/0.25V
闭磁式SMD电感(HCRH3D16)
信息内容：PARTINDUCTANCEDCR(max)IDC(max)TEST FREQNUMBER(μ H)(Ω)(A)品名電感值直流電阻定格電流測試頻率HCRH3D16-1R5N1.5±30%0.0561.55100KHz/0.1VHCRH3D16-2R2N2.2±30%0.0721.20100KHz/0.1VHCRH3D16-3R3N3.3±30%0.0851.10100KHz/0.1VHCRH3D16-4R7N4.7±30%0.1050.90100KHz/0.1VHCRH3D16-6R8N6.8±30%0.1700.73100KHz/0.1VHCRH3D16-100N10±30%0.2100.55100KHz/0.1VHCRH3D16-150N15±30%0.2950.45100KHz/0.1VHCRH3D16-220N22±30%0.4300.40100KHz/0.1VHCRH3D16-330N33±30%0.6750.32100KHz/0.1V
