SMD磁罩型功率电感WBD6D26T820
| 价 格： | 0.01 | |
| 应用范围： | 滤波 | |
| 种类： | 电流互感器 | |
| 品牌/商标： | MOTTO/迈翔 | |
| 型号/规格： | WBD6D26T820 | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 多层平绕式 | |
| 导磁体性质： | 铁氧体磁芯 | |
| 磁芯形状： | 柱形 | |
| 工作频率： | 低频 | |
| 安装方式： | 贴片式 | |
| 骨架材料： | 聚苯乙烯 | |
| 品质因数Q： | 0 | |
| 电感量： | 0（mH） | |
| 额定电流： | 0（mA） | |
| 分布电容： | 0（F） |
SMD磁罩型功率电感WBD6D26T820
Motto WBD6D26T820, Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc.
dzsc/18/9325/18932553.jpg
Part No | L (UH) | DCR(MΩ)MAX | IDCMAX(A) | Z TEST Freq(MHz) |
| 1.Inductance tested at 100KHZ,0.1V agilent / HP8753D network analyzer
Packing; Reel size:16mm Quantity:1000pcs/Reel |
WBD6D26T2R2 | 2.2 | 0.022 | 3.2 | 10 | ||
WBD6D26T2R9 | 2.9 | 0.025 | 2.8 | 10 | ||
WBD6D26T3R6 | 3.6 | 0.029 | 2.5 | 10 | ||
WBD6D26T5R0 | 5.0 | 0.032 | 2.2 | 10 | ||
WBD6D26T6R8 | 6.8 | 0.054 | 1.8 | 10 | ||
WBD6D26T8R0 | 8.0 | 0.060 | 1.6 | 10 | ||
WBD6D26T100 | 10 | 0.071 | 1.5 | 10 | ||
WBD6D26T120 | 12 | 0.078 | 1.3 | 10 | ||
WBD6D26T150 | 15 | 0.106 | 1.2 | 10 | ||
WBD6D26T180 | 18 | 0.114 | 1.1 | 10 | ||
WBD6D26T220 | 22 | 0.129 | 1 | 10 | ||
WBD6D26T270 | 27 | 0.185 | 0.9 | 10 | ||
WBD6D26T330 | 33 | 0.203 | 0.8 | 10 | ||
WBD6D26T390 | 39 | 0.223 | 0.75 | 10 | ||
WBD6D26T470 | 47 | 0.300 | 0.7 | 10 | ||
WBD6D26T560 | 56 | 0.340 | 0.65 | 10 | ||
WBD6D26T680 | 68 | 0.347 | 0.58 | 10 | ||
WBD6D26T820 | 82 | 0.490 | 0.53 | 10 | ||
WBD6D26T101 | 100 | 0.560 | 0.5 | 10 |
Special inquiries beside102s the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804907 | 邮箱: | wjzmotto@163.com |
客服： | 胡伟 | QQ号： | 743330266 | 手机： | 13421804920 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-28146395 27185239 27185329 | 传真： | 0755-28146095 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇三联工业区联弓路九号 | ||||||
邮编: | 518109 | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：
供应LH类0406型插件电感LH0406-390K

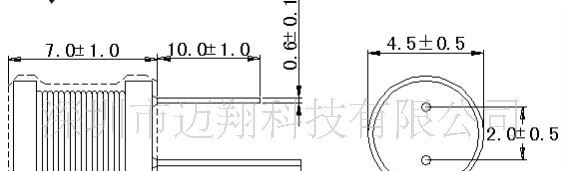

信息内容：插件电感工字电感 LH0406-390KMotto LH0406-390K, Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/18/9328/18932875.jpg品名构成Product IdentificationLH 0406 1R0 M—R① ② ③ ④ ⑤①系列名称SERIES NAME②尺寸DIMENSIONS③电感量INDUCTANCE④误差TOLERANCE CODE(J:±5% K:±10% L:±15% M:±20% P:±25% N:±30%)⑤包装方式PACKING CODE(R-TAPE B-BULK) Part NoL(uH)DCR max(mΩ)IDC max(A)Q(MIN) 1.Inductance tested at 100KHZ,0.1V2.SRF>13MHZ measured usingagilent / HP8753D network analyzer3.Inductance drip=10% typ. at rated isat4.△T=40℃rise typ. at irms5.Operationg temperature range -40℃to 125℃6.Electrical specifitions at 25℃ Packing;Reel size:12mmQuantity:1500pcs/ReelLH0406-150K15.0550.00.5077LH0406-180K18.0650.00.5087LH0406-220K2...
