CMI高頻積層式晶片電感
| 价 格： | 0.04 | |
| 应用范围： | 滤波 | |
| 种类： | 电感磁珠 | |
| 品牌： | 五环 | |
| 型号： | CMI0805 | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 叠层 | |
| 导磁体性质： | 陶瓷 | |
| 磁芯形状： | 长方形 | |
| 工作频率： | 高频 | |
| 安装方式： | 卧式非密封 | |
| 骨架材料： | 陶瓷 | |
| 品质因数Q： | 30 | |
| 电感量： | 47NH | |
| 允许误差： | 5% | |
| 感抗XL： | 20（Ω） | |
| 额定电流： | 100（mA） | |
| 分布电容： | 10（F） | |
| 标称电压： | 0.25（V） |
CMI高頻積層式晶片電感Features (特長) | |
| ● | To prevent EMI interference noises between electronic circuits. (可降低噪音及濾波電磁干擾) |
| ● | High Q and high reliability and ceramic material. (高品質因素、高可靠性、陶瓷材質 |
Application (用途) | |
| ● | Notebook Computer, Disc Drive Unit(CD/DVD), Inkjet Printer, Hard Disk Drive, Copying Machine, Display Monitor, Gaming Machine, Color TV, Video Tape Recorder, DVD Player, Video Camera, Digital Still Camera, Car Electronics, Lowest EMI. (筆記型電腦、磁片驅動裝置、噴墨印表機、硬碟磁碟機、影印機、顯示監視器、遊戲機、彩色電視、錄放影機、光碟機、攝影機、數位相機、汽車電子產品、防干擾對策) |
Pict
| |||||||||||||
| 五环编号 PAT NO | Inductance | Q | Test Fre | SRF | DCR | Idc | |||||||
| 电感 | (MHZ) | (OHM) | (m A) | ||||||||||
| UH | min | MHZ | min | Max | Max | ||||||||
| CMI 0805-47NK | 0.047 | 25 | 50 | 320 | 0.2 | 300 | |||||||
| CMI 0805-68NK | 0.068 | 25 | 50 | 280 | 0.2 | 300 | |||||||
| CMI 0805-82NK | 0.082 | 25 | 50 | 280 | 0.2 | 300 | |||||||
| CMI 0805-R10K | 0.10 | 25 | 25 | 235 | 0.2 | 250 | |||||||
| CMI 0805-R12K | 0.12 | 25 | 25 | 220 | 0.3 | 250 | |||||||
| CMI 0805-R15K | 0.15 | 25 | 25 | 200 | 0.3 | 250 | |||||||
| CMI 0805-R18K | 0.18 | 25 | 25 | 185 | 0.3 | 250 | |||||||
| CMI 0805-R22K | 0.22 | 25 | 25 | 170 | 0.3 | 250 | |||||||
| CMI 0805-R33K | 0.33 | 25 | 25 | 145 | 0.4 | 250 | |||||||
| CMI 0805-R39K | 0.39 | 30 | 25 | 135 | 0.5 | 200 | |||||||
| CMI 0805-R47K | 0.47 | 30 | 25 | 125 | 0.5 | 200 | |||||||
| CMI 0805-R68K | 0.68 | 30 | 25 | 105 | 0.7 | 150 | |||||||
| CMI 0805-R82K | 0.82 | 30 | 25 | 100 | 0.8 | 150 | |||||||
| CMI 0805-1R0K | 1.0 | 45 | 10 | 75 | 0.4 | 100 | |||||||
| CMI 0805-1R5K | 1.5 | 45 | 10 | 60 | 0.5 | 50 | |||||||
| CMI 0805-1R8K | 1.8 | 45 | 10 | 55 | 0.5 | 50 | |||||||
| CMI 0805-2R2K | 2.2 | 45 | 10 | 50 | 0.6 | 50 | |||||||
| CMI 0805-2R7K | 2.7 | 45 | 10 | 45 | 0.6 | 50 | |||||||
| CMI 0805-3R3K | 3.3 | 45 | 10 | 41 | 0.7 | 50 | |||||||
| CMI 0805-3R9K | 3.9 | 45 | 10 | 38 | 0.8 | 50 | |||||||
| CMI 0805-4R7K | 4.7 | 45 | 10 | 35 | 0.9 | 25 | |||||||
| CMI 0805-6R8K | 6.8 | 50 | 4 | 29 | 1.1 | 25 | |||||||
| CMI 0805-8R2K | 8.2 | 50 | 4 | 26 | 1.1 | 25 | |||||||
| CMI 0805-100M | 10 | 50 | 2 | 24 | 1.1 | 25 | |||||||
| CMI 0805-120M | 12 | 50 | 2 | 22 | 1.1 | 15 | |||||||
| CMI 0805-180M | 18 | 30 | 1 | 18 | 1.2 | 5 | |||||||
| CMI 0805-220K | 22 | 30 | 1 | 16 | 1.2 | 5 | |||||||
| CMI 0805-270K | 27 | 30 | 1 | 16 | 1.5 | 5 | |||||||
| CMI 0805-330M | 33 | 30 | 1 | 16 | 1.5 | 5 | |||||||
| CMI 0805-390M | 39 | 35 | 1 | 16 | 1.5 | 5 | |||||||
| CMI 0805-470M | 47 | 35 | 1 | 15 | 1.6 | 5 | |||||||
| CMI 0805-560M | 56 | 35 | 1 | 15 | 1.8 | 5 | |||||||
- 所属城市：广东 中山
- [联系时请说明来自维库仪器仪表网]
- 联系人： 黄洁
- 电话：0760-85519097
- 传真：0760-85519097
- 手机：
- QQ ：
供应贴片铁氧体磁珠
信息内容：公司目前主要生产：1.色环电感: LGA0204,0307,0410,05102.工字型电感： HPK0304,0455,0406,0507,0608,0810,0912,1010,1012,1015,2223等3.注塑胶工字型电感: HMF1012….等4.涂漆EL工字型色码电感：EL0455,0606,0608,0810,0909等5. 磁环电感：HC3026,4426,5026,6026,6826,8026,9026,10626,15726,20026等不同材质及上底座产品.6.棒型无针脚滤波电感: HFC0205,0310,0415,0520,0630,0830,1030等7.棒型轴向电感: HVC0310,0410,0513,0515,0616,1019等8.空芯线圈电感: 线径0.2mm-2.0mm，内径和圈数依客户要求定做.9.宽频六孔磁珠：RID,RH,RHH型一孔至六孔各式穿线磁珠,RH354708,35608,35908等10.模压线圈: 外观尺寸有0505，0509，0707,0712，0812，1012等11.EMI 滤波线圈: HTCT8095等12.共模电感: U10,U16, 外型尺寸1417,2336,1523,2235,1723等13.触发线圈：HTR0306，0406 0412等14.可调线圈：S1 2 3等15.贴片电感: 带屏蔽和不带屏蔽两种 CD&CRI 32,43,54,73,75,104,105, RI124,125,127, CMD322522,453232,SPRI0402，0804，1206等16.叠层磁珠和叠层电感: CB/CH/CB100505(0402),160808(0603), 201209(0805), 321611(1206), 322513(1210),451616(1806),453215(181...
供应插件1016工字电感 功率电感

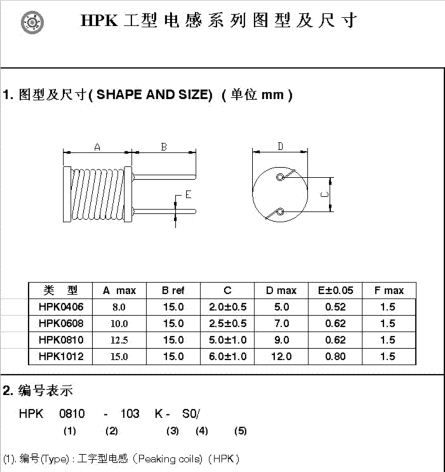

信息内容：体型小的立式电感，占用安装空间小，高Q，分布电容量小，自共振频率高，特殊导针结构，不易产生开路现象，用UL热缩套管，可卷装易于自动插件。dzsc/18/9320/18932050.jpgPict HPK1216 插件1016工字电感 功率电感系列特性----中山市五环子厂 五环PART NO.L uHTESTINGTESTINGDCR (Ω)I mAINDUCTANCEVOLTAGEMAXMAX电感值测试频率测试电压直流电阻额定电流HPK1216-120K-S0121.0 KHZ0.25V0.021570HPK1216-150K-S0151.0 KHZ0.25V0.031570HPK1216-180K-S0181.0 KHZ0.25V0.041570HPK1216-220K-S0221.0 KHZ0.25V0.051570HPK1216-270K-S0271.0 KHZ0.25V0.061570HPK1216-330K-S0331.0 KHZ0.25V0.071570HPK1216-470K-S0471.0 KHZ0.25V0.081570HPK1216-560K-S0561.0 KHZ0.25V0.091570HPK1216-680K-S0681.0 KHZ0.25V0.101570HPK1216820K-S0821.0 KHZ0.25V0.111570HPK1216-101K-S01001.0 KHZ0.25V0.121570HPK1012-151K-S01501.0 KHZ0.25V0.151570HPK1012-221K-S02201.0 KHZ0.25V0.191270HPK1012-271K-S02701.0 KHZ0.25V0.45760HPK1012-471K-S04701.0 KHZ0.25V0.56760HPK1012-561K-S05601.0 KHZ0.25V0.80560HPK1012-821K-S08201.0 KHZ0.25V0.95560HPK10...
