供应射频连接器BNC，各种材质的射频连接器
| 价 格： | 0.10 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | Logee | |
| 型号/规格： | BNC-02 | |
| 应用范围： | 电缆 | |
| 种类： | 线对线 | |
| 接口类型： | BNC | |
| 支持卡数： | 多合一 | |
| 形状： | 圆形 | |
| 制作工艺： | 冷压 | |
| 特性： | 防爆 | |
| 工作频率： | 高频 | |
| 接触件材质： | BRASS | |
| 绝缘体材质： | 铁氟龙 | |
| 芯数： | 1 | |
| 针数： | 1 | |
| 线长： | 按客户要求（mm） |
ELECTRICAL
Impedance: 750hm
Frequency Range: 0-1GHZ
Working Voltage: 500 VRMS Max.
Dielectric Withstanding Voltage: 1500 VRMS min
VSWR:
Straight: 1.5max
Right Angle: 1.7Max
Contact Resistance:
Center contact: 50 Milliohms Max.
Outer contact: 3 Milliohms Max.
Insulator Resistance: 5000 Megohms min
MATERIAL
Body, metal Parts: Brass,Nickel or Gold plated
Center Contacts:
Plug: Brass, Nickel,Gold or Silver per requirement
Jack: Beryllium copper or Phosphor Bronze or Brass, Nickel,Gold or Silver per requirement
Insulators: Teflon, POM, PP , None
Crimp ferrules: Annealed copper, Nickel or Gold Per requirement
0755-27944519-8002
liliang@logeetech.com.cn 李先生
- 所属城市：广东 广州
- [联系时请说明来自维库仪器仪表网]
- 联系人： 聂华
- 电话：86 755 27944519/27944529
- 传真：8675527678045
- 手机：
- QQ ：

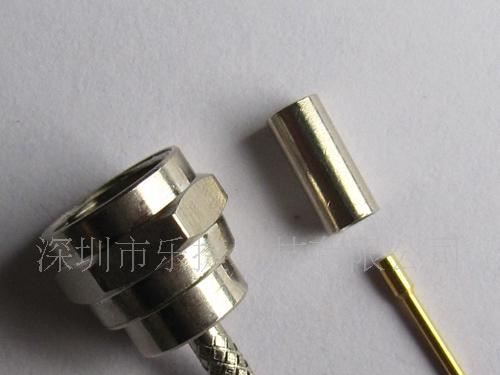

供应射频连接器F头
信息内容：ELECTRICAL Impedance: 750hmFrequency Range: 0-1GHZWorking Voltage: 500 VRMS Max.Dielectric Withstanding Voltage: 1500 VRMS minVSWR: Straight: 1.5max Right Angle: 1.7MaxContact Resistance: Center contact: 50 Milliohms Max. Outer contact: 3 Milliohms Max.Insulator Resistance: 5000 Megohms minMATERIALBody, metal Parts: Brass,Nickel or Gold platedCenter Contacts: Plug: Brass, Nickel,Gold or Silver per requirement Jack: Beryllium copper or Phosphor Bronze or Brass, Nickel,Gold or Silver per requirementInsulators: Teflon, POM, PP , NoneCrimp ferrules: Annealed copper, Nickel or Gold Per requirement"

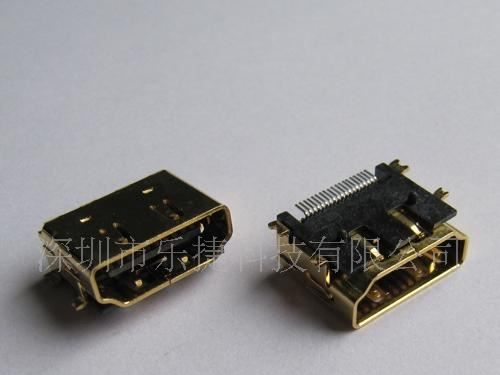

供应HDMI母座贴片式连接器、各种HDMI连接器
