1608系列片式贴片电感MGFI1608C1R8
| 价 格： | 0.01 | |
| 应用范围： | 滤波 | |
| 种类： | 电流互感器 | |
| 品牌/商标： | MOTTO/迈翔 | |
| 型号/规格： | MGFI1608C1R8 | |
| 封装形式： | 贴片电感 | |
| 绕线形式： | 单层间绕式 | |
| 导磁体性质： | 磁芯 | |
| 磁芯形状： | 柱形 | |
| 工作频率： | 低频 | |
| 安装方式： | 贴片式 | |
| 骨架材料： | 聚苯乙烯 | |
| 品质因数Q： | 35 | |
| 电感量： | 1.8（mH） | |
| 额定电流： | 0.95（mA） | |
| 分布电容： | 0（F） |
1608系列片式贴片电感MGFI1608C1R8
Motto MGFI1608C1R8, Various high power inductors are superior to be high saturation for surface mounting.
Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc.
dzsc/18/9270/18927067.jpg
Part No | L (uH) | Q/MIN | I,QTEST Freq(MHz) | SRF(MHZ)/MIN | RDC()MAX | Ir(mA)/MAX |
| 1.Inductance tested at 100KHZ,0.1V agilent / HP8753D network analyzer
Packing; Reel size:16mm Quantity:1000pcs/Reel |
MGFI1608C1R2 | 1.2 | 35 | 10 | 110 | 0.80 | 25 | ||
MGFI1608C1R5 | 1.5 | 35 | 10 | 105 | 0.80 | 25 | ||
MGFI1608C1R8 | 1.8 | 35 | 10 | 95 | 0.95 | 25 | ||
MGFI1608C2R2 | 2.2 | 35 | 10 | 90 | 1.15 | 15 | ||
MGFI1608C2R7 | 2.7 | 35 | 10 | 80 | 1.35 | 15 | ||
MGFI1608C3R3 | 3.3 | 35 | 10 | 70 | 1.55 | 15 | ||
MGFI1608C3R9 | 3.9 | 35 | 10 | 60 | 1.70 | 15 | ||
MGFI1608C4R7 | 4.7 | 35 | 10 | 50 | 2.10 | 15 | ||
MGFI1608D5R6 | 5.6 | 35 | 4 | 45 | 1.55 | 5 | ||
MGFI1608D6R8 | 6.8 | 35 | 4 | 40 | 1.70 | 5 | ||
MGFI1608D8R2 | 8.2 | 35 | 4 | 35 | 2.10 | 4 | ||
MGFI1608D100 | 10.0 | 35 | 2 | 33 | 2.55 | 3 | ||
MGFI1608D120 | 12.0 | 35 | 2 | 22 | 2.75 | 3 | ||
MGFI1608E150 | 15.0 | 20 | 1 | 20 | 1.70 | 1 | ||
MGFI1608E180 | 18.0 | 20 | 1 | 18 | 1.85 | 1 | ||
MGFI1608E220 | 22.0 | 20 | 1 | 15 | 2.10 | 1 | ||
MGFI1608E270 | 27.0 | 20 | 1 | 12 | 2.75 | 1 |
Special inquiries besides the above common used types can be met on your requirement.
联系方式 | |||||||
公司: | 深圳市迈翔科技有限公司 | ||||||
网址： | http://www.mottotech.com | ||||||
客服： | 吴锦中 | QQ号： | 676279033 | 手机： | 13421804907 | 邮箱: | wjzmotto@163.com |
客服： | 胡伟 | QQ号： | 743330266 | 手机： | 13421804920 | 邮箱: | hwmotto@126.com |
客服： | 王星 | QQ号： | 448587907 | 手机： | 13632936972 | 邮箱: | szmotto@gmail.com |
电话: | 0755-28146395 27185239 27185329 | 传真： | 0755-28146095 61624574 | ||||
地址: | 中国深圳市宝安区龙华镇三联工业区联弓路九号 | ||||||
邮编: | 518109 | ||||||
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 吴伟
- 电话：755-28146395
- 传真：755-28146395
- 手机：
- QQ ：

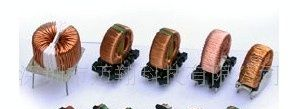

供应磁环电感T4408
信息内容：供应磁环电感T4408Motto , Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. Special inquiries beside102s the above common used types can be met on your requirement.联系方式公司:深圳市迈翔科技有限公司网址：http://www.mottotech.com客服：吴锦中QQ号：676279033手机：13421804907邮箱:wjzmotto@163.com客服：胡伟QQ号：743330266手机：13421804920邮箱:hwmotto@126.com客服：王星QQ号：448587907手机：13632936972邮箱:szmotto@gmail.com电话:0755-28146395 27185239 27185329传真：0755-28146095 61624574地址:中国深圳市宝安区龙华镇三联工业区联弓路九号邮编:518109
供应CD32 CD43 CD54 CD75 CD105系列 电感 功率电感 贴片电感

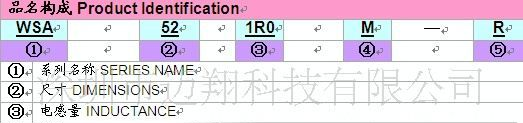

信息内容：供应CD工型贴片功率电感CD52-33UHMotto , Various high power inductors are superior to be high saturation for surface mounting.Mainly used by power supply for VRT, OA equipment digital camera, LCD television set notebook PC, partable communication equipments, DC/DC converters, etc. dzsc/18/9284/18928481.jpgdzsc/18/9284/18928481.jpgPart NoL(uH)DCR max(mΩ)IDC max(A)Test Freq.(Hz) 1.Inductance tested at 2.52MHZ,0.1V2.Inductance drip=10% typ. at rated isat3.△T=40℃rise typ. at irms4.Operationg temperature range -40℃to 125℃5.Electrical specifitions at 25℃ Packing;Reel size:16mmQuantity:1000pcs/ReelCD52-2R2M2.2703.50100KHZCD52-2R7M2.7803.20100KHZCD52-3R3M3.31002.70100KHZCD52-3R9M3.91202.40100KHZCD52-4R7M4.71402.00100KHZCD52-5R6M5.61501.80100KHZCD52-6R8M6.81601.50100KHZCD52-8R2M8.21701.40100KHZCD52-100M10.02001.30100KHZCD52-120M12.02301.10100KHZCD52-150M15.02501.05100KHZCD52-180M183001.00100KHZCD52-220M223500.90100KHZCD52-270M274000.85100KHZCD52-330M335000.75100KHZCD5...
