USB 连接器
| 价 格： | 0.10 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | IEEE 1394 4P | |
| 应用范围： | 电脑 | |
| 种类： | USB 连接器 | |
| 接口类型： | USB |
IEEE 1394 4P/F SMT TYPE
Electrical:
Voltage-max[volts]:5V
Current-max[amps]:0.5A
Contaoct Eesistance[ohms]:50m Ω max
Dielectric Withstanding Voltage:100V AC
Insulation Eresistance[ohms]:100MΩ min
Mechanical:
Moting:35N max
Withdrawal Force: 10N min
Dural ility:1500 cycles min
Physical:
Insulator:LCP UL 94V-0
Contact:Phosphor Bronze
Metal Shell:Spcc
Copper Flake:Capper Alloy
Plating: Gold Flash/Gold 30um
Remperature Range:-25°C to 85°C
"
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：
5-IN-1 Combo Connector
信息内容：Current Rating : 3AMPOperation Temperature :-40°C to 105°CContact Resistance :20mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 1000V Insulator Material :Polyester(UL94V-0) Standard:PBTContact Material :BrassContact plating :Au or Sn Over 50u″ Ni

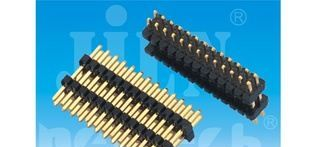

排针连接器
信息内容：1.00mm Board Spacer Dual Row Straight Current Rating : 0.75AMPOperation Temperature :-40°C to 105°CContact Resistance :30mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 500V Insulator Material :High Temperature Thermoplastic(UL94V-0) Contact Material :Phosphor BronzeContact plating :Au over 50u″ Ni"
