DAIN 岱恩全系列X1、X2 全系列安规电容 0.1 0.22 0.33 0.47 1.0

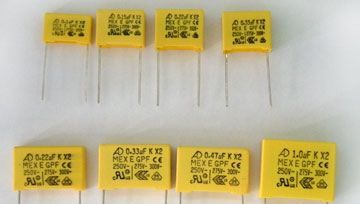

Metallized Film Capacitor - MEX(X2 Capacitor)
dzsc/18/9150/18915008.jpg	dzsc/18/9150/18915008.jpg

Introduction:

Safety Capacitors : High Stability
Non-inductive.
Self-healing characteristics.
Plastic case, epoxy resin filled, box made of solvent resistant material.
Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.
Tested Standard：IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2
Safety Approved (UL. VDE. ENEC. CE)
The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin encapsulation in the in the plastic shell, fire-retardant performance reaches UL94V-0 grade.

Specifications:

Operating temperature: -40°C ~ 85°C
Capacitance range: 0.0033~10uF
Capacitance tolerance±5%(J), ± 10%(K)
Rated voltage: 250VAC, 275VAC, 300VAC
Dissipation factor:0.1%MAX AT 1KHz, 25℃
Voltage proof: 2,000VDC 1Sec (20℃)
Insulation resistance:
>30,000MΩ (C≦0.33uF)
>10,000MΩ/ uF (C＞0.33uF) AT 25℃
Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85℃ chamber. During this period, 1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≦10% , ΔDF≦0.04%, ΔIR≧50% of the specified value.

Dimension:

Unit : mm
