厂家供应 JST PHD2.0 2*13P 端子线束连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 2*13P | |
| 种类： | 线束/连接线/端子线 | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | N（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT2004H2*13Pharness | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PA46 | |
| 品牌： | SCT | |
| 支持卡数： | 多合一 | |
| 芯数： | 2*13P | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
SCT2004 (JST PHD2.0)
Current Rating: 3A AC, DC
Voltage Rating: 250V AC, DC
Temperature Range: -25 deg C ~ 85 deg C
Contact Resistance: 10m Omega Max.
Insulation Resistance: 1,000M Omega Min.
Withstanding Voltage: 800V AC/minute
Contact SCT for details.
A2004-T ( Crimp Terminal )
Wire Range : AWG#22~#28
Insulation O.D. : 1.50mm ( Max.)
Used in SCT A2004 Series Housing
A2004H-2XNP ( Dual Row Housing)
Mates With SCT. A2004 Series Wafer
A2004WV-2XNP ( Vertical Angle Dual Row Wafer DIP )
Mates With SCT A2004 Series Housing
A2004WR-2XNP (Right Angle Dual Row Wafer DIP )
Mates With SCT A2004 Series Housing
A2004HA-2XNP (Dual Row Housing Lock )
Mates With SCT A2004 Series Wafer for Lock
"A2004WVA-2XNP ( Vertical Angle Wafer Lock DIP )
Mates With SCT A2002 Series Housing for Lock
A2004WRA-2XNP (Right Angle Wafer Lock DIP )
ates With SCT A2004 Series Housing for Lock
dzsc/18/9074/18907472.jpg
dzsc/18/9074/18907472.jpg
dzsc/18/9074/18907472.jpg
dzsc/18/9074/18907472.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：
供应2.54 2*40P 双排弯排针连接器
信息内容：2.54 mm pin header single row double plastic (PH2.542H2.54-ST-1*NP)SPECIFICATIONS Current rating:3AmpsInsulator resistance:5000 megohms Min.Dielectric withstanding:AC 500 VOperating Temperature: -40~ 105%%dContact material:brss/phosphor bronzeInsulator material:standard P.B.TFinish: gold flash or Tin plated or Duplex platingContact resistance:20M ohm maxPIN : SQ:0.64mm dzsc/18/9078/18907879.jpgdzsc/18/9078/18907879.jpg"

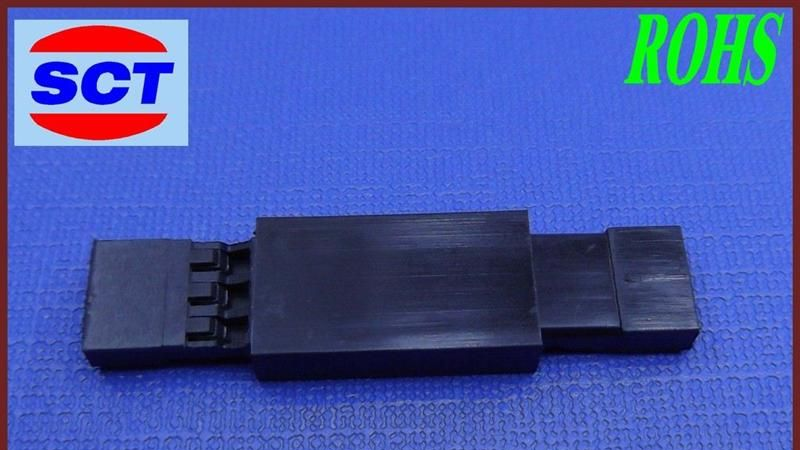

厂家供应 杜邦2.54 H8 3P空接连接器
信息内容：杜邦2.54 3P空接外壳连接器 Specifications :Current Rating : 3A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 1000V AC/minute*Contact SCT2546 for detals*HousingPart No:SCT2546FH/MH/FD- Poles:03P.Material:Nylon66 UL94V2Packing Q'TY:1000pcs/bagMates With SCT2546MT/FT Series Terminal TerminalPart No:SCT2546MT/FTThickness:0.20mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#22-#28Insulation O.D. : 1.40mm ( Max.)Q'TY:10,000pcs/reelMates With SCT2546FH/MH Series Housingdzsc/18/9080/18908001.jpgdzsc/18/9080/18908001.jpg
