转换插座TSOP48 老化座 CTP048-A137 CTP054 CTP088
| 价 格： | 43.00 | |
| 接口类型： | TSOP | |
| 接触件材质： | 镀金 | |
| 针数： | 48 | |
| 种类： | 插头/插座 | |
| 加工定制： | 是 | |
| 应用范围： | 集成电路IC | |
| 型号/规格： | CTP048-A137 | |
| 工作频率： | 高频 | |
| 特性： | 阻火/阻燃 | |
| 品牌/商标： | SENSATA | |
| 属性： | 属性值 | |
| 制作工艺： | 注塑 | |
| 芯数： | 48 |
| Sensata Device Device Code | IC Package Width | Length | IC Outside Width | Length | IC Lead Pitch | IC Type | IC Lead Type |
| CTP2024001 | 14.4 | 6 | 16.45 | 6 | 0.5 | T | Straight |
| CTP032-002 | 18.4 | 8 | 20.6 | 8 | 0.5 | T | Straight |
| CTP032-002A | 18.4 | 8 | 20 | 8 | 0.5 | T | Live |
| CTP026-003A | 7.62 | 17.14 | 9.67 | 17.14 | 1.27 | U | Straight |
| CTP026-003B | 7.62 | 17.14 | 9.22 | 17.14 | 1.27 | U | Live |
| CTP026-003FB | 7.62 | 17.14 | 9.22 | 17.14 | 1.27 | U | Live |
| CTP2026003A | 7.62 | 17.14 | 9.67 | 17.14 | 1.27 | U | Straight |
| CTP2026003B | 7.62 | 17.14 | 9.22 | 17.14 | 1.27 | U | Live |
| CTP2026003D | 7.6 | 17.2 | 9.2 | 17.2 | 1.27 | U | Live |
| CTP2426003A | 7.62 | 17.14 | 9.67 | 17.14 | 1.27 | U | Straight |
| CTP2426003B | 7.62 | 17.14 | 9.22 | 17.14 | 1.27 | U | Live |
| CTP2426003FB | 7.62 | 17.14 | 9.22 | 17.14 | 1.27 | U | Live |
| CTP048-004 | 16.4 | 12 | 18 | 12 | 0.5 | T | Dead |
| CTP048-004A | 16.4 | 12 | 18.57 | 12 | 0.5 | T | Straight |
| CTP048-004B | 16.4 | 12 | 18 | 12 | 0.5 | T | Live |
| CTP048-004C | 16.4 | 12 | 18.45 | 12 | 0.5 | T | Straight |
| CTP048-004D | 16.4 | 12 | 18 | 12 | 0.5 | T | Live |
| CTP028-005 | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Dead |
| CTP028-005A | 10.16 | 18.41 | 12.21 | 18.41 | 1.27 | U | Straight |
| CTP028-005B | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP028-005D | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP028-005FB | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP2428005A | 10.16 | 18.41 | 12.21 | 18.41 | 1.27 | U | Straight |
| CTP2428005D | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP044-006 | 10.16 | 18.41 | 11.76 | 18.41 | 0.8 | U | Dead |
| CTP044-006A | 10.16 | 18.41 | 12.21 | 18.41 | 0.8 | U | Straight |
| CTP044-006B | 10.16 | 18.41 | 11.76 | 18.41 | 0.8 | U | Live |
| CTP044-006D | 10.16 | 18.41 | 11.76 | 18.41 | 0.8 | T | Live |
| CTP032-007A | 18.4 | 8 | 20.48 | 8 | 0.5 | T | Straight |
| CTP032-007B | 18.4 | 8 | 20 | 8 | 0.5 | T | Live |
| CTP032-007D | 18.4 | 8 | 20 | 8 | 0.5 | T | Live |
| CTP032-007EB | 18.4 | 8 | 20 | 8 | 0.5 | T | Live |
| CTP032-007ES | 18.4 | 8 | 20.6 | 8 | 0.5 | T | Straight |
| CTP032-007-R | 18.4 | 8 | 20 | 8 | 0.5 | T | Dead |
| CTP042-008 | 7.62 | 14.6 | 9.22 | 14.6 | 0.65 | U | Dead |
| CTP042-008A | 7.62 | 14.6 | 9.82 | 14.6 | 0.65 | U | Straight |
| CTP042-008B | 7.62 | 14.6 | 9.22 | 14.6 | 0.65 | U | Live |
| CTP032-009 | 10.16 | 20.95 | 11.76 | 20.95 | 1.27 | U | Dead |
| CTP032-009A | 10.16 | 20.95 | 12.36 | 20.95 | 1.27 | U | Straight |
| CTP032-009B | 10.16 | 20.95 | 11.76 | 20.95 | 1.27 | U | Live |
| CTP032-009DB | 10.2 | 21 | 11.8 | 21 | 1.27 | U | Live |
| CTP032-009DS | 10.2 | 21 | 12.48 | 21 | 1.27 | U | Straight |
| CTP032-009EB | 10.16 | 20.95 | 11.76 | 20.95 | 1.27 | U | Live |
| CTP032-009FB | 10.16 | 20.95 | 11.76 | 20.95 | 1.27 | U | Live |
| CTP032-009GB | 10.16 | 20.955 | 11.76 | 20.955 | 1.27 | U | Live |
| CTP028-010 | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Dead |
| CTP028-010A | 10.16 | 18.41 | 12.36 | 10.16 | 1.27 | U | Straight |
| CTP028-010B | - - - | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP028-010DB | - - - | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP028-010EB | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
| CTP2428010 | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Dead |
| CTP2428010A | 10.16 | 18.41 | 12.36 | 10.16 | 1.27 | U | Straight |
| CTP2428010B | 10.16 | 18.41 | 11.76 | 18.41 | 1.27 | U | Live |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 邵小姐
- 电话：0755-61303956
- 传真：-
- 手机：15016728737
- QQ ：
QFN72测试插座QFN-72BT-0.4-01 转换座 老化座 ENPLAS恩博斯
信息内容：dzsc/18/9694/18969491.jpgdzsc/18/9694/18969491.jpgdzsc/18/9694/18969491.jpg 因为涉及到的厂家及规格太多,在此不能一一列举,您可以拨打我们的电话查询：15012719132 QQ:1092327898.1、本着“诚信、客户至上”的原则，所售商品均保证品质。2、如对商品有疑问，请及时留言，我们会时间给您详细的答复 供应各类品牌编程器、烧录器、IC测试插座、转换座、老化座、适配器等，封装形式有：DIP转TSOP/TSSOP/SSOP/SOPDIP转QFP/PQFP/TQFP/LQFPDIP转PLCC/LCCDIP转BGA/FBGA/LBGADIP转PSOPDIP转QFN/DFN等等。欢迎来电洽谈联络人：刘小姐手机：15012719132 QQ:1092327898

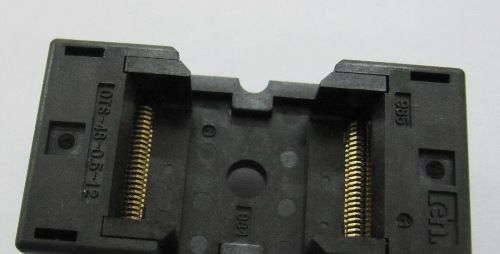

IC老化插座/转换卡座/测试插座 OTS-48-0.5-12/014 ENPLAS
信息内容：dzsc/19/1124/19112413.jpgdzsc/19/1124/19112413.jpg如需插座规格尺寸图纸，请同我们联系。因涉及到的厂家及规格太多,在此不能一一列举,您可以拨打我们的电话查询：15016728737.QQ:2415499664主要经营1.烧录器、编程器( DeviceProgrammer )：XELTEK、HI-LO、TOP、思泰佳、BP、COMPASS、崇贸、DATA IO、ELNEC、DATAMAN、LEAP、NEC、河汰、ST、等近20多种品牌150多种型号研发型、产量型、通用型、全自动芯片烧录设备。2、各品牌IC测试座（socket/adapter）：YAMAICHI,ENPLAS,WELLS-CTI,3M/Textool ,SENSATA ,CCF,Aries,MERITEC,TI,PLASTRONICS，AdvancedInterconnections等品牌，封装有：DIP、SDIP、PLCC、JLCC、SOIC、QFP、QFN、TQFP、PQFP、VQFP、TSOP、SOP、TSOPII、PSOP、TSSOP、SON、EBGA、FBGA、VFBGA、μBGA、CSP、SCSP,MLF等3、各知名品牌厂家集成电路芯片：ALTERA、ATMEL、MICROCHIP、PHILIPS、SST、ST、XILINX、TI等。4、单片机系列开发学习板（51学习板、AVR学习板、MSP430学习板、PIC学习板、DSP开发板、ARM开发板、CPLD开发板）5、芯片查找，代客户烧录芯片，芯片解密；6、仿真器(开发工具）：AVR仿真器、51仿真器、DSP仿真器、ARM仿真器"
