供应JST-SPN、B3965胶壳、B3965端子
| 价 格： | 1.00 | |
| 品牌/商标： | HR灿达/鸿儒 | |
| 型号/规格： | B3965 | |
| 应用范围： | 集成电路IC | |
| 种类： | 胶壳(housing) | |
| 接口类型： | DC/DC | |
| 支持卡数： | 多合一 | |
| 读卡类型： | MS Pro Duo | |
| 形状： | 矩形 | |
| 制作工艺： | 熔接 | |
| 特性： | 防潮 | |
| 接触件材质： | UL-V2 | |
| 绝缘体材质： | V2 | |
| 芯数： | 20 | |
| 针数： | 20 | |
| 线长： | 1000（mm） |
dzsc/18/8997/18899792.jpg
產品編號: B3965 Series | |
3.96mm Pitch Terminal / Vertical Housing 連接器 ( B3965 Series)規格 :Current Rating: 7A AC, DC Voltage Rating: 250V AC, DC Temperature Range: -25 deg C ~ 85 deg C Contact Resistance: 10m Omega Max. Insulation Resistance: 1,000M Omega Min. Withstanding Voltage: 1,500V AC/minute Contact H.R for details. B3965V-T( Vertical Angle Crimp Terminal ) Wire Range : AWG#18~#22 Insulation O.D. : 3.00mm ( Max.) Used in H.R B3965HV Series Housing B3965HV-XP( Vertical Angle Housing ) Suitable H.R. B3965V Series Terminal B3965HV-F-XP( Vertical Angle Housing-Polarizing Peg ) Suitable H.R. B3965V Series Terminal |
dzsc/18/8997/18899792.jpg
- 所属城市：广东 东莞
- [联系时请说明来自维库仪器仪表网]
- 联系人： 崔本锋
- 电话：0769-83938562
- 传真：0769-83938562
- 手机：
- QQ ：
供应0.8MM刺破式/连接器

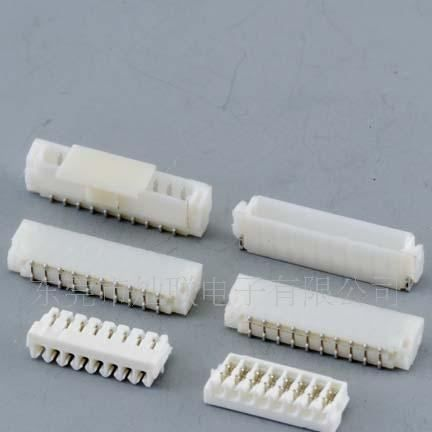

信息内容：dzsc/18/9391/18939198.jpg產品編號: A0800 Series 0.80mm Pitch Terminal / Housing / Wafer SMT 連接器 ( A0800 Series)規格 :Current Rating: 0.5A AC, DCVoltage Rating: 30V DCTemperature Range: -25 deg C ~ 85 deg CContact Resistance: 20m Omega Max.Insulation Resistance: 100M Omega Min.Withstanding Voltage: 200V AC/minuteContact H.R for details.A0800HI-XP( IDC Housing )Applicable Wire : AWG#32Insulation O.D. : 0.38mmMates ith H.R A0800 Series WaferA0800WV-S-XP( Vertical Angle Wafer SMT TYPE )Mates With H.R A0800 Series HousingA0800WR-S-XP( Right Angle Wafer SMT TYPE )Mates With H.R A0800 Series Housingdzsc/18/9391/18939198.jpg
供应杜邦单排2.0mm连接器排针
信息内容：dzsc/18/9396/18939651.jpg品編號: A2015 Series 2.00mm Pitch / Terminal / Housing / Pin Header SMT , DIP 連接器 ( A2015 Series)規格 :Current Rating: 2A AC, DCVoltage Rating: 250V AC, DCTemperature Range: -25 deg C ~ 85 deg CContact Resistance: 20m Omega Max.Insulation Resistance: 1,000M Omega Min.Withstanding Voltage: 1,000V AC/minuteContact H.R for details.A2015-T( Crimp Terminal )Wire Range : AWG#26~#30Insulation O.D. : 1.40mm ( Max.)Used in H.R A2015 Series HousingA2015H-XP( Single Row Housing)Mates With H.R. A2015 Series Pin HeaderA2015WV-XP( Vertical Angle Single Row Wafer DIP )Mates With H.R. A2015 Series HousingA2015WV-S-XP( Vertical Angle Single Row Wafer SMT )Mates With H.R. A2015 Series HousingA2015WVA-XP( Vertical Angle Single Row Wafer DIP )Mates With H.R. A2015 Series HousingA2015WVA-S-XP( Vertical Angle Single Row Wafer SMT )Mates With H.R. A2015 Series HousingA2015WR-XP(Right Angle Single Row Wafer DIP )Mates With H.R. A2015 Series HousingA2015WRA-XP(Right Angle Singl...
