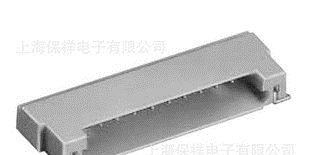

HiroseHRS广濑基板对电缆连接器 HIF12-80DT-1.27R(71)
| 价 格： | 面议 | |
| 接口类型： | 1394 | |
| 接触件材质： | 详见附页 | |
| 针数： | 详见附页 | |
| 种类： | FFC/FPC | |
| 加工定制： | 否 | |
| 形状： | 条形 | |
| 线长： | 详见附页（mm） | |
| 应用范围： | 其他 | |
| 型号： | HIF12-80DT-1.27R(71) | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | 详见附页 | |
| 品牌： | OMRON/欧姆龙 | |
| 支持卡数： | 单卡 | |
| 芯数： | 详见附页 | |
| 读卡类型： | CF | |
| 制作工艺： | 冷压 |
HIF12 Series Features
● This connector, which is directly mounted on the board, can insulate and displace the 1.27mm pitch flat cable.
● Using the 1.27mm pitch flat cable, this connector can be combined with HIF2E, HIF3B, HIF5, and HIF6, etc.
● The applicable cable is UL2651 AWG#28 flat cable.
| -Specifications | ||||||||||||||||||||
|
HIF12-100DT-1.27R(71)
HIF12-34DT-1.27R(71)
HIF12-40DT-1.27R(71)
HIF12-50DT-1.27R(71)
HIF12-52DT-1.27R(71)
HIF12-60DT-1.27R(71)
HIF12-68DT-1.27R(71)
HIF12-80DT-1.27R(71)
