厂家供应 JST XA2.5 2P 带扣连接器
| 价 格： | 1.00 | |
| 接口类型： | AC/DC | |
| 接触件材质： | BRASS | |
| 针数： | 2 | |
| 种类： | 胶壳(housing) | |
| 加工定制： | 是 | |
| 形状： | 条形 | |
| 线长： | 客户自定（mm） | |
| 应用范围： | PCB | |
| 型号： | SCT2502H-02P | |
| 工作频率： | 低频 | |
| 特性： | 防潮 | |
| 绝缘体材质： | PA66 | |
| 品牌： | SCT | |
| 支持卡数： | 单卡 | |
| 芯数： | 2 | |
| 读卡类型： | CF | |
| 制作工艺： | 注塑 |
JST XA2.5 2P 带扣连接器
Specifications :
Current Rating : 3A AC,DC
Voltage Rating : 250V AC,DC
Temperature Range : -25 deg C ~ 85 deg C
Contact Resistance : 20m Omega Max.
Insulation Resistance : 1000M Omega Min.
Withstanding Voltage : 1000V AC/minute
*Contact SCT2502 for detals*
Housing
Part No:SCT2502H-
Poles:2-16P.
Material:Nylon66 UL94V0 or UL94V2
Packing Q'TY:1000pcs/bag
Mates With SCT2502T Series Terminal
Terminal
Part No:SCT2502T
Thickness:0.20mm
Material:Phosphor bronze/ Brass
Finish:Tin Plated
Wire Range:AWG#22-#28
Insulation O.D. : 1.40mm ( Max.)
Q'TY:8,000pcs/reel
Mates With SCT2502H- Series Housing
Wafer (DIP Type)
Part No:SCT2502WV/WR-NP
Poles:2-16P
Material:Nylon66 UL94V-0 or UL94V2
Packing Q'TY:1000pcs/box
Mates With SCT2501H- Series Single Row Housing
dzsc/18/8930/18893062.jpg
dzsc/18/8930/18893062.jpg
dzsc/18/8930/18893062.jpg
dzsc/18/8930/18893062.jpg
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 刘金钰
- 电话：0755-27367129
- 传真：0755-27367129
- 手机：
- QQ ：

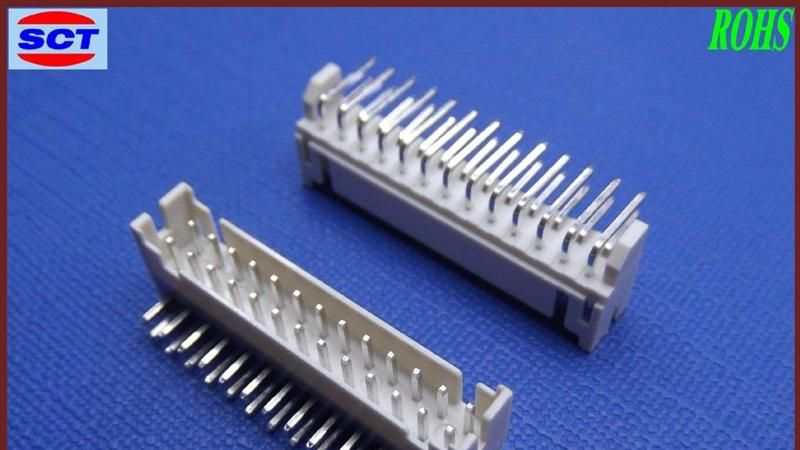

厂家供应 JST PHD2.0 2*8P+SAN2.0 8P 180度 端子线束连接器
信息内容：SCT2003(JST SAN2.0)(HR2011)Current Rating: 2A AC, DCVoltage Rating: 250V AC, DCTemperature Range: -25 deg C ~ 85 deg CContact Resistance: 20m Omega Max.Insulation Resistance: 1,000M Omega Min.Withstanding Voltage: 800V AC/minuteContact SCT for details.B2011V-T ( Vertical Angle Crimp Terminal )Wire Range : AWG#24~#30Insulation O.D. : 1.30mm ( Max.)Used in SCT B2011HV Series HousingB2011R-T ( Right Angle Crimp Terminal )Wire Range : AWG#24~#30Insulation O.D. : 1.30mm ( Max.)Used in SCT B2011HR Series Housing"B2011HV-XP ( Vertical Angle Housing )Suitable SCT B2011V Series TerminalB2011HR-XP ( Right Angle Housing )Suitable SCT. B2011R Series Terminaldzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpgdzsc/18/8931/18893182.jpg"

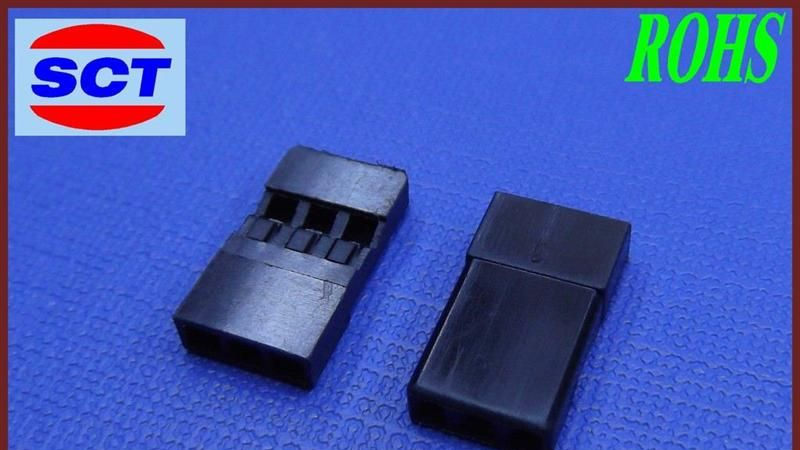

厂家供应 杜邦2.54 公端子连接器
信息内容：杜邦2.54 公端子连接器 Specifications :Current Rating : 3A AC,DCVoltage Rating : 250V AC,DCTemperature Range : -25 deg C ~ 85 deg CContact Resistance : 20m Omega Max.Insulation Resistance : 1000M Omega Min.Withstanding Voltage : 1000V AC/minute*Contact SCT2546 for detals*HousingPart No:SCT2546FH/MH/FD- Poles:03P.Material:Nylon66 UL94V2Packing Q'TY:1000pcs/bagMates With SCT2546MT/FT Series Terminal TerminalPart No:SCT2546MT/FTThickness:0.20mmMaterial:Phosphor bronze/ BrassFinish:Tin PlatedWire Range:AWG#22-#28Insulation O.D. : 1.40mm ( Max.)Q'TY:10,000pcs/reelMates With SCT2546FH/MH Series Housingdzsc/18/8932/18893246.jpgdzsc/18/8932/18893246.jpg
