连接器 2.0排母
| 价 格： | 0.10 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | 2.00mm | |
| 应用范围： | 电脑 | |
| 种类： | 排针/排母/排线 | |
| 接口类型： | AC/DC |

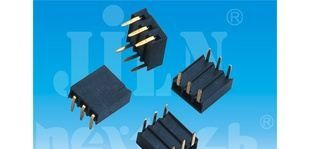

2.00mm Female Header Dual Row Straddle
Current Rating : 1.5AMP
Operation Temperature :-40°C to 105°C
Contact Resistance :20mΩ Max
Insulation Resistance :1000MΩ Min
Withstanding Voltage :AC 500V
Insulator Material :Polyester(UL94V-0)
Standard:Nylon -66
Contact Material :Phosphor Bronze
Contact plating :Au or Sn Over 50u″ Ni
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 王坚波
- 电话：0755-27483253
- 传真：0755-27483253
- 手机：
- QQ ：
2.54mm Female Header Single Row Side Entry
信息内容：Current Rating : 3AMPOperation Temperature :-40°C to 105°CContact Resistance :20mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 1000V Insulator Material :Polyester(UL94V-0) Standard: Nylon-6TContact Material : Phosphor BronzeContact plating :Au or Sn Over 50u″ Ni

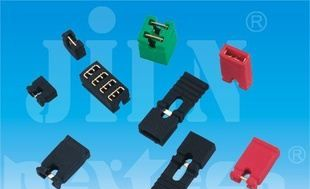

2.54mm 短路帽系列连接器
信息内容：2.54mm Mini Jumper Current Rating : 3AMPOperation Temperature :-40°C to 105°CContact Resistance :20mΩ MaxInsulation Resistance :1000MΩ MinWithstanding Voltage :AC 1000V Insulator Material :Polyester(UL94V-0) Standard:PBTContact Material :Phosphor BronzeContact plating :Au or Sn Over 50u″ Ni
