三极管S9013，TO-92
| 价 格： | 0.04 | |
| 品牌/商标： | 国产 | |
| 型号/规格： | S9013 | |
| 应用范围： | 放大 | |
| 功率特性： | 中功率 | |
| 频率特性： | 低频 | |
| 极性： | PNP型 | |
| 结构： | 点接触型 | |
| 材料： | 硅(Si) | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 | |
| 营销方式： | 厂家直销 | |
| 产品性质： | 热销 |
厂家直销，三极管9013，TO-92，欢迎来电咨询。
dzsc/18/8630/18863021.jpg
ELECTRICAL CHARACTERISTICS(Tamb=25℃unless otherwise specified)
Parameter | Symbol | Test conditions | MIN | TYP | MAX | UNIT |
Collector-base breakdown voltage | V(BR)CBO | lc=100μA, lE=0 | 40 |
|
| V |
Collector-emitter breakdown voltage | V(BR)CEO | lc=1mA, lB=0 | 25 |
|
| V |
Emitter-base breakdown voltage | V(BR)EBO | lE=100μA,lc=0 | 5 |
|
| V |
Collector cut-off current | lCBO | VCB=40V, lE=0 |
|
| 0.1 | μA |
Collector cut-off current | lCEO | VCE=20V, lE=0 |
|
| 1 | μA |
Emitter cut-off current | lEBO | VEB=5V, lc=0 |
|
| 0.1 | μA |
DC current gain | hFE | VCE=1V,lc=50mA | 64 |
| 400 |
|
Collector-emitter saturation voltage | VCE(sat) | lc=500mA,lB=-50mA |
|
| 0.6 | V |
Base-emitter saturation voltage | VBE(sat) | lc=500mA,lB=50mA |
|
| 1.2 | V |
Transition frequency | fT | VCE=6V,lc=20mA f=30MHZ | 150 | 180 |
| MHZ |
CLASSIFICATION OF hFE(1)
Rank | D | E | F | G | H | I | J |
Range | 64-91 | 78-112 | 96-135 | 112-166 | 144-202 | 190-300 | 300-400 |
- 所属城市：广东 深圳
- [联系时请说明来自维库仪器仪表网]
- 联系人： 杨斌
- 电话：0755-29769280
- 传真：0755-29769280
- 手机：
- QQ ：
三极管9015，TO-92
信息内容：厂家直销，长期大量供应三极管S9015，To-92，欢迎来电咨询。dzsc/18/8642/18864228.jpgELECTRICAL CHARACTERISTICS(Tamb=25℃unless otherwise specified) ParameterSymbolTest conditionsMINTYPMAXUNITCollector-base breakdown voltageV(BR)CBOlc=-100μA, lE=0-50 VCollector-emitter breakdown voltageV(BR)CEOlc=-1mA, lB=0-45 VEmitter-base breakdown voltageV(BR)EBOlE=-100μA,lc=0-5 VCollector cut-off currentlCBOVCB=-50V, lB=0 -0.1μACollector cut-off currentlCEOVCE=-20V, lC=0 1μAEmitter cut-off currentlEBOVEB=-5V, lc=0 -0.1μADC current gainhFEVCE=-5V,lc=-1mA60 1000 Collector-emitter saturation voltageVCE(sat)lc=-100mA,lB=-5mA -0.3VTransition frequencyfTVCE=-5V,lc=-10mAf=30MHZ150 MHZ CLASSIFICATION OF hFE(1)RankABCDRange60-150100-300200-600400-1000

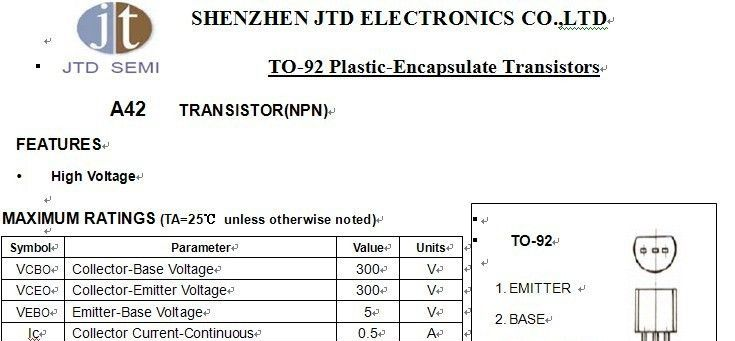

三极管A42，TO-92，EBC脚位
信息内容：厂家直销，长期大量供应三极管A42，TO-92，EBC脚位，欢迎来电咨询。dzsc/18/8649/18864985.jpg ParameterSymbolTest conditionsMINTYPMAXUNITCollector-base breakdown voltageV(BR)CBOlc=100μA, lE=0300 VCollector-emitter breakdown voltageV(BR)CEOlc=1mA, lB=0300 VEmitter-base breakdown voltageV(BR)EBOlE=100μA,lc=05 VCollector cut-off currentlCBOVCB=200V, lE=0 0.25μAEmitter cut-off currentlEBOVEB=4V, lc=0 0.1μADC current gainhFE(1)VCE=10V,lc=10mA80 250 Collector-emitter saturation voltageVCE(sat)lc=20mA,lB=2mA 0.5VBase-emitter saturation voltageVBE(sat)lc=20mA,lB=2mA 0.9VTransition frequencyfTVCE=5V,lc=10mA,f=30MHZ50 MHZ CLASSIFICATION OF hFE(1)RankAB1B2CRange80-100100-150150-200200-250
