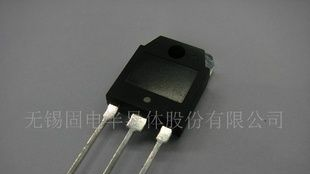

无锡固电ISC供应三极管2SD1046
| 价 格： | 4.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SD1046 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 120V(Min)
·Good Linearity of hFE
·High Current Capability
·Wide Area of Safe Operation
·Complement to Type 2SB816
APPLICATIONS
·For LF power amplifier, 50W output large power switching
applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 150 | V |
VCEO | Collector-Emitter Voltage | 120 | V |
VEBO | Emitter-Base Voltage | 6 | V |
IC | Collector Current-Continuous | 8 | A |
ICP | Collector Current-Pulse | 12 | A |
PC | Collector Power Dissipation @ TC=25℃ | 80 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -40~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= 50mA ; RBE=∞ | 120 |
| V | |
V(BR)CBO | Collector-BaseBreakdownVoltage | IC= 5mA; IE= 0 | 150 |
|
| V |
V(BR)EBO | Emitter-BaseBreakdownVoltage | IE= 5mA; IC= 0 | 6 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 5.0A; IB= 0.5A |
|
| 2.0 | V |
VBE(on) | Base-Emitter On Voltage | IC= 1A ; VCE= 5V |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB= 80V; IE= 0 |
|
| 100 | μA |
IEBO | Emitter Cutoff Current | VEB= 4V; IC= 0 |
|
| 100 | μA |
hFE-1 | DC Current Gain | IC= 1A; VCE= 5V | 60 |
| 200 |
|
hFE-2 | DC Current Gain | IC= 5A; VCE= 5V | 20 |
|
|
|
COB | Output Capacitance | IE= 0;VCB= 10V;ftest= 1.0MHz |
| 160 |
| pF |
fT | Current-Gain—Bandwidth Product | IC= 1A ; VCE= 5V |
| 15 |
| MHz |
Switching times | ||||||
ton | Turn-on Time | IC= 1A ,RL= 20Ω, IB1= -IB2= 0.1A,VCC=20V |
| 0.22 |
| μs |
tstg | Storage Time |
| 6.66 |
| μs | |
tf | Fall Time |
| 1.02 |
| μs | |
u hFE-1Classifications
D | E |
60-120 | 100-200 |
"
