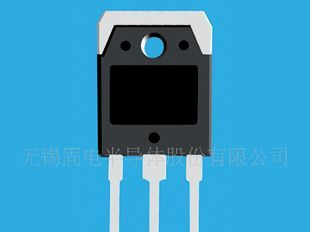

无锡固电ISC供应2SC3450三极管
| 价 格： | 7.00 | |
| 是否提供加工定制： | 是 | |
| 品牌/商标： | ISC | |
| 型号/规格： | 2SC3450 | |
| 应用范围： | 放大 | |
| 材料： | 硅(Si) | |
| 极性： | NPN型 | |
| 结构： | 平面型 | |
| 封装形式： | 直插型 | |
| 封装材料： | 塑料封装 |
DESCRIPTION
·High Collector-Emitter Breakdown Voltage-
: V(BR)CEO= 500V(Min)
·High Switching Speed
·Wide Area of Safe Operation
APPLICATIONS
·Designed for switching regulator and general purpose
applications.
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | 800 | V |
VCEO | Collector-Emitter Voltage | 500 | V |
VEBO | Emitter-Base voltage | 7 | V |
IC | Collector Current-Continuous | 10 | A |
ICM | Collector Current-Peak | 20 | A |
IB | Base Current-Continuous | 3 | A |
PC | Collector Power Dissipation @ TC=25℃ | 90 | W |
TJ | JunctionTemperature | 150 | ℃ |
Tstg | StorageTemperature Range | -55~150 | ℃ |
ELECTRICAL CHARACTERISTICS
TC=25℃unless otherwise specified
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CBO | Collector-Base Breakdown Voltage | IC= 1mA; IE= 0 | 800 |
| V | |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= 5mA; RBE=∞ | 500 |
|
| V |
V(BR)EBO | Emitter-Base Breakdown Voltage | IE= 1m A; IC= 0 | 7 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= 4A; IB= 0.8A |
|
| 1.0 | V |
VBE(sat) | Base-Emitter Saturation Voltage | IC= 4A; IB= 0.8A |
|
| 1.5 | V |
ICBO | Collector Cutoff Current | VCB= 500V; IE= 0 |
|
| 10 | μA |
IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 |
|
| 10 | μA |
hFE-1 | DC Current Gain | IC= 0.8A; VCE= 5V | 15 |
| 50 |
|
hFE-2 | DC Current Gain | IC= 4A; VCE= 5V | 8 |
|
|
|
fT | Current-Gain—Bandwidth Product | IC= 0.8A; VCE= 10V |
| 18 |
| MHz |
COB | Output Capacitance | IE= 0; VCB= 10V; ftest= 1.0MHz |
| 120 |
| pF |
Switching Times | ||||||
ton | Turn-on Time | IC= 5A, IB1= 1A; IB2= -2A RL= 40Ω; VCC= 200V |
|
| 0.5 | μs |
tstg | Storage Time |
|
| 3.0 | μs | |
tf | Fall Time |
|
| 0.3 | μs | |
u hFE-1Classifications
L | M | N |
15-30 | 20-40 | 30-50 |
"
- 所属城市：江苏 无锡
- [联系时请说明来自维库仪器仪表网]
- 联系人： 谈增琴
- 电话：0510-85346980
- 传真：0510-85346750
- 手机：
- QQ ：
无锡固电ISC供应2SC4140三极管
信息内容：DESCRIPTION ·High Collector-Emitter Breakdown Voltage-: V(BR)CEO= 400V(Min)·High Switching Speed·High Reliability APPLICATIONS·Designed for switching regulator and general purposeapplications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃)SYMBOLPARAMETERVALUEUNITVCBOCollector-Base Voltage 500VVCEOCollector-Emitter Voltage 400VVEBOEmitter-Base voltage10VICCollector Current-Continuous18AICMCollector Current-Peak36AIBBase Current-Continuous6APCCollector Power Dissipation@ TC=25℃130WTJJunctionTemperature150℃TstgStorageTemperature Range-55~150℃ ELECTRICAL CHARACTERISTICSTC=25℃unless otherwise specifiedSYMBOLPARAMETERCONDITIONSMINTYP.MAXUNITV(BR)CEOCollector-Emitter Breakdown VoltageIC= 25mA ; IB= 0400 VVCE(sat)Collector-Emitter Saturation VoltageIC= 10A; IB= 2A 0.5VVBE(sat)Base-Emitter Saturation VoltageIC= 10A; IB= 2A 1.3VICBOCollector Cutoff CurrentVCB= 500V ; IE= 0 0.1mAIEB...
